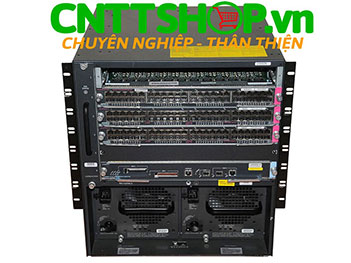

Cisco WS-C6506-E Catalyst 6506 Enhanced Chassis

Cisco Part Number              : WS-C6506-E
Cisco Spare Part Number    : WS-C6506-E=
Bảo hành                              : 12 tháng
List Price                              : $15,000
Giá Bán                                 : Liên hệ

Made In                                : Asia
Stock                                    : Liên hệ

Thiết bị chuyển mạch Switch Cisco WS-C6506-E Catalyst 6500 Enhanced 6-slot chassis, 12RU, no Power Supply, no Fan Tray

Cisco WS-C6506-E Catalyst 6506 Enhanced Chassis

Thông số kỹ thuật

Feature

Benefit

Scalability

6-slot modular chassis

Allows flexibility and room for future growth

Delivers up to 2 terabits per second of system bandwidth capacity and 80 Gbps per-slot for all slots. A system configured for VSS has a system capacity of 4 terabits per second.

Capable of delivering up to 4 terabits per second of system bandwidth and 180Gbps of per-slot bandwidth. A system configured for VSS will be capable of delivering up to 8 Tbps of system capacity.

Scales the system capacity for future needs

High interface capacity

Scales to high-density 40 Gigabit Ethernet, 10 Gigabit Ethernet and Gigabit Ethernet configurations

Increased resiliency

Standby fabric hot sync

Decreases the supervisor engine switchover time of Supervisor Engine 720 and Supervisor Engine 2T based systems to between 50 and 200 ms, depending on the modules being used

Redundant control channel

Increases resiliency to protect against backplane control channel failures

Redundant supervisor engine option

Increases availability with redundant supervisor engine options

Redundant power supply option

Supports redundant power supplies for increased availability

Fan tray

Supports hot-swappable fan tray

The 6509-V-E provides for redundant, hot-swappable fan trays

Environmental

Side-to-side airflow (except Cisco Catalyst 6509-V-E)

Allows ease of access to ports and cables

6509-V-E has front-to-back air flow to support hot aisle or cold aisle designs

AC and DC power supply

Supports both AC and DC power supply options, including AC and DC mixing

Network Equipment Building Standards Layer 3 (NEBS L3) compliant

Supports NEBS L3 compliance for deployment in demanding environments

Supervisor Compatibility

Cisco Catalyst 6500 Series Supervisor Engine 32

Cisco Catalyst 6500 Series Supervisor Engine 720-3B

Cisco Catalyst 6500 Series Supervisor Engine 720-3BXL

Cisco Catalyst 6500 Series Supervisor Engine 720-10G-3C

Cisco Catalyst 6500 Series Supervisor Engine 720-10G-3CXL

Cisco Catalyst 6500 Series Supervisor Engine 2T

Power Supply Compatibility

AC: 2500W, 3000W, 4000W, 6000W, 8700W

DC: 2500W, 4000W, 6000W

Software Compatibility (Minimum Software Version)

With Supervisor Engine 32

12.2(18)SXF

With Supervisor Engine 720

12.2(14)SX

With Supervisor Engine 720-10 GE

12.2(33)SXH

With Supervisor Engine 2T-10 GE

15.0(1)SY

Reliability and Availability

Calculated Mean Time Between Failure (MTBF)

441,418

MIBS

Check the corresponding supervisor engine data sheet

Network Management

Check the corresponding supervisor engine data sheet

Physical Dimensions

Inches 19.2 x 17.5 x 18
Centimeters 48.8 x 44.5 x 46.0
Rack Units (RU) 11
Weight Chassis Only (lbs): 50
Fully Configured (lbs): 159
Input Voltage

100 to 240 VAC

-48 to -60 VDC

Các tùy chọn sử dụng cho switch Cisco WS-C6506-E

WS-C6506-E-FAN= Cisco Catalyst 6506 Enhanced Chassis Fan Tray Spare
WS-CDC-2500W= Cisco Catalyst 6500 2500W DC Power Supply
WS-CAC-3000W= Cisco Catalyst 6500 3000W AC Power Supply
WS-CAC-4000W-US= Cisco Catalyst 6500 4000W AC Power Supply for US
WS-CAC-4000W-INT= Cisco Catalyst 6500 4000W AC Power Supply for International
WS-CAC-6000W= Cisco Catalyst 6500 6000W AC Power Supply
WS-CAC-8700W-E= Cisco Catalyst 6500 8700W Enhanced AC Power Supply
PWR-6000-DC= Cisco Catalyst 6500 6000W DC Power Supply
PWR-4000-DC= Cisco Catalyst 6500 4000W DC Power Supply
