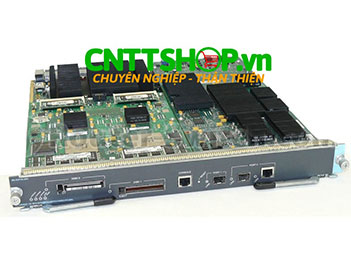

WS-SUP720-3BXL Cisco Catalyst 6500/Cisco 7600 Supervisor 720 Fabric MSFC3 PFC3BXL
Cisco WS-SUP720-3BXL Catalyst 6500/Cisco 7600 Supervisor 720 Fabric MSFC3 PFC3BXL
Cisco Part Number : WS-SUP720-3BXL
Cisco Spare Part Number : WS-SUP720-3BXL=
Bảo hành : 12 tháng
List Price : $34,000
Giá Bán : Liên hệ
Made In : Asia
Stock : Liên hệ
Cisco WS-SUP720-3BXL Catalyst 6500/Cisco 7600 Supervisor 720 Fabric MSFC3 PFC3BXL Module Card
Thông số kỹ thuật
|
Name |
WS-SUP720-3BXL |
|
VSS |
No |
|
Uplinks |
2 Gigabit |
|
IPv4 Routing |
In hardware Up to 400 Mpps |
|
IPv6 Routing |
In hardware Up to 200 Mpps |
|
L2 Bridging |
In hardware Up to 400 Mpps** |
|
MPLS |
MPLS in hardware to enable use of layer 3 VPNs and EoMPLS tunneling. Up to 1024 VRFs with a total of up to 1,000,000 routes per system. |
|
GRE |
In hardware |
|
NAT |
Hardware assisted |
|
MAC Entries |
64,000 |
|
Routes |
1,000,000 (IPv4), 500,000 (IPv6) |
|
Netflow Entries |
256,000 |
|
Chassis Compatibility |
• Cisco 6503, 6503-E, 6404-E, 6506, 6506-E, 6509, 6509-E, 6509-NEB, 6509-NEB-A, 6513
• Cisco 7603, 7606, OSR-7609, 7609, 7613
|
|
Fan Tray and Power Supply Required |
• High speed fan
• 2500W AC or DC
|
|
Slot Requirements |
Occupies the switch fabric slots in the chassis: • 3-slot chassis: slots 1 and 2
• 4-slot chassis: slots 1 and 2
• 6-slot chassis: slots 5 and 6
• 9-slot chassis: slots 5 and 6
• 13-slot chassis: slots 7 and 8
|
|
Software Compatibility |
• Catalyst 6500 Series
• CatOS: 8.3(2) and higher
• Native: 12.2(17d)SXB1 and higher
• Cisco 7600 Series: supports Cisco IOS 12.2(17b)SXB and later
|
|
Protocols |
• Layer 3 routing protocols, Border Gateway Protocol version 4 (BGPv4), Open Shortest Path First (OSPF), Intermediate System-to-Intermediate System (IS-IS), Enhanced Interior Gateway Routing Protocol(EIGRP), Routing Information Protocol (RIP), Distributed FIB Switching, Cisco Discover Protocol (CDP), Internet Control Message Protocol (ICMP)
• Traditional Protocols such as Internetwork Packet Exchange (IPX), Appletalk, DECnet, Virtual Integrated Network Service (VINES), Connectionless Network Service (CLNS)
• Multicast forwarding, Protocol independent Multicast (PIM) (both sparse and dense mode), (S,G), (*,G), Bi-Directional PIM in hardware
• Comprehensive MPLS support
• Cisco Group Management Protocol and Internet Group Management Protocol (IGMP) snooping
|
|
Memory |
• supports 1GB DRAM for route the processor and 1GB DRAM for the switch processor
• 64MB or 512MB (s/w image dependent) Boot Flash for SP switch processor and 64-MB of Boot Flash for the route processor
|
|
Options |
Removable storage: 64MB, 128 MB, 256 MB, 512 MB (Compact Flash)
|
|
Uplink Ports |
Two Gigabit Ethernet ports, one Small Form-Factor Pluggable (SFP), one selectable SFP or 10/100/100 RJ-45
|
|
Console Ports |
One (RS-232)
|
|
Reliability and Availability |
• FSU (Fast software upgrade)
• RPR+ (Route Processor Redundancy+)
• SSO+NSF (Stateful Switchover + Nonstop Forwarding)
• OIR (Online insertion and removal) Hot Swap
|
|
Physical Specifications |
• (H x W x D): 1.6 x 15.3 x 16.3 in. (4.0 x 37.9 x 40.3 cm)
• Weight: 11.5 lb
|
|
Power Consumption |
7.82A (328W)
|
|
Environmental Conditions |
• Operating temperature: 32 to 104°F (0 to 40°C)
• Storage temperature: -40 to 167°F (-40 to 75°C)
• Relative humidity: 10 to 90 percent, noncondensing
• Regulatory compliance
|
