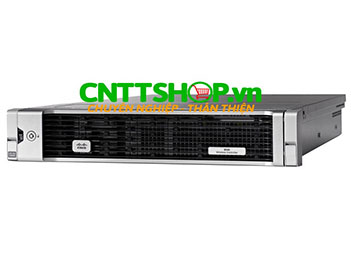

AIR-CT8540-K9 Cisco 8540 Wireless Controller with rack mouting kit

Cisco AIR-CT8540-K9 8540 Wireless Controller, 40-Gbps throughput, Support up to 6000 access points và 64,000 Client, 4 x 10 Gigabit Ethernet interfaces

Mã sản phẩm: AIR-CT8540-K9



CHI TIẾT

Cisco AIR-CT8540-K9 8540 Wireless Controller

Part Number           : AIR-CT8540-K9
List Price                  : $40,000

Bảo hành                 : 12 tháng
Made In                   : Asia

Bộ điều khiển không dây Cisco AIR-CT8540-K9 cung cấp điều khiển tập trung, quản lý và khắc phục sự cố cho việc triển khai quy mô lớn trong nhà cung cấp dịch vụ và triển khai khuôn viên lớn. Cisco AIR-CT8540-K9 cung cấp sự linh hoạt để hỗ trợ nhiều chế độ triển khai trong cùng một bộ điều khiển: ví dụ, chế độ tập trung cho khuôn viên trường, chế độ Cisco FlexConnect ™ cho các chi nhánh được quản lý qua mạng WAN và chế độ mesh (cầu nối) để triển khai trong các trường hợp khó khăn trong việc đi dây mạng.

View Datasheet

Cisco AIR-CT8540-K9 được tối ưu hóa cho hiệu suất cho các mã wifi 802.11ac Wave2, quy mô lớn và thời gian hoạt động của hệ thống nâng cao, cùng với nền tảng Cisco DNA, có khả năng mở rộng, linh hoạt, cho phép các mạng không dây thế hệ tiếp theo dành cho các doanh nghiệp có quy mô vừa và lớn.

Cisco AIR-CT8540-K9 8540 Wireless Controller

Thông số kỹ thuật Cisco AIR-CT8540-K9

Item

Specifications

Scalability and performance

Optimized to enable 802.11ac Wave 2 next-generation networks. Consolidate multiple controllers into one controller with support for up to 6000 access points and 64,000 clients with a single point of touch

●  40-Gbps throughput
●  6000 access points
●  64,000 clients
●  4096 VLANs
●  100 access points in up to 2000 Cisco FlexConnect groups

Wireless

IEEE 802.11a, 802.11b, 802.11g, 802.11d, WMM/802.11e, 802.11h, 802.11n, 802.11k, 802.11r, 802.11u, 802.11w, 802.11ac Wave1 and Wave2

Wired, switching, and routing

IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX specification, 1000BASE-T. 1000BASE-SX, 1000-BASE-LH, IEEE 802.1Q VLAN tagging, IEEE 802.1AX Link Aggregation

Data Request For Comments (RFC)

●  RFC 768 UDP
●  RFC 791 IP
●  RFC 2460 IPv6
●  RFC 792 ICMP
●  RFC 793 TCP
●  RFC 826 ARP
●  RFC 1122 Requirements for Internet Hosts
●  RFC 1519 CIDR
●  RFC 1542 BOOTP
●  RFC 2131 DHCP
●  RFC 5415 CAPWAP Protocol Specification
●  RFC 5416 CAPWAP Binding for 802.11

Security standards

●  Wi-Fi Protected Access (WPA)
●  IEEE 802.11i (WPA2, RSN)
●  RFC 1321 MD5 Message-Digest Algorithm
●  RFC 1851 ESP Triple DES Transform
●  RFC 2104 HMAC: Keyed Hashing for Message Authentication
●  RFC 2246 TLS Protocol Version 1.0
●  RFC 2401 Security Architecture for the Internet Protocol
●  RFC 2403 HMAC-MD5-96 within ESP and AH
●  RFC 2404 HMAC-SHA-1-96 within ESP and AH
●  RFC 2405 ESP DES-CBC Cipher Algorithm with Explicit IV
●  RFC 2407 Interpretation for ISAKMP
●  RFC 2408 ISAKMP
●  RFC 2409 IKE
●  RFC 2451 ESP CBC-Mode Cipher Algorithms
●  RFC 3280 Internet X.509 PKI Certificate and CRL Profile
●  RFC 4347 Datagram Transport Layer Security
●  RFC 5246 TLS Protocol Version 1.2

Encryption

●  Wired Equivalent Privacy (WEP) and Temporal Key Integrity Protocol-Message Integrity Check (TKIP-MIC): RC4 40, 104 and 128 bits (both static and shared keys)
●  Advanced Encryption Standard (AES): Cipher Block Chaining (CBC), Counter with CBC-MAC (CCM), Counter with Cipher Block Chaining Message Authentication Code Protocol (CCMP)
●  Data Encryption Standard (DES): DES-CBC, 3DES
●  Secure Sockets Layer (SSL) and Transport Layer Security (TLS): RC4 128-bit and RSA 1024- and 2048-bit
●  DTLS: AES-CBC
●  IPsec: DES-CBC, 3DES, AES-CBC
●  802.1AE MACsec encryption

Authentication, Authorization, and Accounting (AAA)

●  IEEE 802.1X
●  RFC 2548 Microsoft Vendor-Specific RADIUS Attributes
●  RFC 2716 PPP EAP-TLS
●  RFC 2865 RADIUS Authentication
●  RFC 2866 RADIUS Accounting
●  RFC 2867 RADIUS Tunnel Accounting
●  RFC 2869 RADIUS Extensions
●  RFC 3576 Dynamic Authorization Extensions to RADIUS
●  RFC 5176 Dynamic Authorization Extensions to RADIUS
●  RFC 3579 RADIUS Support for EAP
●  RFC 3580 IEEE 802.1X RADIUS Guidelines
●  RFC 3748 Extensible Authentication Protocol (EAP)
●  Web-based authentication
●  TACACS support for management users

Management

●  Simple Network Management Protocol (SNMP) v1, v2c, v3
●  RFC 854 Telnet
●  RFC 1155 Management Information for TCP/IP-Based Internets
●  RFC 1156 MIB
●  RFC 1157 SNMP
●  RFC 1213 SNMP MIB II
●  RFC 1350 TFTP
●  RFC 1643 Ethernet MIB
●  RFC 2030 SNTP
●  RFC 2616 HTTP
●  RFC 2665 Ethernet-Like Interface types MIB
●  RFC 2674 Definitions of Managed Objects for Bridges with Traffic Classes, Multicast Filtering, and Virtual Extensions
●  RFC 2819 RMON MIB
●  RFC 2863 Interfaces Group MIB
●  RFC 3164 Syslog
●  RFC 3414 User-Based Security Model (USM) for SNMPv3
●  RFC 3418 MIB for SNMP
●  RFC 3636 Definitions of Managed Objects for IEEE 802.3 MAUs
●  Cisco private MIBs

Management interfaces

●  Web-based: HTTP/HTTPS
●  Command-line interface: Telnet, Secure Shell (SSH) Protocol, serial port
●  Cisco Prime Infrastructure

Interfaces and indicators

●  4 x 10 Gigabit Ethernet interfaces or 4 x 1 Gigabit Ethernet interfaces
●  Small Form-Factor Pluggable Plus (SFP+) options (only Cisco SFP+s supported), including S-Class Optics
●  Small Form-Factor Pluggable (SFP) options (only Cisco SFPs supported), including S-Class Optics
●  1 x service port: 1 Gigabit Ethernet port (RJ-45)
●  1 x redundancy port: 1 Gigabit Ethernet port (RJ-45)
●  1 x Cisco Integrated Management Controller port: 1 10/100/1000 Ethernet (RJ-45)
●  1 x console port: Serial port (RJ-45)
●  LED indicators: Network Link, Diagnostics

Physical dimensions

●  Dimensions (WxDxH): 18.96 x 30.18 x 3.43 in. (48.2 x 76.6 x 8.70 cm) including handles
●  Weight: 44 lb (19.9 kg) with 2 power supplies

Environmental conditions

Air temperature:

●  Appliance operating: 41° to 104°F (5° to 40°C), derate the maximum temperature by 1.0°C per every 1000 ft. (305m) of altitude above sea level
●  Appliance nonoperating: -40° to 149°F (-40° to 65°C)

Humidity:

●  Appliance operating: 10% to 90%; noncondensing at 82°F (28°C)
●  Appliance nonoperating: 5% to 93% at 82°F (28°C)

Altitude:

●  Appliance operating: 0 to 3,000m (0 to 10,000 ft.)
●  Appliance nonoperating: 0 to 12,192 m (0 to 40,000 ft.)

Electrical input:

●  AC input frequency range: 47 to 63 Hz
●  Input voltage range:
◦   Minimum: 90 VAC
◦   Maximum: 264 VAC
◦   Maximum power 538W
●  Heat dissipation: 1836 BTU/hr
●  Sound power level measure:
◦   A-weighted per ISO 7779 LpAm (dBA), operation at 77°F (25°C): 59.4

Regulatory compliance

CE Markings per directives 2004/108/EC and 2006/95/EC

Safety:

●  UL 60950-1 Second Edition
●  CAN/CSA-C22.2 No. 60950-1 Second Edition
●  EN 60950-1 Second Edition
●  IEC 60950-1 Second Edition
●  AS/NZS 60950-1
●  GB4943 2001

EMC - Emissions:

●  47CFR Part 15 (CFR 47) Class A
●  AS/NZS CISPR22 Class A
●  EN55022 Class A
●  ICES003 Class A VCCI Class A
●  EN61000-3-2 EN61000-3-3 KN22 Class A
●  CNS13438 Class A

EMC - Immunity:

●  EN55024
●  CISPR24
●  EN300386
●  KN24

AIR-CT8540-K9 Ordering Information

Product name

Part number

Services 8x5xNBD

Cisco 8540 Wireless Controller

AIR-CT8540-K9

CON-SNT-AIRCT85R

Perpetual licenses

Cisco 8540 Wireless Controller upgrade SKU

LIC-CT8540-UPG



Cisco 8540 Wireless Controller 1 access point adder license

LIC-CT8540-1A

CON-ECMU-LICCT85C

Cisco 8540 Wireless Controller DTLS license

LIC-CT8540-DTLS-K9



Term-based licenses

Cisco DNA Essentials 3-, 5-, or 7-year term license per year per access point for wireless

AIR-DNA-E

Embedded Support included

Cisco DNA Advantage 3-, 5-, or 7-year term License per year per access point for wireless

AIR-DNA-A

Embedded Support included

Cisco ONE Advantage 3-, 5-, or 7-year term license per year per access point for wireless

C1-AIR-K9-T

Embedded Support included

Accessories

Spare SSD for Cisco Wireless Controller 5520 and 8540

AIR-SD240G0KS2-EV=



Spare fan - Cisco 8540 Wireless Controller

AIR-FAN-C240M4=



Rail mounting kit

UCSC-RAILB-M4=
