Category
|
Routers
|
|
Description
|

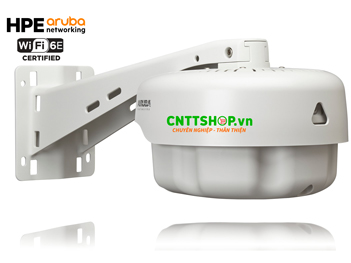

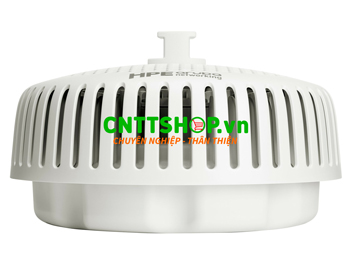

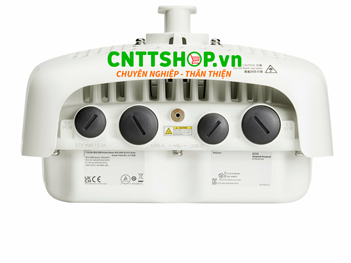

HPE Aruba Networking AP-677 (S0P56A) - Wireless access point - ZigBee, Bluetooth, Wi-Fi 6E - 2.4 GHz, 5 GHz, 6 GHz - RW Compliant
|
|
Manufacturer
|
Hewlett Packard Enterprise
|
|
Main Specifications
|
|
Dimensions & Weight / Depth
|
28.8 cm
|
|
Dimensions & Weight / Height
|
17.1 cm
|
|
Dimensions & Weight / Weight
|
3.6 kg
|
|
Dimensions & Weight / Width
|
29 cm
|
|
Header / Brand
|
Aruba
|
|
Miscellaneous / Product Color
|
White
|
|
Networking / Connectivity Technology
|
Wireless
|
|
Networking / Data Link Protocol
|
-
Bluetooth 5.0 LE
-
IEEE 802.11a
-
IEEE 802.11ac
-
IEEE 802.11ax (Wi-Fi 6E)
-
IEEE 802.11b
-
IEEE 802.11g
-
IEEE 802.11n
-
ZigBee
|
|
Networking / Data Transfer Rate
|
3.9 Gbps
|
|
Networking / Form Factor
|
External
|
|
Networking / Type
|
Wireless access point
|
|
Packaged Quantity
|
1
|
|
Service & Support / Type
|
Limited lifetime warranty
|
|
System Requirements / OS Required
|
|
|
Antenna
|
|
Antenna
|
Internal
|
|
Antenna Qty
|
2
|
|
Directivity
|
Directional
|
|
Gain Level
|
6.9 dBi
|
|
Environmental Parameters
|
|
Humidity Range Operating
|
5 - 100% (non-condensing)
|
|
Max Operating Temperature
|
70 °C
|
|
Min Operating Temperature
|
-40 °C
|
|
Expansion / Connectivity
|
|
Interfaces
|
-
1 x 2.5 GBase-T
-
1 x 1000Base-SR - SFP+
-
1 x console - USB-C
|
|
General
|
|
Depth
|
28.8 cm
|
|
Device Type
|
Wireless access point
|
|
Height
|
17.1 cm
|
|
Ruggedized Design
|
Outdoor
|
|
Weight
|
3.6 kg
|
|
Width
|
29 cm
|
|
Internet of Things (IoT)
|
|
Communications Technology
|
Bluetooth Low Energy (LE), Zigbee
|
|
Internet of Things (IoT) Compatible
|
Yes
|
|
Manufacturer Warranty
|
|
Service & Support
|
Limited warranty - lifetime
|
|
Miscellaneous
|
|
Compliant Standards
|
ASTM B117, IEC 60950-22, UL 50E, EMC 2014/30/EU, LVD 2014/35/EU, ATEX Zone 2, EN 50155, EN 62368-1, IEC 62368-1, ISED, UL 62368-1, IEC 60079-0, EN 60079-0, UL 121201, Class 1 Div 2 (C1D2)
|
|
MTBF
|
500,562 hours
|
|
Networking
|
|
Capacity
|
|
|
Compliant Standards
|
IEEE 802.11b, IEEE 802.11a, IEEE 802.3af, IEEE 802.11g, IEEE 802.11n, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3bt, IEEE 802.11ax
|
|
Connectivity Technology
|
Wireless
|
|
Data Link Protocol
|
IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, ZigBee, IEEE 802.11ac, Bluetooth 5.0 LE, IEEE 802.11ax (Wi-Fi 6E)
|
|
Data Transfer Rate
|
3.9 Gbps
|
|
Encryption Algorithm
|
WPA3, WPA3-Enhanced Open, WPA2-MPSK
|
|
Features
|
Surge protection, Trusted Platform Module (TPM), reset button, Maximum Ratio Combining (MRC), Low Density Parity Check (LDPC), Transmit Beam-forming (TxBF) ready, Cyclic Delay Diversity (CDD), Space Time Blocking Code (STBC), Advanced Cellular Coexistence (ACC), ClientMatch, MU-MIMO technology, packet aggregation A-MPDU, packet aggregation A-MSDU, Zero-touch provisioning (ZTP), 2x2 MIMO technology, Very High Throughput (VHT) support, Target Wait Time (TWT), 160MHz bandwidth support, Advanced IoT Coexistence (AIC)
|
|
Form Factor
|
External
|
|
Frequency Band
|
2.4 GHz, 5 GHz, 6 GHz
|
|
Line Coding Format
|
CCK, 64 QAM, 256 QAM, BPSK, QPSK, 16 QAM, OFDM, 1024 QAM, DSSS
|
|
Performance
|
-
Maximum data rate (5 GHz): 1.2 Gbps
-
Maximum data rate (2.4 GHz): 287 Mbps
-
Maximum data rate (6 GHz): 2.4 Gbps
|
|
Spread Spectrum Method
|
OFDM, DSSS, OFDMA
|
|
Status Indicators
|
System, status, radio
|
|
Power
|
|
Power Consumption Operational
|
45.5 Watt
|
|
Power Over Ethernet (PoE) Supported
|
PoE Class 6
|
|
Software / System Requirements
|
|
OS Required
|
ArubaOS, InstantOS
|
