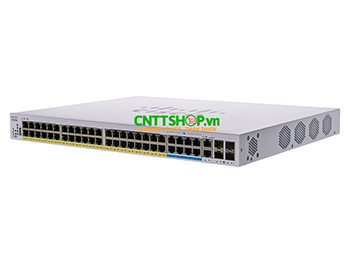

| Datasheet Cisco C1300-48MGP-4X |
| Specifications |
| Port |
40 x 10/100/1000 PoE+ ports
8 x 100M/1G/2.5G/5G PoE+ ports (8 support 60W UPoE)
4 x 10G ports (2 x 10G copper/SFP+ combo + 2 x SFP+) |
| Console port |
Cisco standard RJ-45 console port and USB Type C port |
| USB port |
USB Type C port on the front panel of the switch for easy file and image management as well as console port |
| PoE Budget |
740 W |
| Performance |
| Switching capacity in Gigabits per second (Gbps) |
240 Gbps |
| Capacity in Millions of Packets Per Second (mpps) (64-byte packets) |
178.56 Mpps |
| Hardware |
| CPU |
ARM dual-core at 1.4 GHz |
| DRAM |
1 GB DDR4 |
| Flash |
512 MB |
| Packet buffer |
1.5 MB |
| Buttons |
Reset button |
| Cabling type |
Unshielded Twisted Pair (UTP) Category 5e or better for 1000BASE-T |
| LEDs |
System, Link/Act, PoE, Speed |
| Feature |
| Spanning Tree Protocol |
Standard 802.1d Spanning Tree support
Fast convergence using 802.1w (Rapid Spanning Tree [RSTP]), enabled by default
Multiple Spanning Tree instances using 802.1s (MSTP); 8 instances are supported
Per-VLAN Spanning Tree Plus (PVST+) and Rapid PVST+ (RPVST+); 126 instances are supported |
| Port grouping/link aggregation |
Support for IEEE 802.3ad Link Aggregation Control Protocol (LACP)
● Up to 8 groups
● Up to 8 ports per group with 16 candidate ports for each (dynamic) 802.3ad link aggregation |
| VLAN |
Support for up to 4093 VLANs simultaneously
Port-based and 802.1Q tag-based VLANs, MAC-based VLAN, protocol-based VLAN, IP subnet-based VLAN
Management VLAN
Private VLAN with promiscuous, isolated, and community port
Private VLAN Edge (PVE), also known as protected ports, with multiple uplinks
Guest VLAN, unauthenticated VLAN
Dynamic VLAN assignment via RADIUS server along with 802.1X client authentication
Customer premises equipment (CPE) VLAN
Auto surveillance VLAN (ASV) |
| Voice VLAN |
Voice traffic is automatically assigned to a voice-specific VLAN and treated with appropriate levels of QoS. Voice Services Discovery Protocol (VSDP) delivers networkwide zero-touch deployment of voice endpoints and call control devices |
| Multicast TV VLAN |
Multicast TV VLAN allows the single multicast VLAN to be shared in the network while subscribers remain in separate VLANs. This feature is also known as Multicast VLAN Registration (MVR) |
| IPv4 routing |
Wire-speed routing of IPv4 packets
Up to 990 static routes and up to 128 IP interfaces |
| IPv6 routing |
Wire-speed routing of IPv6 packets |
| Layer 3 interface |
Configuration of a Layer 3 interface on a physical port, LAG, VLAN interface, or loopback interface |
| Routing Information Protocol (RIP) v2 |
Support for RIP v2 for dynamic routing |
| Policy-Based Routing (PBR) |
Flexible routing control to direct packets to a different next hop based on an IPv4 or IPv6 Access Control List (ACL) |
| DHCP server |
Switch functions as an IPv4 DHCP server, serving IP addresses for multiple DHCP pools or scopes
Support for DHCP options |
| Hardware stacking |
Up to 8 switches in a stack. Up to 200 ports managed as a single system with hardware failover |
| High availability |
Fast stack failover delivers minimal traffic loss. Support for LAG across multiple units in a stack |
| Environmental |
| Power |
100-240V 50-60 Hz |
| Certification |
UL (UL 62368), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A |
| Operating temperature |
23° to 122°F (-5° to 50°C) |
| Storage temperature |
-13° to 158°F (-25° to 70°C) |
| Operating humidity |
10% to 90%, relative, noncondensing |
| Storage humidity |
10% to 90%, relative, noncondensing |
