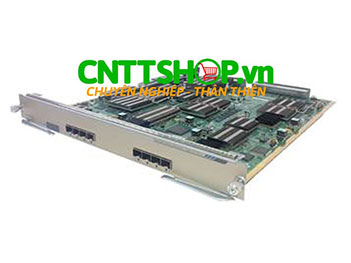

C6800-8P10G-XL= Cisco Catalyst 6800 8 port 10GE with integrated DFC4-XL Spare
Cisco C6800-8P10G-XL= Catalyst 6800 8 port 10GE with integrated dual DFC4-XL Spare
Cisco Part Number : C6800-8P10G-XL
Cisco Spare Part Number : C6800-8P10G-XL=
Bảo hành : 12 tháng
List Price : $35,000
Giá Bán : Liên hệ
Made In : Asia
Stock : Liên hệ
| View Datasheet C6800-8P10G-XL= |
Thông số kỹ thuật
|
Attribute |
C6800-8P10G-XL= |
|
10GE portss |
8 ports 1GE or 10GE Numbered left to right: - TenGigabitEthernet 1 to 8
|
|
Port groups |
2 port groups (N/A) Port-group 1: - 1 to 4
Port-group 2: - 5 to 8
Performance Mode is not applicable to 8-port 10GE module |
|
Performance Mode |
N/A |
|
Switch fabric connection |
80 Gbps in 6807-XL and 6500-E chassis |
|
Oversubscription |
In both the C6807-XL and Catalyst 6500-E chassis: 8 ports line rate 1:1 |
|
Number of forwarding engines |
1 |
|
Throughput (per module) |
IPv4: up to 60 Mpps IPv6: up to 30 Mpps |
|
Forwarding engine features |
-Equipped with DFC4-EXL for distributed forwarding, supporting
◦ 1M IPV4 and MPLS Forwarding entries, 512K IPV6 entries
◦ 64K IPV4/IPV6 Multicast routes
◦ 256K ACL entries (shared between QoS and security)
◦ 2M NetFlow entries (32 port card, with 2 forwarding engines)
◦ 1M NetFlow entries (8/16 port card, with 1 forwarding engine)
- Both models support a MAC Address Table of 128K
- In addition to the increased NetFlow entries, supports Flexible NetfFlow, Sampled NetFlow and Egress NetFlow
- Increased MPLS and VPLS performance of up to:
◦ 120Mpps for MPLS forwarding and up to 60Mpps for VPLS forwarding (32 port card, with 2 forwarding engines)
◦ 60Mpps for MPLS forwarding and up to 30Mpps for VPLS forwarding (8/16 port card, with 1 forwarding engine)
- Support for 16K Bridge Domains, allowing the standard 4K VLANs to be reused across these bridge domains
- IPv4 Internet Group Management Protocol Version 3 (IGMPv3) snooping in hardware
- IPv6 Multicast Listener Discovery Version 2 (MLDv2) snooping in hardware
- Protocol Independent Multicast (PIM) source registers in hardware
- IPV4 and IPv6 in IPv6 tunneling, IPV4 and IPv6 in MPLS tunneling (6PE/6VPE)
- IPv6 in IPv4 tunneling (Intra-Site Automatic Tunnel Addressing Protocol [ISATAP], 6to4, GRE)
- Quality-of-Service (QoS) support for uniform, short pipe, and pipe mode tunnel; Hierarchical QoS
- Fast Link Notification (FLN) for hardware port state detection with 50ms
- MACsec (802.1ae) link-layer hardware AES 128 bit encryption
- Location ID Separation Protocol (LISP) hardware encapsulation
- Virtual Switch Header (VSH) and Virtual Network Tag (VNtag) hardware encapsulation for VSS and Instant Access
|
|
Queues |
Receive: - 1p7q4t (default)
- 2p6q4t (configurable)
Transmit: - 1p7q4t (default)
- 2p6q4t (configurable)
|
|
Queuing mechanisms |
- Class of Service (CoS) based queue mapping
- (Differentiated Service Code Point (DSCP) based queue mapping
|
|
Scheduler |
Ingress Queuing: - Deficit Weighted Round Robin (DWRR)
Egress Queuing: - Deficit Weighted Round Robin (DWRR)
◦ Weighted Random Early Detection (WRED)
- Shaped Round Robin (SRR)
◦ Weighted Random Early Detection (WRED)
- Class Based Weighted Fair Queuing (CBWFQ)
◦ 2 Level Traffic Shaping (HQoS)
◦ Low-Latency Queuing (LLQ)
|
|
Port buffers |
- 500 MB per port (Egress)
- 2.5 MB per port (Ingress)
|
|
Hardware multicast replication |
- Ingress and Egress replication-mode
- Approximately 20 Gbps per replication engine
- 4 replication engines per module
|
|
Jumbo frame support |
Up to 9216 bytes |
|
Can be used to form VSS Virtual Switch Link |
Yes (on all ports) |
|
Can be used to form Instant Access Remote Switch Link |
Yes (on all ports) |
|
Maximum 10G port density per chassis (not including supervisor uplinks) |
40 ports (6807-XL chassis) 88 ports (6513-E chassis) 64 ports (6509-E chassis) 40 ports (6506-E chassis) 24 ports (6504-E chassis) 16 ports (6503-E chassis) |
|
Maximum port density per VSS (not including supervisor uplinks) |
80 ports (6807-XL chassis) 176 ports (6513-E chassis) 128 ports (6509-E chassis) 80 ports (6506-E chassis) 48 ports (6504-E chassis) 32 ports (6503-E chassis) |
|
Supervisor engines supported |
Catalyst® 6500 Supervisor Engine 2T and 2TXL |
|
Chassis supported |
- Cisco Catalyst 6807-XL chassis
- Cisco Catalyst 6500 E-Series chassis, including 6503-E, 6504-E, 6506-E, 6509-E, 6509-V-E (NEBS) and 6513-E
- Not supported in 6500 non-E Series chassis and 7600 Series Chassis
|
|
Slot requirements |
- Can occupy slots 1-2 and 5-7 in a Cisco Catalyst 6807-XL chassis
- Can occupy any slot in any Cisco Catalyst 6503-E, 6504-E, 6506-E, 6509-E or 6509-V-E or chassis
- Can occupy slots 1-6 and 9-13 in a Cisco Catalyst 6513-E chassis
|
|
Onboard memory |
2 GB default
|
|
Minimum IOS software release |
15.2(1)SY
|
|
Physical specifications |
- Occupies one slot in the Cisco Catalyst 6500 E-Series and 6807-XL chassis
- Dimensions (H x W x D): 1.73 x 15.4 x 16.4 inches (4.39 x 39.11 x 41.65 cm)
- Weight:
◦ 11.0 lb (5kg)
|
|
Power requirements |
303.68 Watts
|
