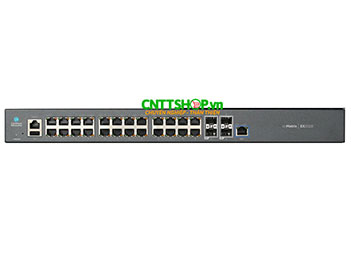

Cambium Switch cnMatrix EX2028 128 Gbps throughput, 24 10/100/1000 ports.
Cambium Part Number |
:
|
List Price |
: $
|
Giá bán |
:
|
Bảo hành |
: Chính hãng 5 năm
|
Made In |
:
|
Stock |
:
|
Switch Cambium EX2028 giúp đơn giản hóa việc triển khai và vận hành mạng. Khi được triển khai với các điểm truy cập WLAN cnPilot và hệ thống quản lý cnMaestro, khách hàng sẽ có một mạng cấp doanh nghiệp có dây, không dây thống nhất, chất lượng cao, giá cả phải chăng.
EX2028 Datasheet
Cambium cnMatrix EX2028 cung cấp 24 cổng 10/100/1000 tốc độ cao và 4 cổng SFP+ uplink sử dụng module quang 10GE để kết nối lên hệ thống Core. Thiết bị chuyển mạch Cambium EX2028 có thể được quản trị và cấu hình thông qua giao diện CLI, Cloud hoàn toàn miễn phí hoặc thông qua ứng dụng cnMaestro được cài đặt trên các hệ thống máy chủ. Khách hàng có thể dễ dàng cài đặt và triển khai mà không yêu cầu nhân viên IT phải có kinh nghiệm hoặc trình độ cao.

Thông số kỹ thuật Cambium EX2028
Throughput |
84 Gbps |
Forwarding Rate in Mpps (64 Byte Packets) |
120 |
10/100/1000 Ports |
24 |
Uplink Ports |
4 SFP+ |
PoE+ Enabled Ports (802.3af/at) |
n/a |
Serial Console |
Yes |
USB |
Yes |
Out-of-Band Management Port |
Yes |
Rack Mount Kit |
Yes |
Internal Fans |
Fanless |
Reset Button |
Yes |
MAC Address Table Size |
16K |
Flash Storage |
128MB |
DRAM |
512MB |
VLANs |
4K |
Port Based VLANs |
4K |
LACP/Trunking |
8 LAGs/8 links per LAG |
QoS Priority Queues |
8 |
PVRST |
32 |
Ingress/Egress ACL |
128 |
Static Arp Entries |
512 |
ARP Entries |
512 |
Static Routes |
64 |
Dynamic Routing |
512 |
IGMP Multicast Groups |
256 |
Policy Based Automation |
Yes |
Quality of Service |
ACL mapping and marking of ToS/DSCP (COS)
ACL mapping marking of 802.1p
ACL mapping to priority queue
DiffServ support
Honoring DSCP and 802.1p(CoS)
Traffic shaping/metering
Priority queue management using Weighted Round Robin (WRR), Strict Priority (SP) and a combination of WRR and SP |
Traffic Management |
ACL-based inbound rate limiting policies
Broadcast, multicast and unknown unicast rate limiting
Inbound rate limiting per port
Outbound rate limiting per port/queue |
Security |
802.1x authentication
MAC authentication
DHCP snooping
RADIUS authentication/authorization
Radius/Tacacs/Tacacs+
Authentication, Authorization, and Accounting (AAA)
Secure shell
Secure copy (SCP)
Local username/password |
Layer 2 Feature Set |
802.1s multiple spanning tree
VLAN, Port, Protocol, 802.1q
802.1d
802.1x authentication
Auto MDI/MDIX
Bpdu Guard, Root Guard
IGMP Snooping v1/v2/v3
LLDP/LLDP Med
IGMP Proxy
Static MAC
Flow Control per port
IGMP v2/v3 fast leave
Per VLAN STP (PVST/PVRST)
Port Mirroring: port based, ACL based, VLAN based
Port Isolation/Private VLAN Edge
Link Aggregation Groups (Static/LACP)
Rate Limiting/Storm Control
Jumbo frame (9k)
DHCP Snooping
BPDU filtering
Broadcast/Multicast/Unlearned Unicast (Storm Control)
DoS Protection (Port, CPU)
Ping/TraceRoute/ICMPv6 |
Management |
cnMaestro (cloud management)
Industry standard Command Line Interface (CLI)
DHCP Client
Embedded web management (HTTP/HTTPS)
Embedded DHCP server
USB file management and storage
Out of Band Ethernet Management
SSH /SSH v2
SNMP v1/v2/v3
DHCP relay
Simple Network Time Protocol (SNTP)
Local/remote system logging
Policy Based Automation
Display log messages multiple terminals
TFTP
Telnet client/server
IPv6 management
Password management
Autoinstall support for firmware images and config files |
Power Supply |
100-240VAC |
Max Switch Power (with Traffic) |
19.50W |
MTBF (Hours) |
432,283 |
Weight |
2.77 kg (6.1 lb) |
Dimensions |
44 x 4.4 x 20.9 cm (17.3 x 1.75 x 8.22 in) |
CPU Speed |
800Mhz |
LEDs Per Port |
Link/Activity |
PoE+ Power Budget |
No |
PoE+ Voltage |
54V |
Max PoE+ Power Per Port |
30W |
Rack Mountable |
Yes 1U |
Acoustic Noise dBA Per Switch (Ambient Temperature) |
Fanless |
Temperature Ranges |
-0°C to +50°C (+32°F to +122°F) |
Operating Humidity |
+55° at 95% RH |
Storage Temperature |
-40°C to +70°C (-40°F to +158°F) |
Bạn đang cần tư vấn về sản phẩm: EX2028 ?
bạn có thể dùng các module quang Cisco như GLC-SX-MMD, GLC-LH-SMD để cắm cho cả switch Cambium EX2028 Switch Cisco 3850-24s-s khi kết nối với nhau
switch Cambium EX2028 cnMatrix EX2028 có cổng console RJ45 trên mặt trước nhé
phụ kiện đi kèm theo thiết bị chuyển mạch Cambium EX2028 cnMatrix EX2028 bao gồm: dây nguồn, bộ rackmount kit, sách hướng dẫn
ok bạn nhé
switch cambium EX2028 cnMatrix EX2028 24 GE port and 4 SFP+ Uplink ports được bảo hành chính hãng 05 năm
