Cisco Room Kit Plus P60 mang đến trải nghiệm âm thanh và video chưa từng có mà khách hàng mong đợi từ Cisco. Ngoài ra, Thiết bị đầu cuối HNTH Cisco Room Kit Plus P60 cung cấp sự linh hoạt cho các phòng họp trực tuyến bằng cách sử dụng Camera Precision 60 pan-tilt-zoom không chỉ mang lại trải nghiệm hình ảnh hàng đầu với công suất zoom quang học gấp 10 lần và 20 lần, mà còn cung cấp mức độ linh hoạt cao cho các tích hợp tùy chỉnh và chuyên dụng. Camera Precision 60 cũng hỗ trợ khả năng thích ứng vượt trội với điều kiện ánh sáng và mang lại một trong những chất lượng hình ảnh tốt nhất trong ngành cho các phòng họp lớn.
Cisco Room Kit Plus P60 Datasheet
Cisco Room Kit Plus CS-KITP60-K9 kết hợp hiệu suất của bộ giải mã Cisco Webex Room Kit Plus (Codec Plus) và tính linh hoạt của Máy ảnh Cisco Precision 60 để mang đến sự linh hoạt tối đa trong các tình huống khi bạn cần đặt máy ảnh đặc biệt, chụp gần hoặc xoay / nghiêng / thu phóng góc rộng.

Thông tin đặt hàng CS-KITP60-K9

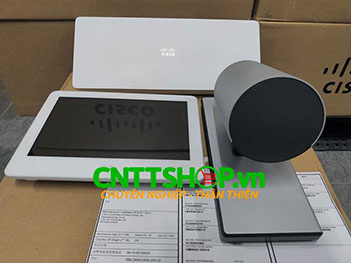

Bộ sản phẩm Cisco Webex Room Kit Plus Precision 60 (CS-KITP60-K9) bao gồm:
- Cisco Webex Codec Plus CS-CODEC-PLUS+

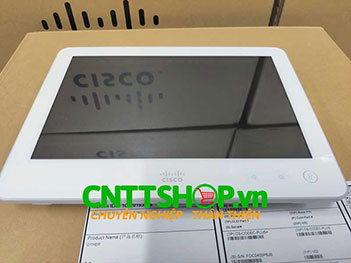

- Cisco Touch 10 Control Unit CTS-CTRL-DVX-10
- Cisco Precision 60 Camera CTS-CAM-P60+
Các tùy chọn đi kèm:
Cisco Table Microphone 20
|
CTS-MIC-TABL20
|
Extension cable for Table Microphone 20
|
CAB-MIC-T20EXT
|
Cisco Ceiling Microphone
|
CTS-MIC-CLNG-G2
|
Shielded cable for ceiling mic (non-plenum rated)
|
CAB-ETHRSHLD-10M
|
Wall mount kit for Codec Plus
|
CS-KITPLUS-WMK
|
8 m HDMI 2.0 certified cable
|
CAB-PRES-2HDMI-GR
|
HDMI 2.0 cable 1.5 m/5 ft, gray
|
CAB-2HDMI-1.5M-GR
|
HDMI 2.0 cable 3 m/10 ft, gray
|
CAB-2HDMI-3M-GR
|
Ethernet cable 1.5 m/5 ft, gray
|
CAB-ETH-1.5M-GR
|
Ethernet cable 3 m/10 ft, gray
|
CAB-ETH-3M-GR
|
Ethernet cable 5 m/16.4 ft, gray
|
CAB-ETH-5M-GR
|
Remote Monitoring
|
L-ROOM-RM (L-TP-RM)
|
MultiSite (embedded multipoint)
|
L-KITPLUS-MS (L-ROOM-PAK)
|

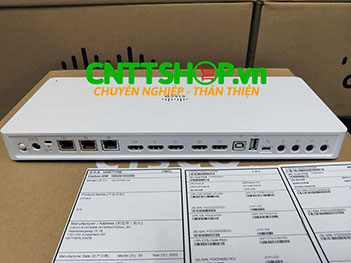

Cisco Webex Codec Plus
|
CS-CODEC-PLUS=
|
Cisco Webex Codec Plus – no radio, no crypto
|
CS-CODEC-PL-NR-K7=
|
Cisco Webex Codec Plus – no radio
|
CS-CODEC-PLUS-NR=
|
Power supply 12VDC 70W
Cisco Precision 60 Camera
|
PSU-12VDC-70W-GR=
CTS-CAM-P60=
|
Thông số kỹ thuật chi tiết của CS-KITP60-K9
Software compatibility |
Cisco Collaboration Endpoint Software Version 9.1.5 or later, or Cisco Webex Room OS |
Default components in Cisco Webex Room Kit Plus Precision 60 |
- Cisco Webex Codec Plus
- Cisco Precision 60 Camera
- Cisco Touch 10 control unit
|
Optional hardware components |
Cisco Table Microphone 20, wall mount for Codec Plus, cables |
Bandwidth |
Up to 6 Mbps point-to-point |
Minimum bandwidth for resolution/frame rate |
H.264
- 720p30 from 768 kbps
- 720p60 from 1152 kbps
- 1080p30 from 1472 kbps
- 1080p60 from 2560 kbps
|
Firewall traversal |
Cisco Expressway ™ technology: H.460.18, H.460.19 firewall traversal
|
Video standards |
H.264, H.265 |
Video inputs |
One HDMI input supports formats up to maximum 1080p60
- Two HDMI inputs support formats up to maximum 4K (3840 x 2160) at 30 fps including HD1080p60
- Consumer Electronics Control (CEC) 2.0
|
Video outputs |
Two HDMI outputs support formats up to 3840 x 2160p60 (4Kp60)
- Live video resolutions (encode and decode) up to 1920 x 1080p60 (HD1080p)
- CEC 2.0
|
Audio standards |
G.711, G.722, G.722.1, G.729, AAC-LD, and Opus |
Audio features |
High-quality 20-kHz audio
- Subwoofer line out
- Prepared for inductive loop (line out)
- Automatic Gain Control (AGC)
- Automatic noise reduction
- Active lip synchronization
|
Audio inputs |
Three microphones, 4-pin mini-jack: Two audio in from HDMI
|
Audio outputs (external) |
1 line out mini-jack (stereo) (Codec Plus)
- 1 RCA output for subwoofer
- 1 HDMI outputs
- HDMI input #1 supports Audio Return Channel (ARC): Audio output to Quad Camera speakers
|
Dual stream |
H.239 (H.323) dual stream
- Binary Floor Control Protocol (BFCP) (Session Initiation Protocol [SIP]) dual stream
- Supports resolutions up to 3840 x 2160p5 (4Kp5) and 1080p30
|
Wireless sharing |
Cisco Webex Teams client (up to 3840 x 2160p5)
- Cisco Intelligent Proximity client (up to 1920 x 1080p5)
|
Multipoint support |
4-way embedded SIP/H.323 conferencing capability with MultiSite option |
MultiSite features
(embedded multipoint)
(optional upgrade) |
Adaptive SIP/H.323 MultiSite
- 3-way resolution up to 1080p30 + content up to 4Kp5
- 4-way resolution up to 720p30 + content up to 4Kp5
Full individual audio and video transcoding
H.323/SIP/VoIP in the same conference
Support for presentation (H.239/BFCP) from any participant at resolutions up to 3840 x 2160p5
Best Impression (automatic continuous presence layouts)
Encryption and dual stream from any site
|
Network interfaces |
One Ethernet (RJ-45) 10/100/1000 for LAN
- One Ethernet (RJ-45) 10/100/1000 for direct pairing with camera
- One Ethernet (RJ-45) 10/100/1000 with Power over Ethernet (PoE) for direct pairing with Touch 10
- Wi-Fi 802.11a/b/g/n/ac 2.4 GHz/5 GHz for LAN. 2x2 MIMO
|
Power supplies |
100 to 240VAC, 50/60 Hz, 12VDC input
- Average 20W, peak 70W
|
Operating temperature and humidity |
0°C to 35°C (32°F to 95°F) ambient temperature
10% to 90% Relative Humidity (RH)
|
Storage and transport temperature |
-20°C to 60°C (-4°F to 140°F) at 10% to 90% RH (noncondensing) |
Bạn đang cần tư vấn về sản phẩm: CS-KITP60-K9 ?
Thông số kỹ thuật của thiết bị CS-KITP60-K9 Cisco Webex Room Kit Plus Precision 60 bạn check tại đây:
https://cnttshop.vn/storage/Datasheet/Cisco/video-conference/Cisco-Webex-Room-Kit-Plus-Precision-60.pdf
Khi mua license MultiSite, bộ hội họp trực tuyến Cisco CS-KITP60-K9 không giới hạn số điểm kết nối đồng thời, nhưng chất lượng âm thanh và hình ảnh tùy thuộc vào băng thông đường truyền nhé bạn.
bạn kết nối để hội họp trực tuyến giữa Cisco Webex CS-KITP60-K9 và Cisco Webex CS-ROOM55D-K9 bình thường miễn là có kết nối VPN hoặc vật lý giữa 2 site,và bộ CS-ROOM55D-K9 còn license để kết nối đến
CNTTShop cung cấp thiết bị, phụ kiện hội nghị truyền hình Cisco nhé bạn. Báo giá CS-CODEC-PLUS đã được gửi vào mail, bạn vui lòng kiểm tra để biết thông tin.
Hãng Cisco không có cable 7m dành cho bộ thiết nghị truyền hình Cisco webex CS-KITP60-K9, bạn có thể tham khảo cable 9m CAB-HDMI-MULT-9M (HDMI to USB-C, mini-DP and HDMI) ạ.
