Bandwidth
|
- Up to 3 Mbps
|
|
Minimum bandwidth for resolution/frame rate
|
- 720p30 from 768 kbps
- 1080p30 from 1472 kbps
|
|
Firewall traversal
|
Cisco TelePresence Expressway Technology |
|
Video standards
|
- H.263, H.263+, and H.264 |
|

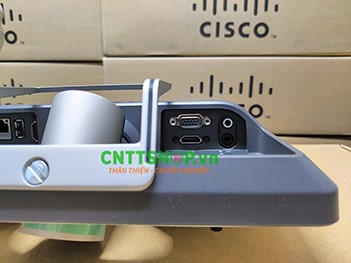

Video inputs
|
Two video inputs (HDMI or VGA selectable through user interface)
Supported Formats:
- 640x480 (VGA)
- 720x480
- 704x576 (4CIF)
- 800x600 (SVGA)
- 848x480
- 1024x768 (XGA)
- 1152x864 (XGA+)
- 1280x720 (720p)
- 1280x768 (WXGA)
- 1920 x 1080@30 (HD1080p)
Extended Display Identification Data (EDID)
|
|
Video output
|
HDMI Output Supported Formats:
- 1920 x 1080@60 fps (1080p60)
VESA Monitor Power Management
Extended Display Identification Data (EDID)
|
|
Live video resolutions
|
Live Video Resolutions (Encode and Decode):
- 176 x 144@30 (QCIF) (Decode only)
- 352 x 288@30 (CIF)
- 512 x 288@30 (w288p)
- 576 x 448@30 (448p)
- 768 x 448@30 (w448p)
- 704 x 576@30 (4CIF)
- 1024 x 576@30 (w576p)
- 640 x 480@30 (VGA)
- 800 x 600@30 (SVGA)
- 1024 x 768@30 (XGA)
- 1280 x 768@30 (WXGA)
- 1280 x 720@30 (HD720p)
- 1920 x 1080@30 (HD1080p)
|
|
Audio standards
|
- 64 kbps MPEG4 AAC-LD, OPUS, G.722, G.722.1, G.711mu, G.711a, G.729ab, and G.729 |
|
Audio features
|
- High-quality 20-kHz mono
- Two acoustic echo cancellers
- Automatic Gain Control (AGC)
- Automatic noise reduction
- Active lip synchronization
|
|
Audio inputs
|
- One internal microphone
- One external microphone, 4-pin mini-jack (Table Microphone 20 or Cisco Ceiling Microphone)
- One HDMI audio-in
|
|
Audio outputs
|
- One line out, mini-jack
- One HDMI, (digital main audio)
|
|
Dual stream
|
- H.239 (H.323) dual stream (CE8.2 or later)
- BFCP (SIP) dual stream
- Resolution up to 1080p5 (CE8.0 or later)
|
|
Multipoint support
|
- Cisco Ad-Hoc Conferencing (requires Cisco UCM, Cisco TelePresence Server, and Cisco TelePresence Conductor)
|
|
Protocols
|
- H.323, SIP
- H.323 (CE8.2 or later)
|
|
Embedded encryption
|
- SIP/H.323 point-to-point (H.323 with CE8.2 or later)
- Standards-based: Advanced Encryption Standard (AES)
- Automatic key generation and exchange
- Supported in dual stream
|
|
IP network features
|
- DNS lookup for service configuration
- Differentiated Services (QoS)
- IP adaptive bandwidth management (including flow control)
- Dynamic playout and lip-sync buffering
- Date and Time support via NTP
- Packet Loss based downspeeding
- URI Dialing
- TCP/IP
- DHCP
- 802.1x Network authentication
- 802.1Q Virtual LAN
- 802.1p (QoS and class of service [CoS])
- ClearPath
|
|
Call control
|
- Cisco Unified Communications Manager (CUCM)
+ Native registration with CUCM
+ Requires CUCM Version 8.6(2) or later with device pack for SX10 Quick Set
+ Basic CUCM provisioning
+ Firmware upgrade from CUCM
+ Cisco Discovery Protocol and DHCP option 150 support
+ Basic telephony features such as hold, resume, transfer, and corporate directory lookup
- Cisco Video Communication Server (VCS)
+ Native registration with VCS
- Cisco Webex
- Third-party H.323 Gatekeepers and standards-based SIP proxies |
|
IPv6 network support
|
- Dual-stack IPv4 and IPv6 for DHCP, Secure Shell (SSH), HTTP, Secure HTTP (HTTPS), DNS, and Differentiated Services (DiffServ)
- Support for both static and autoconfiguration (stateless address autoconfiguration) |
|
Security features
|
- Management through HTTPS and SSH
- IP administration password
- Menu administration password
- Disable IP services
- Network settings protection |
|
Certificate management
|
- Certificate Authority Proxy Function (CAPF) support for additional security
- Manufacturer-Installed Certificates (MIC)
- Locally Significant Certificates (LSC)
- X.509 Digital Certificates (DER encoded binary); both DER and Base-64 formats are acceptable for the client and server certificates; certificates with a key size of 1024, 2048, and 4096 are supported |
|

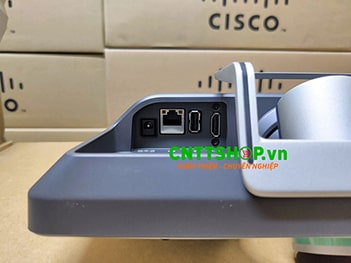

Network interfaces
|
- One PoE-enabled LAN connector (RJ-45) 100-Mbit |
|
Other interfaces
|
- One USB port for future usage
- One Micro USB port for debugging |
