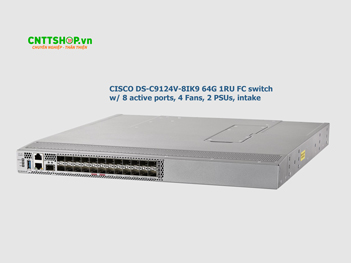

Cisco DS-C9124V-8IK9 FC Switch, 8 active FC ports 64G SW, 1RU, intake

Feature

Description

Product compatibility

Cisco MDS 9000 Family

Software compatibility

Cisco MDS 9000 NX-OS Release 9.3(1) or later

Protocols

- Fibre Channel standards

- FC-PI-6 (INCITS 512-2015)

- FC-PI-7 (INCITS 543-2019)

- FC-FS-4 (INCITS 488-2016)

- FC-FS-5 (INCITS 545-2019)

(Full list available upon request)

Fibre Channel ports

- Fixed-switch form factor with 24 SFP+ ports base

Security

- VSAN fabric isolation

- Intelligent packet inspection

- Hardware zoning by ACLs

- FC-SP authentication (switch-to-switch and host-to-switch)

- Role-Based Access Control (RBAC)

- Secure protocols: SSHv2, SNMPv3 (AES)

- Cisco TrustSec® payload encryption

- Secure Boot and anti-counterfeit technology

Performance

- Port speeds: 8-, 16-, 32-, and 64-Gbps autosensing

- Aggregate bandwidth: 1.5-Tbps full duplex

- Buffer credits: Up to 24,000 for a group of 24 ports (max 16,000 per port)

- Port groups: 1 group of 24 ports

- Port channels: Up to 24 load-balanced physical links

Diagnostics

- POST diagnostics

- Online Health Management System (OHMS)

- Fibre Channel tools (traceroute, ping, debug)

- Cisco Fabric Analyzer

- Syslog

- Port-level statistics

Serviceability

- Configuration file management

- Call Home

- Port beaconing

- System LEDs

- SNMP traps

Reliability and availability

- Cisco In-Service Software Upgrade (ISSU)

- Hot-swappable components (power supplies, fan trays, optics)

- Stateful process restart

- Fabric-based multipathing

- Per-VSAN fabric services

Network management

- Management through CLI, SNMPv3, and NX-API

- Access via out-of-band Ethernet and RS-232 serial ports

- USB power-on auto-provision port

- SMI-S compatibility

Programming interfaces

- Scriptable CLI

- Cisco DCNM/NDFC APIs

- NX-API

- Embedded Python interpreter

Physical dimensions (H x W x D)

1RU (1.72 x 17.299 x 18 in.) excluding PSU and fan-tray handles; Weight: 18.73 lb. (8.5 kg)

Power

- 80 Plus Platinum certified PSUs

- Options: 500W AC (exhaust or intake airflow); 1200W AC/HVAC/HVDC (bidirectional airflow)

- Input: 100–305V (AC/DC); Frequency: 50–60 Hz

- Max power consumption: 146W (24 ports with optics)

- Airflow: Back-to-front or front-to-back

Temperature range

- Operating: 32–104°F (0–40°C)

- Storage: –40–158°F (–40–70°C)

- Relative humidity: 10–90% (operating), 10–95% (storage)

- Altitude: –197 to 6500 ft (–60 to 2000m)

Approvals and compliance

- Safety: CE, UL 60950, IEC 60950

- EMC: FCC Part 15 Class A, EN 55022 Class A, CISPR 22 Class A

- RoHS compliance

Fabric services

- Name server

- Registered State Change Notification (RSCN)

- Fabric Configuration Server (FCS)

- In-order delivery

Advanced functions

- VSAN

- IVR

- NPV

- Port Channel with multipath load balancing

- Flow- and zone-based QoS

Supported Cisco optics and distances

For detailed information, refer to Cisco MDS 9000 Family pluggable transceivers documentation.
