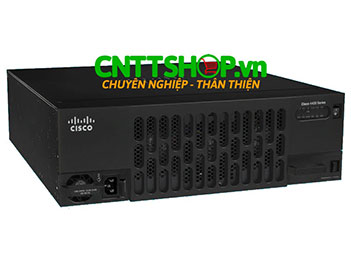

ISR4461/K9 Cisco ISR 4461 with 4 GE, 3 NIM slots, 1 ISC slot, 3 SM slots Router
Cisco ISR4461/K9 ISR 4461 with 4 GE, 3 NIM slots, 1 ISC slot, 3 SM slots Router
Cisco Part Number : ISR4461/K9
List Price : $
Bảo hành : 12 tháng
Made In : Asia
Thiết bị định tuyến ISR4461/K9 tạo thành một nền tảng WAN thông minh mang lại hiệu suất, tính bảo mật và khả năng hội tụ mà các văn phòng chi nhánh hiện nay cần. Cisco ISR4461/K9 hỗ trợ công nghệ Cisco IWAN, là một dịch vụ phần mềm thông minh cho phép bạn kết nối người dùng, thiết bị và vị trí văn phòng chi nhánh một cách đáng tin cậy và an toàn qua một loạt các kết nối WAN.
| View Datasheet ISR4461/K9 |
Công nghệ Cisco IWAN tự động định tuyến lưu lượng qua liên kết "tốt nhất" dựa trên các ứng dụng và điều kiện mạng up-to-the-minute cho những trải nghiệm ứng dụng tuyệt vời. Bạn có thể kiểm soát chặt chẽ hiệu suất ứng dụng, sử dụng băng thông, bảo mật dữ liệu và tính sẵn có của các liên kết mạng WAN - kiểm soát mà bạn cần khi các chi nhánh của bạn có 1 số doanh nghiệp quan trọng hơn.
Thông số kỹ thuật
|
Product Code |
Cisco ISR4461/K9 |
|
Aggregate Throughput |
1.5Gbps |
|
Aggregate Throughput (Performance License) |
3Gbps |
|
Aggregate CEF Only Throughput (Boost License) |
Over 7Gbps |
|
Total onboard WAN or LAN 10/100/1000 ports |
4 |
|
Total onboard WAN or LAN 10Gbps ports |
2 |
|
RJ-45-based ports |
4 |
|
SFP-based ports |
4 |
|
Enhanced service-module slot |
3 |
|
NIM (Network Interface Modules) slots |
3 |
|
OIR (all I/O modules) |
Yes |
|
Onboard ISC slot |
1 |
|
Default memory double-data-rate 3 (DDR3) error-correction-code (ECC) DRAM (Combined control/services/data planes) |
NA |
|
Maximum memory DDR3 ECC DRAM (Combined control/services/data planes) |
NA |
|
Default memory DDR3 ECC DRAM (data plane) |
4 GB |
|
Maximum memory DDR3 ECC DRAM (data plane) |
4 GB |
|
Default memory DDR3 ECC DRAM (control/services plane) |
8 GB |
|
Maximum memory DDR3 ECC DRAM (control/services plane) |
32 GB |
|
Flash Memory |
8 GB (default) / 32 GB (maximum) |
|
External USB 2.0 slots (type A) |
2 |
|
USB console port -type B mini (up to 115.2 kbps) |
1 |
|
Serial console port - RJ45 (up to 115.2 kbps) |
1 |
|
Serial auxiliary port - RJ45 |
1 |
|
Power-supply options |
Internal: AC, DC (roadmap) and PoE |
|
Redundant power supply |
Internal: AC, DC and PoE |
| Power Specifications | |
|
AC input voltage |
100 to 240 VAC autoranging |
|
DC Input Voltage Input Voltage Input Current |
48 – 60V 12A Max |
|
AC input frequency |
47 to 63 Hz |
|
AC input current range, AC power supply (maximum) |
7.1 to 3.0A |
|
AC input surge current |
60 A peak and less than 5 Arms per half cycle |
|
Maximum power with AC power supply (watts) |
1000W (no PoE) |
|
Maximum power with DC power supply (watts) |
437 (no PoE) |
| Maximum power with PoE power supply (platform only) (watts) |
1000 with PoE redundant 1450 with PoE boost no redundancy |
| Maximum endpoint PoE power available from PoE power supply (watts) | 500 W with optional redundancy |
| Maximum endpoint PoE power capacity with PoE boost (watts) | 950 W no redundancy |
| Sizes and Weights | |
| Dimensions (H x W x D) |
3.5 x 17.25 x 18.5 in 88.9 x 438.15 x 469.9 mm |
|
Shipping Box Dimensions (H x W x D) |
9.75 x 22.25 x 26 in (24.76 x 56.51 x 66.04 mm) |
| Rack-mount 19in. (48.3 cm) EIA | Included |
| Rack-mount 23in. (58.4 cm) EIA | Optional |
| Airflow | I/O side to bezel side |
| MTBF (Hours) | 480770 |
| Operating Conditions | |
| Temperature | 32 to 104ºF (0 to 40ºC) |
| Altitude |
0 – 10,000 ft (0 – 3,050 m) |
| Relative humidity | 5% to 85% |
| Short-term humidity | 5% to 90%, not to exceed 0.024 kg water/kg of dry air |
|
Acoustics: Sound pressure (Typical/ maximum) |
50.6/73.1 dBA |
|
Acoustics: Sound power (Typical/ maximum) |
58.2/78.8 dBA |
|
Nonoperating Conditions |
|
| Temperature | -40 to 158ºF (-40 to 70ºC) |
| Relative humidity | 5% to 95% |
| Altitude | 15,584 ft (4750m) |
License dùng cho router Cisco ISR4461/K9
| FL-4460-PERF-K9 | Increases the performance from base performance 1.5 Gbps to 3 Gbps |
| FL-4460-BOOST-K9 | Booster Performance License for 4460 Series Router |
Module Card sử dụng cho Router Cisco ISR4461/K9
| Part Number | Minimum IOS-XE Version |
Description |
|
UCS E-Series Server Blade |
||
| UCS-E180D-M2/K9 | 3.10 | UCS-E, double-wide, 8-core CPU, 2x8 Gb SD, 1x8 Gb RDIMM, 1-3 HDD |
| UCS-E160D-M1/K9 | 3.10 | UCS-E, double-wide, 6-core CPU, 2x8 Gb SD, 1x8 Gb RDIMM, 1-3 HDD |
| UCS-E160D-M2/K9 | 3.10 | UCS-E, double-wide, 6-core CPU, 2x8 Gb SD, 1x8 Gb RDIMM, 1-3 HDD. Note: Not available for the Cisco 2911 and 2901 |
| UCS-E160DP-M1/K9 | 3.10 | UCS-E,DoubleWide,6CoreCPU,2x8GSD, 1x8GRDIMM,1-2HDD,1PCIe |
| UCS-E160S-M3/K9 | 3.16.2 | UCS-E,SingleWide,Intel Broadwell 6 Core CPU, Up to 32 GB RAM, 1-2 HDD |
| UCS-E140D-M1/K9 | 3.10 | UCS-E, double-wide, 4-core CPU, 2x8 Gb SD, 1x8 Gb RDIMM, 1-3 HDD |
| UCS-E140DP-M1/K9 | 3.10 | UCS-E, double-wide, 4-core CPU, 2x8 Gb SD, 1x8 Gb RDIMM, 1-2 HDD, 1 PCIe |
| UCS-E140S-M1/K9 | 3.10 | UCS-E,SingleWide,4Cor CPU,2x8G SD,1x8GBUDIMM,1-2 HDD |
| UCS-E140S-M2/K9 | 3.10 | UCS E-Series, single-wide, Intel® Xeon® E3 1100 v2 Quad core processor, 8 GB RAM, 2 SD cards |
| UCS-EN120S-M2/K9 | 3.10 | UCS E-Series Network Compute Engine, 2-core CPU, 4-16 GB RAM, 1-2 HDD, 1-2 SD cards |
| UCS-EN140N-M2/K9 | 3.15.1 | UCS E-Series Network Compute Engine, 4C, 4 - 8GB RAM, 1 HDD |
|
Ethernet Switch |
||
| NIM-ES2-4 | 3.15 | Cisco 4-Port Gigabit Ethernet Switch NIM |
| NIM-ES2-8 | 3.15 | Cisco 8-Port Gigabit Ethernet Switch NIM |
| NIM-ES2-8-P | 3.15 | Cisco 8-Port Gigabit Ethernet Switch NIM with PoE Support |
| SM-X-ES3-16-P | 3.15 | 16-port POE layer 2/3 EtherSwitch Service Module |
| SM-X-ES3-24-P | 3.15 | 24-port POE layer 2/3 EtherSwitch Service Module |
| SM-X-ES3D-48-P | 3.15 | 48-port POE layer 2/3 EtherSwitch Service Module |
| Ethernet Routed-Port | ||
| NIM-1GE-CU-SFP | 3.15 | 1-port Gigabit Ethernet NIM, dual mode SFP or RJ45 |
| NIM-2GE-CU-SFP | 3.15 | 2-port Gigabit Ethernet NIM, dual mode SFP or RJ45 |
| SM-X-6X1G | 3.13.1 | 6-port Gigabit Ethernet SFP Module |
| SM-X-4X1G-1X10G | 3.13.1 | 4-port Gigabit Ethernet OR 1-port 10 Gigabit Ethernet SFP Module |
| Wireless WAN (3G, 4G, LTE) | ||
| NIM-4G-LTE-GA | 3.15.1 | 4G LTE NIM for Global (Europe, Australia & New Zealand) |
| NIM-4G-LTE-NA | 3.15.1 | 4G LTE NIM for North America AT&T and Canada |
| NIM-4G-LTE-ST | 3.15.1 | 4G LTE NIM for Sprint |
| NIM-4G-LTE-VZ | 3.15.1 | 4G LTE NIM for Verizon |
| NIM-4G-LTE-LA | 16.3.2 | 4G LTE for Asia Pacific, Australia and Latam |
| NIM-LTEA-EA | 16.3.2 | LTE Advanced for Europe and North America |
| NIM-LTEA-LA | 16.3.2 | LTE Advanced for Asia Pacific, Australia and Latam |
| T1, E1, and G.703 Multiflex Trunk Voice and WAN Interface Cards | ||
| NIM-1MFT-T1/E1 | 3.10 | 1-port multiflex trunk voice/clear-channel data T1/E1 module |
| NIM-2MFT-T1/E1 | 3.10 | 2 port Multi-flex Trunk Voice/Clear-channel Data T1/E1 Module |
| NIM-4MFT-T1/E1 | 3.10 | 4 port Multi-flex Trunk Voice/Clear-channel Data T1/E1 Module |
| NIM-8MFT-T1/E1 | 3.10 | 8 port Multi-flex Trunk Voice/Clear-channel Data T1/E1 Module |
| Packet Voice Digital Signal Processor Modules 4 | ||
| SM-X-PVDM-3000 | 3.16.1 | 3080-channel high-density voice DSP module |
| SM-X-PVDM-2000 | 3.16.1 | 2048-channel high-density voice DSP module |
| SM-X-PVDM-1000 | 3.16.1 | 1024-channel high-density voice DSP module |
| SM-X-PVDM-500 | 3.16.1 | 768-channel high-density voice DSP module |
| PVDM4-256 | 3.10 | 256-channel voice DSP module |
| PVDM4-128 | 3.10 | 128-channel voice DSP module |
| PVDM4-64 | 3.10 | 64-channel voice DSP module |
| PVDM4-32 | 3.10 | 32-channel voice DSP module |
| Voice Interface Cards | ||
| NIM-2FXS | 3.16 | 2-port FXS NIM |
| NIM-4FXS | 3.16 | 4-port FXS NIM |
| NIM-2FXO | 3.16 | 2-port FXO NIM |
| NIM-4FXO | 3.16 | 4-port FXO NIM |
| NIM-2FXSP | 16.5 | 2-port FXS NIM |
| NIM-4FXSP | 16.5 | 4-port FXS NIM |
| NIM-2FXS/4FXOP | 16.5 | 2-port FXS & 4-port FXO NIM |
| NIM-2FXS/4FXO | 3.16 | 2-port FXS & 4-port FXO NIM |
| NIM-4E/M | 3.16 | 4-Port E/M NIM |
| NIM-2BRI-NT/TE | 3.16 | 2-port BRI (NT and TE) NIM |
| NIM-4BRI-NT/TE | 3.16 | 4-port BRI (NT and TE) NIM |
| SM-X-8FXS/12FXO | 16.7.1 | 8-port FXS & 12-port FXO single-wide Service Module |
| SM-X-16FXS/2FXO | 16.7.1 | 16-port FXS & 2-port FXO single-wide Service Module |
| SM-X-24FXS/4FXO | 16.7.1 | 24-port FXS & 4-port FXO single-wide Service Module |
| SM-X-72FXS | 16.7.1 | 72-port FXS double-wide Service Module |
| Broadband | ||
| NIM-VAB-A | 3.14 | Multi Mode VDSL2/ADSL/2/2+ NIM Annex A |
| NIM-VA-B | 3.14 | Multi Mode VDSL2/ADSL/2/2+ NIM Annex B |
| NIM-VAB-M | 3.14 | Multi Mode VDSL2/ADSL/2/2+ NIM Annex M |
| Serial WAN Interface | ||
| SM-X-1T3/E3 | 3.9 | 1-port clear-channel T3/E3 Service Module |
| NIM-1T | 3.13 | 1-Port Serial High-Speed WAN Interface Card |
| NIM-2T | 3.13 | 2-Port Serial High-Speed WAN Interface Card |
| NIM-4T | 3.13 | 4-Port Serial High-Speed WAN Interface Card |
| Async WAN Interface | ||
| NIM-16A | 16.4.1 | 16-port Asynchronous Module |
| NIM-24A | 16.4.1 | 24-port Asynchronous Module |
| Channelized T1/E1 and ISDN PRI | ||
| NIM-1CE1T1-PRI | 3.10 | 1 port Multi-flex Trunk Voice/Channelized Data T1/E1 Module |
| NIM-2CE1T1-PRI | 3.10 | 2 port Multi-flex Trunk Voice/Channelized Data T1/E1 Module |
| NIM-8CE1T1-PRI | 3.10 | 8 port Multi-flex Trunk Voice/Channelized Data T1/E1 Module |
| Storage | ||
| SSD-MSATA-200G (on motherboard) | 3.13.1 | 200 GB, mSATA Solid State Disk (for ISR motherboard slot) |
| NIM-SSD | 3.10 | NIM Carrier Card for up to 2 SSD Drives |
| SSD-SATA-200G | 3.10 | 200 GB, SATA Solid State Disk for NIM-SSD |
| SSD-SATA-400G | 400 GB, SATA Solid State Disk for NIM-SSD | |
| SSD-SATA-800G | 800 GB, SATA Solid State Disk for NIM-SSD | |
| Adaptors | Yes | |
| SM-X-NIM-ADPTR | 3.14 | SM-X Adaptor for one NIM module |
