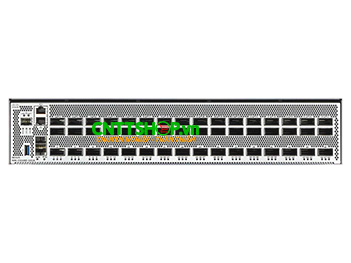

| Datasheet Cisco Nexus N9K-C9348D-GX2A |
| Physical |
| Port |
48-port 400G QSFP-DD ports and 2-port 1/10G SFP+ ports
USB: 1 port
RS-232 serial console ports: 1
Management ports: 2 (1 x10/100/1000BASE-T and 1 x1-Gbps SFP)
CPU: 6 cores |
| Buffer |
120MB |
| System memory |
32GB |
| SSD |
128GB |
| Power and cooling |
| Power |
3200W AC |
| Input voltage |
100 to 240V AC |
| Hot-swappable |
4 fans, 3+1 redundancy |
| Frequency |
50 to 60 Hz (AC) |
| Efficiency |
90% or greater
(20 to 100% load) |
| Port-side intake |
|
| Typical power |
1380 |
| Maximum power |
3124 |
| Environmental |
| Physical (H x W x D) |
3.45 x17.41 x 29.83 in.
(8.76 x 44.23 x 75.76 cm) |
| Weight |
51.2 lb (23.2 kg) |
| Acoustics |
79.9 dBA at 50% fan speed, 87.6 dBA at 70% fan speed, and 96.4 dBA at 100% fan speed |
| Operating temperature |
2 to 104°F (0 to 40°C) |
| Nonoperating (storage) temperature |
–40 to 158°F
(–40 to 70°C) |
| Humidity |
5 to 85% (noncondensing) |
| Altitude |
0 to 13,123 ft
(0 to 4000m)0 to 13,123 ft
(0 to 4000m) |
| Mean Time Between Failure (MTBF) |
125,780 hours |
| Performance |
| Number of slices |
4 slice-pairs |
| Maximum number of IPv4 Longest Prefix Match (LPM) routes |
~1 Million |
| Maximum number of IPv4 host entries |
~1 Million |
| Maximum number of MAC address entries |
~500K |
| Maximum number of multicast routes |
256,000 |
| Number of Internet Group Management Protocol (IGMP) snooping groups |
Maximum: 32,000 |
| Maximum number of Access-Control-List (ACL) entries |
6000 ingress/slice
3000 egress/slice
Max: 48,000 ingress, 24,000 egress |
| Maximum number of VLANs |
4096 |
| Number of Virtual Routing and Forwarding (VRF) instances |
Maximum: 16,000 |
| Maximum number of ECMP paths |
64 |
| Maximum number of port channels |
512 |
| Maximum number of links in a port channel |
32 |
| Number of active SPAN sessions |
32 (4 Active) |
| Maximum number of VLANs in Rapid per-VLAN Spanning Tree (RPVST) instances |
4K |
| Maximum number of Hot-Standby Router Protocol (HSRP) groups |
1000 |
| Maximum number of Multiple Spanning Tree (MST) instances |
64 |
| Flow-table size |
128K/slice |
| Number of Network Address Translation (NAT) entries |
2000 |
| Number of Output Queues |
8 |
| Regulatory standards compliance: safety and EMC |
| Regulatory compliance |
Products should comply with CE Markings according to directives 2004/108/EC and 2006/95/EC |
| Safety |
● UL 60950-1 Second Edition
● CAN/CSA-C22.2 No. 60950-1 Second Edition
● EN 60950-1 Second Edition
● IEC 60950-1 Second Edition
● AS/NZS 60950-1
● GB4943
|
| EMC: Emissions |
● 47CFR Part 15 (CFR 47) Class A
● AS/NZS CISPR22 Class A
● CISPR22 Class A
● EN55022 Class A
● ICES003 Class A
● VCCI Class A
● EN61000-3-2
● EN61000-3-3
● KN22 Class A
● CNS13438 Class A
|
| EMC: Immunity |
● EN55024
● CISPR24
● EN300386
● KN 61000-4 series
|
| RoHS |
● The product is RoHS-6 compliant with exceptions for leaded-Ball Grid-Array (BGA) balls and lead
press-fit connectors. |
