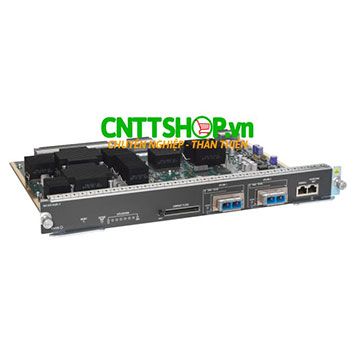

WS-X45-SUP6L-E Cisco Catalyst 4500E Series Supervisor 6L-E
Part Number : WS-X45-SUP6L-E
Spare Part Number : WS-X45-SUP6L-E=
Bảo hành : 12 tháng
Made In : Asia
Cisco Supervisor WS-X45-SUP6L-E cung cấp khả năng mở rộng cổng linh hoạt từ lớp 2 đến lớp 4 và định tuyến cho cả các nhà cung cấp dịch vụ và doanh nghiệp. Cisco Supervisor WS-X45-SUP6L-E tối ưu hóa cho các tủ mạng, mạng văn phòng chi nhánh, hoặc điểm phân phối Layer 3. Cisco WS-X45-SUP6L-E cung cấp hiệu suất và khả năng mở rộng để xử lý các ứng dụng mạng ngày nay và tương lai.
Cisco Supervisor WS-X45-SUP6L-E hỗ trợ các giao thức định tuyến đầy đủ, Open Shortest Path First (OSPF), Enhanced IGRP (EIGRP), Giao thức Border Gateway (BGP) và nhiều tính năng tiên tiến khác với gói dịch vụ Enterprise Services. (Lưu ý: Bạn phải sử dụng phần mềm Cisco IOS® Phiên bản 12.2 (53) SG2 hoặc mới hơn cho dịch vụ Hỗ trợ Doanh nghiệp).
Thông số kỹ thuật Cisco Supervisor WS-X45-SUP6L-E
| Performance and Scalability Features | |
| Centralized wired switching capacity | 280 Gbps |
| Throughput |
225 Mpps for IPv4 110 Mpps for IPv6 225 Mpps for L2 Bridging |
| IPv4 Routing entries | 57,000 |
| IPv6 routing entries | 30,000 |
| Synchronous Dynamic RAM (SDRAM) | Synchronous dynamic RAM (SDRAM) |
| Security and QoS hardware entries | 64,000 (32,000 per direction) |
| Active VLANs | 4094 |
| Switched Virtual Interfaces (SVIS) | 2048 |
| Switched Port Analyzer (SPAN) | Maximum of 8 sessions: ingress and egress |
| Supervisor Engine 6L-E IPv6 Capabilities | |
| IPv6 support |
Unicast and Multicast forwarding done in hardware
|
| IPv6 performance |
110 Mpps
|
| IPv6 Routing entries |
30,000
|
| Dynamic Hardware Route Table allocations |
Yes
|
| Supervisor Engine 6L-E Enhanced QoS Features | |
| QoS hardware entries |
16,000 per direction (32,000 total)
|
| Number of Tx queues |
Fixed queues up to 8
|
| Maximum Tx queue size |
Dynamic 16 to 8184 packets per queue, depending on the number and type of line card and the number of queues configured on the port (refer to documentation for more details)
|
| Dynamic queue sizes |
Yes
|
| Configurable classification mapping tables |
Yes
|
| Match IP or MAC header |
Yes
|
| Modular QoS compliant |
Yes
|
| DBL: Congestion-avoidance feature |
Yes
|
| QoS sharing |
Supported on all ports
|
| Shaping |
Yes, per Tx queue
|
| Broadcast suppression |
Supported in hardware for all ports
|
| Multicast suppression |
Supported in hardware for all ports
|
| Environmental Conditions | |
| Operating temperature |
32 to 104ºF (0 to 40ºC)
|
| Storage temperature |
-40 to 167ºF (-40 to 75ºC)
|
| Relative humidity |
10 to 90 percent, noncondensing
|
| Operating altitude |
-60 to 2000m
|
| Standards Compliance | |
| Regulatory compliance | CE marking |
| Safety |
- UL 60950CAN/CSA-C22.2 No. 60950
- EN 60950
- IEC 60950
- TS 001
- AS/NZS 3260
|
| EMC |
- FCC Part 15 (CFR 47) Class A
- ICES-003 Class A
- EN55022 Class A
- CISPR22 Class A
- AS/NZS 3548 Class A
- VCCI Class A
- ETS 300 386
- EN 55022
- EN 55024
- EN 61000-6-1
- EN 50082-1
- EN 61000-3-2
- EN 61000-3-3
|
| Industry EMC, safety, and environmental standards |
- GR-63-Core Network Equipment Building Standards (NEBS) Level 3
- GR-1089-Core Level 3
- ETS 300 019 Storage Class 1.1
- ETS 300 019 Transportation Class 2.3 (pending)
- ETS 300 019 Stationary Use Class 3.1
- ETS 300 386
- EN 50121-4
|
| ROHS compliance | ROHS5 |
Cisco Supervisor WS-X45-SUP6L-E hỗ trợ các Line Cards sau
|
Part Number |
Product Name |
|
WS-X4748-UPOE+E |
Cisco Catalyst 4500E Series, 48-port 802.3af PoE, 802.3at PoEP, and UPoE 10/100/1000 |
|
WS-X4748-RJ45-E |
Cisco Catalyst 4500E Series, 48-port 10/100/1000 (RJ-45) |
|
WS-X4748-RJ45V+E |
Cisco Catalyst 4500E Series, 48-port PoE 802.3at 10/100/1000 (RJ-45) |
|
WS-X4712-SFP+E |
Cisco Catalyst 4500E Series, 12-port 10 Gigabit Ethernet (SFP+) |
|
WS-X4748-SFP-E |
Cisco Catalyst 4500E Series 48-port Gigabit Ethernet (SFP) |
|
WS-X4724-SFP-E |
Cisco Catalyst 4500E Series 24-port Gigabit Ethernet (SFP) |
|
WS-X4712-SFP-E |
Cisco Catalyst 4500E Series 12-port Gigabit Ethernet (SFP) |
|
WS-X4648-RJ45V-E |
Cisco Catalyst 4500E Series, 48-port 802.3af PoE 10/100/1000 (RJ-45) |
|
WS-X4648-RJ45V+E |
Cisco Catalyst 4500E Series, 48-port Premium PoE 10/100/1000 (RJ-45) |
|
WS-X4648-RJ45-E |
Cisco Catalyst 4500E Series, 48-port 10/100/1000 (RJ-45) |
|
WS-X4640-CSFP-E |
Cisco catalyst 4500E Series, 40- and 80-port SFP/CSFP Gigabit Ethernet line card |
|
WS-X4606-X2-E |
Cisco Catalyst 4500E Series, 6-port 10 Gigabit Ethernet (X2) |
|
WS-X4624-SFP-E |
Cisco Catalyst 4500E Series, 24-port Gigabit Ethernet (SFP) |
|
WS-X4612-SFP-E |
Cisco Catalyst 4500E Series 12-port Gigabit Ethernet (SFP) |
|
CVR-X2-SFP |
Twin gigabit converter module |
|
WS-X4748-12X48U+E |
Cisco Catalyst 4500E Series 48-Port (RJ-45) Line Card with 12 Multigigabit Ports and 36 10/100/1000 Ports with 802.3af PoE, 802.3at PoEP, and UPOE |
|
WS-X4148-FE-BD-LC |
Cisco Catalyst 4500 Fast Ethernet Switching Module, 48-port 100BASE-BX-D SMF (LC) |
|
WS-X4124-FX-MT |
Cisco Catalyst 4000 Fast Ethernet Switching Module, 24-port 100BASE-FX (MT-RJ) |
|
WS-X4148-FX-MT |
Cisco Catalyst 4500 Fast Ethernet Switching Module, 48-port 100BASE-FX multimode fiber (MMF) |
|
WS-X4124-RJ45 |
Cisco Catalyst 4500 10/100 Module, 24 ports (RJ-45) |
|
WS-X4148-RJ |
Cisco Catalyst 4500 10/100 Module, 48 ports (RJ-45) |
|
WS-X4148-RJ21 |
Cisco Catalyst 4500 10/100 Module, 48-port telco (4 x RJ-21) |
|
WS-X4248-RJ21V |
Cisco Catalyst 4500 PoE 802.3af 10/100, 48 ports (RJ-21) |
|
WS-X4224-RJ45V |
Cisco Catalyst 4500 PoE 803.3af 10/100, 24 ports (RJ-45) |
|
WS-X4248-RJ45V |
Cisco Catalyst 4500 PoE 802.3af 10/100, 48 ports (RJ-45) |
|
WS-X4248-FE-SFP |
Cisco Catalyst 4500 Fast Ethernet Switching Module, 48-port 100BASE-X (SFP) |
|
WS-X4232-GB-RJ |
Cisco Catalyst 4500 32-Port 10/100 (RJ-45), 2 Gigabit Ethernet (GBIC) modules |
|
WS-X4302-GB |
Cisco Catalyst 4500 Gigabit Ethernet Module, 2 ports (GBIC) |
|
WS-X4306-GB |
Cisco Catalyst 4500 Gigabit Ethernet Module, 6 ports (GBIC) |
|
WS-X4506-GB-T |
Cisco Catalyst 4500 Gigabit Ethernet Module, 6 ports 10/100/1000 802.3af PoE or 1000BASE-X (SFP) |
|
WS-X4418-GB |
Cisco Catalyst 4500 Gigabit Ethernet Module, server switching 18 ports (GBIC) |
|
WS-X4448-GB-SFP |
Cisco Catalyst 4500 Gigabit Ethernet Module, 48 ports 1000BASE-X (optional SFPs) |
|
WS-X4424-GB-RJ45 |
Cisco Catalyst 4500 24-Port 10/100/1000 Module (RJ-45) |
|
WS-X4448-GB-RJ45 |
Cisco Catalyst 4500 48-Port 10/100/1000 Module (RJ-45) |
|
WS-X4548-GB-RJ45 |
Cisco Catalyst 4500 Enhanced 48-Port 10/100/1000 Module (RJ-45) |
|
WS-X4524-GB-RJ45V |
Cisco Catalyst 4500 PoE 802.3af 10/100/1000, 24 ports (RJ-45) |
|
WS-X4548-GB-RJ45V |
Cisco Catalyst 4500 PoE 802.3af 10/100/1000, 48 ports (RJ-45) |
|
WS-X4548-RJ45V+ |
Catalyst 4500 PoE+ Ready 10/100/1000, 48 ports (RJ-45) |
Cisco Supervisor WS-X45-SUP6L-E sử dụng được cho các Switch Cisco sau
|
Product Number |
Description |
|
Cisco Catalyst E-Series 4503 switch (3-slot chassis), fan, no power supply |
|
|
Cisco Catalyst E-Series 4506 switch (6-slot chassis), fan, no power supply |
|
|
Cisco Catalyst E-Series 4507R+E switch (7-slot chassis), fan, no power supply, redundant supervisor capable |
|
|
Cisco Catalyst E-Series 4510R+E switch (10-slot chassis), fan, no power supply; redundant supervisor capable |
|
|
Cisco Catalyst 4500 Classic |
|
|
Cisco Catalyst 4500 E-Series |
|
