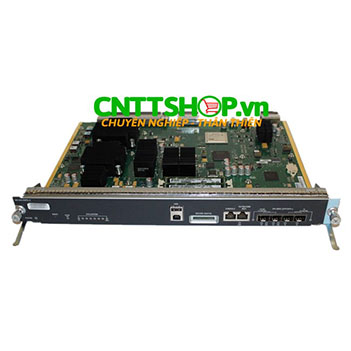

WS-X45-SUP7L-E Cisco Catalyst 4500E Series Supervisor 7L-E, 520 Gbps Card

Name: WS-X45-SUP7L-E
Brand: CISCO
SKU: WS-X45-SUP7L-E
Availability: InStock
Rating: 5 (45 reviews)

Part Number : WS-X45-SUP7L-E
Spare Part Number : WS-X45-SUP7L-E=
Bảo hành : 12 tháng
Made In : Asia

Cisco Supervisor WS-X45-SUP7L-E cung cấp khả năng mở rộng cổng linh hoạt từ lớp 2 đến lớp 4 và định tuyến cho cả các nhà cung cấp dịch vụ và doanh nghiệp. Cisco Supervisor WS-X45-SUP7L-E tối ưu hóa cho các tủ mạng, mạng văn phòng chi nhánh, hoặc điểm phân phối Layer 3. Cisco WS-X45-SUP7L-E cung cấp hiệu suất và khả năng mở rộng để xử lý các ứng dụng mạng ngày nay và tương lai.

Cisco Supervisor WS-X45-SUP7L-E hoạt động ở chế độ nonredundant với dòng Cisco Catalyst 4503, 4503-E, 4506, and 4506-E chassis và chế độ redundant ở các dòng Cisco Catalyst 4507R chassis (slots 1 và 2) và Cisco Catalyst 4507R-E/4507R+E chassis (slots 3 và 4).

Thông số kỹ thuật Cisco Supervisor WS-X45-SUP7L-E

Performance and Scalability Features
Centralized wired switching capacity	520 Gbps
Per-slot switching capacity	48 Gbps
Throughput	- 225 Mpps for IPv4 - 110 Mpps for IPv6 - 225 Mpps for L2 Bridging
Hardware-forwarded IPv4 routing entries	64,000
IPv6 routing entries	32,000
Multicast routes	32,000
CPU	Dual core; 1.5 GHz
CPU queues	64
Synchronous Dynamic RAM (SDRAM)	2 GB
Nonvolatile RAM (NVRAM)	1 GB
Security and QoS hardware entries	64,000
Dynamic Host Configuration Protocol (DHCP) snooping entries	12,000
Cisco Network Admission Control (NAC)	4,000
MAC addresses	55,000
Active VLANs	4094
Address Resolution Protocol (ARP) entries	47,000
Spanning Tree Protocol instances	12,000
Switched Virtual Interfaces (SVIS)	4,094
Switched Port Analyzer (SPAN)	Maximum of 8 sessions: ingress or egress
Software Requirements	Cisco IOS XE Software Release 3.1.0 SG
Supervisor Engine 7-E IPv6 Capabilities
IPv6 support	Unicast and Multicast forwarding done in hardware
IPv6 performance	110 Mpps
IPv6 Routing entries	32,000
Dynamic Hardware Route Table allocations	Yes
MLD Snooping for IPv6	Yes, in hardware
Unicast Reverse Path Forwarding Version 6 (URPFv6): Strict mode	Yes, in hardware
Environmental Conditions
Operating temperature	32 to 104ºF (0 to 40ºC)
Storage temperature	-40 to 167ºF (-40 to 75ºC)
Relative humidity	10 to 90 percent, noncondensing
Operating altitude	-60 to 3000m
Standards Compliance
Regulatory compliance	CE marking
Safety	- UL 60950CAN/CSA-C22.2 No. 60950 - EN 60950 - IEC 60950 - TS 001 - AS/NZS 3260
EMC	- FCC Part 15 (CFR 47) Class A - ICES-003 Class A - EN55022 Class A - CISPR22 Class A - AS/NZS 3548 Class A - VCCI Class A - ETS 300 386 - EN 55022 - EN 55024 - EN 61000-6-1 - EN 50082-1 - EN 61000-3-2 - EN 61000-3-3
Industry EMC, safety, and environmental standards	- GR-63-Core Network Equipment Building Standards (NEBS) Level 3 - GR-1089-Core Level 3 - ETS 300 019 Storage Class 1.1 - ETS 300 019 Transportation Class 2.3 (pending) - ETS 300 019 Stationary Use Class 3.1 - ETS 300 386 - EN 50121-4
ROHS compliance	ROHS5

Cisco Supervisor WS-X45-SUP7L-E hỗ trợ các Line Cards sau

Part Number	Product Name
WS-X4748-UPOE+E	Cisco Catalyst 4500E Series, 48-port 802.3af PoE, 802.3at PoEP, and UPoE 10/100/1000
WS-X4748-RJ45-E	Cisco Catalyst 4500E Series, 48-port 10/100/1000 (RJ-45)
WS-X4748-RJ45V+E	Cisco Catalyst 4500E Series, 48-port PoE 802.3at 10/100/1000 (RJ-45)
WS-X4712-SFP+E	Cisco Catalyst 4500E Series, 12-port 10 Gigabit Ethernet (SFP+)
WS-X4748-SFP-E	Cisco Catalyst 4500E Series 48-port Gigabit Ethernet (SFP)
WS-X4724-SFP-E	Cisco Catalyst 4500E Series 24-port Gigabit Ethernet (SFP)
WS-X4712-SFP-E	Cisco Catalyst 4500E Series 12-port Gigabit Ethernet (SFP)
WS-X4648-RJ45V-E	Cisco Catalyst 4500E Series, 48-port 802.3af PoE 10/100/1000 (RJ-45)
WS-X4648-RJ45V+E	Cisco Catalyst 4500E Series, 48-port Premium PoE 10/100/1000 (RJ-45)
WS-X4648-RJ45-E	Cisco Catalyst 4500E Series, 48-port 10/100/1000 (RJ-45)
WS-X4640-CSFP-E	Cisco catalyst 4500E Series, 40- and 80-port SFP/CSFP Gigabit Ethernet line card
WS-X4606-X2-E	Cisco Catalyst 4500E Series, 6-port 10 Gigabit Ethernet (X2)
WS-X4624-SFP-E	Cisco Catalyst 4500E Series, 24-port Gigabit Ethernet (SFP)
WS-X4612-SFP-E	Cisco Catalyst 4500E Series 12-port Gigabit Ethernet (SFP)
CVR-X2-SFP	Twin gigabit converter module
WS-X4748-12X48U+E	Cisco Catalyst 4500E Series 48-Port (RJ-45) Line Card with 12 Multigigabit Ports and 36 10/100/1000 Ports with 802.3af PoE, 802.3at PoEP, and UPOE
WS-X4148-FE-BD-LC	Cisco Catalyst 4500 Fast Ethernet Switching Module, 48-port 100BASE-BX-D SMF (LC)
WS-X4124-FX-MT	Cisco Catalyst 4000 Fast Ethernet Switching Module, 24-port 100BASE-FX (MT-RJ)
WS-X4148-FX-MT	Cisco Catalyst 4500 Fast Ethernet Switching Module, 48-port 100BASE-FX multimode fiber (MMF)
WS-X4124-RJ45	Cisco Catalyst 4500 10/100 Module, 24 ports (RJ-45)
WS-X4148-RJ	Cisco Catalyst 4500 10/100 Module, 48 ports (RJ-45)
WS-X4148-RJ21	Cisco Catalyst 4500 10/100 Module, 48-port telco (4 x RJ-21)
WS-X4248-RJ21V	Cisco Catalyst 4500 PoE 802.3af 10/100, 48 ports (RJ-21)
WS-X4224-RJ45V	Cisco Catalyst 4500 PoE 803.3af 10/100, 24 ports (RJ-45)
WS-X4248-RJ45V	Cisco Catalyst 4500 PoE 802.3af 10/100, 48 ports (RJ-45)
WS-X4248-FE-SFP	Cisco Catalyst 4500 Fast Ethernet Switching Module, 48-port 100BASE-X (SFP)
WS-X4232-GB-RJ	Cisco Catalyst 4500 32-Port 10/100 (RJ-45), 2 Gigabit Ethernet (GBIC) modules
WS-X4302-GB	Cisco Catalyst 4500 Gigabit Ethernet Module, 2 ports (GBIC)
WS-X4306-GB	Cisco Catalyst 4500 Gigabit Ethernet Module, 6 ports (GBIC)
WS-X4506-GB-T	Cisco Catalyst 4500 Gigabit Ethernet Module, 6 ports 10/100/1000 802.3af PoE or 1000BASE-X (SFP)
WS-X4418-GB	Cisco Catalyst 4500 Gigabit Ethernet Module, server switching 18 ports (GBIC)
WS-X4448-GB-SFP	Cisco Catalyst 4500 Gigabit Ethernet Module, 48 ports 1000BASE-X (optional SFPs)
WS-X4424-GB-RJ45	Cisco Catalyst 4500 24-Port 10/100/1000 Module (RJ-45)
WS-X4448-GB-RJ45	Cisco Catalyst 4500 48-Port 10/100/1000 Module (RJ-45)
WS-X4548-GB-RJ45	Cisco Catalyst 4500 Enhanced 48-Port 10/100/1000 Module (RJ-45)
WS-X4524-GB-RJ45V	Cisco Catalyst 4500 PoE 802.3af 10/100/1000, 24 ports (RJ-45)
WS-X4548-GB-RJ45V	Cisco Catalyst 4500 PoE 802.3af 10/100/1000, 48 ports (RJ-45)
WS-X4548-RJ45V+	Catalyst 4500 PoE+ Ready 10/100/1000, 48 ports (RJ-45)

License sử dụng cho Cisco Supervisor WS-X45-SUP7L-E

C4500E-LB	LAN BASE software license
C4500E-IPB	IP BASE software license
C4500E-LIC=	Base product ID for paper delivered software upgrade licenses
C4500E-LB-IPB	LAN BASE to IP BASE upgrade license (paper delivery)
C4500E-LB-ES	LAN BASE to Enterprise Services upgrade license (paper delivery)
C4500E-IP-ES	IP BASE to Enterprise Services upgrade license (paper delivery)
C4500E-LIC-PAK	Base product ID for paper delivered software licenses for spare Supervisor Engine 7L-E
C4500E-IP-ES-S	IP BASE to Enterprise Services upgrade license for spare Supervisor Engine 7L-E (paper delivery)
C4500E-IPB-S	IP BASE software license for spare Supervisor Engine 7L-E (paper delivery)
L-C4500-LIC=	Base product ID for electronically delivered software upgrade licenses
L-C4500E-LB-IP	LAN BASE to IP BASE upgrade license (electronically delivered)
L-C4500E-IP-ES	IP BASE to Enterprise Services upgrade license (electronically delivered)
L-C4500E-LB-ES	LAN BASE to Enterprise Services upgrade license (electronically delivered)
SD-X45-2GB-E	Cisco Catalyst 4500 2GB DRAM Memory for Sup 7L-E
USB-X45-4GB-E	Cisco Catalyst 4500 4GB USB device for Sup 7L-E

Cisco Supervisor WS-X45-SUP7L-E sử dụng được cho các Switch Cisco sau

Product Number	Description
WS-C4503-E	Cisco Catalyst E-Series 4503 switch (3-slot chassis), fan, no power supply
WS-C4506-E	Cisco Catalyst E-Series 4506 switch (6-slot chassis), fan, no power supply
WS-C4507R+E	Cisco Catalyst E-Series 4507R+E switch (7-slot chassis), fan, no power supply, redundant supervisor capable
WS-C4510R+E	Cisco Catalyst E-Series 4510R+E switch (10-slot chassis), fan, no power supply; redundant supervisor capable
