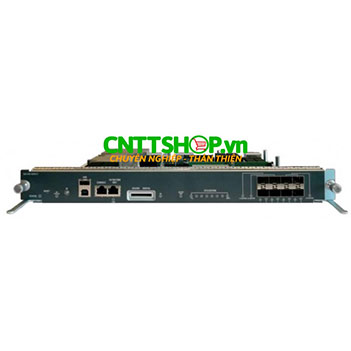

Cisco WS-X45-SUP8-E Catalyst 4500E Series Access Supervisor

Name: WS-X45-SUP8-E
Brand: CISCO
SKU: WS-X45-SUP8-E
Availability: InStock
Rating: 5 (45 reviews)

Part Number : WS-X45-SUP8-E
Spare Part Number : WS-X45-SUP8-E=
Bảo hành : 12 tháng
Made In : Asia

Cisco WS-X45-SUP8-E Supervisor là công cụ giám sát truy cập và kiểm soát tập thể cấp doanh nghiệp được thiết kế để cung cấp tới 928 Gbps đường truyền truy cập cho mỗi khe hệ thống tới 4500 Chassis. Nó cũng hỗ trợ tối đa 20 Gbps wireless. Supervisor WS-X45-SUP8-E cung cấp 48 Gbps mỗi khe với Flex NetFlow (FNF), tích hợp Wireshark và bảo mật tiên tiến cùng với Tổng chi phí sở hữu (TCO) hợp lý.

Supervisor WS-X45-SUP8-E với 8 cổng 10 Gigabit Ethernet hỗ trợ PoE, PoE Plus (PoE+) và Cisco Universal PoE (Cisco UPOE). Cisco WS-X45-SUP8-E là công cụ giám sát truy cập hàng đầu của Cisco trong Cisco Catalyst Family.

Thông số kỹ thuật Cisco Supervisor WS-X45-SUP8-E

Performance and Scalability Features
Centralized wired switching capacity	Up to 928 Gbps
Wireless termination capacity	Up to 20 Gbps
Per-slot switching capacity	48 Gbps
Throughput	- 250 Mpps for IPv4 - 125 Mpps for IPv6
IPv4 routing entries	256,000
IPv6 routing entries	128,000
Multicast routes	32,000
CPU	Quad core; 2.0 GHz
CPU queues	64
Synchronous Dynamic RAM (SDRAM)	4 GB
Nonvolatile RAM (NVRAM)	2 GB
Security and QoS hardware entries	128,000
Dynamic Host Configuration Protocol (DHCP) Snooping entries	12,000
MAC addresses	55,000
Active VLANs	4094
Address Resolution Protocol (ARP) entries	47,000
Spanning Tree Protocol instances	10,000
Switched Virtual Interfaces (SVIs)	4094
Switched Port Analyzer (SPAN)	Maximum of 8 bidirectional sessions
Summary of Supervisor Engine 9-E IPv6 Capabilities
IPv6 support	Unicast and multicast forwarding done in hardware
IPv6 performance	125 Mpps
IPv6 routing entries	128,000
Dynamic hardware route table allocations	Yes
MLD snooping for IPv6	Yes, in hardware
Unicast Reverse Path Forwarding Version 6 (URPFv6): Strict mode	Yes, in hardware
Industry standards	- Ethernet: IEEE 802.3 - 10 Gigabit Ethernet: IEEE 802.3ae - IEEE 802.1D Spanning Tree Protocol - IEEE 802.1w Rapid Reconfiguration of Spanning Tree - IEEE 802.1s Multiple VLAN Instances of Spanning Tree - IEEE 802.3ad Link Aggregation Control Protocol (LACP) - IEEE 802.1p CoS Prioritization - IEEE 802.1Q VLAN - IEEE 802.1X User Authentication - RMON I and II standards
Software requirements	Cisco IOS XE Software Release IOS XE 3.10
Environmental conditions	- Operating temperature: 32° to 104°F (0° to 40°C) - Storage temperature: -40° to 167°F (-40° to 75°C) - Relative humidity: 10 to 90 percent, noncondensing - Operating altitude: -197 to 9843 feet
Power and Mean Time Between Failures (MTBF) information	- Active supervisor power: ◦ Wired mode: 311W ◦ Wireless mode: 400W - Standby supervisor power: ◦ Wired mode: 220W ◦ Wireless mode: 265W
Safety certifications	- UL 60950-1 - CAN/CSA-C22.2 No. 60950-1 - EN 60950-1 - IEC 60950-1 - AS/NZS 60950.1 - IEEE 802.3
Electromagnetic emissions certifications	- 47 CFR Part 15 - CISPR22 Class A - EN 300 386 V1.6.1 - EN 55022 Class A - EN 55032 Class A - CISPR 32 Class A - EN61000-3-2 - EN61000-3-3 - ICES-003 Class A - TCVN 7189 Class A - V-3 Class A - CISPR24 - EN 300 386 - EN55024 - TCVN 7317 - V-2 Class A
Industry EMC, safety, and environmental standards	- SR-3580 NEBS level 3 (GR-63-CORE issue 4, GR-1089-CORE issue 6) - ETS 300 019-2-1, Class 1.2 Storage - ETS 300 019-2-2, Class 2.3 Transportation - ETS 300 019-2-3, Class 3.2 Stationary
ROHS compliance	- ROHS5

Cisco Supervisor WS-X45-SUP8-E hỗ trợ các Line Cards sau

WS-X4748-12X48U+E	Cisco Catalyst 4500E Series 48-port (RJ-45) line card with 12 Multigigabit ports and 36 10/100/1000 ports with 802.3af PoE, 802.3at PoE+, and Cisco UPOE
WS-X4748-UPOE+E	Cisco Catalyst 4500E Series, 48-port 802.3af PoE, 802.3at PoE+, and Cisco UPOE 10/100/1000
WS-X4748-RJ45-E	Cisco Catalyst 4500E Series, 48-port 10/100/1000 (RJ-45)
WS-X4748-RJ45V+E	Cisco Catalyst 4500E Series, 48-port PoE 802.3at 10/100/1000 (RJ-45)
WS-X4712-SFP+E	Cisco Catalyst 4500E Series, 12-port 10 Gigabit Ethernet (SFP+)
WS-X4748-SFP-E	Cisco Catalyst 4500E Series 48-port Gigabit Ethernet fiber line card
WS-X4724-SFP-E	Cisco Catalyst 4500E Series 24-port Gigabit Ethernet fiber line card
WS-X4712-SFP-E	Cisco Catalyst 4500E Series 12-port Gigabit Ethernet fiber line card
WS-X4648-RJ45V-E	Cisco Catalyst 4500E Series, 48-port 802.3af PoE 10/100/1000 (RJ-45)
WS-X4648-RJ45V+E	Cisco Catalyst 4500E Series, 48-port Premium PoE 10/100/1000 (RJ-45)
WS-X4648-RJ45-E	Cisco Catalyst 4500E Series, 48-port 10/100/1000 (RJ-45)
WS-X4640-CSFP-E	Cisco Catalyst 4500E Series, 40- and 80-port SFP/CSFP Gigabit Ethernet line card
WS-X4606-X2-E	Cisco Catalyst 4500E Series, 6-port 10 Gigabit Ethernet (X2)
WS-X4624-SFP-E	Cisco Catalyst 4500E Series, 24-port Gigabit Ethernet (SFP)
WS-X4612-SFP-E	Cisco Catalyst 4500E Series 12-port Gigabit Ethernet (SFP)
CVR-X2-SFP	Twin gigabit converter module
WS-X4148-FX-MT	Cisco Catalyst 4500 Fast Ethernet switching module, 48-port 100BASE-FX Multimode Fiber (MMF)
WS-X4148-RJ	Cisco Catalyst 4500 10/100 module, 48 ports (RJ-45). Not supported on VSS
WS-X4248-RJ45V	Cisco Catalyst 4500 PoE 802.3af 10/100, 48 ports (RJ-45)
WS-X4248-FE-SFP	Cisco Catalyst 4500 Fast Ethernet Switching Module, 48-port 100BASE-X (SFP)
WS-X4306-GB	Cisco Catalyst 4500 Gigabit Ethernet Module, 6 ports (GBIC)
WS-X4448-GB-SFP	Cisco Catalyst 4500 Gigabit Ethernet Module, 48 ports 1000BASE-X (optional SFPs)
WS-X4548-GB-RJ45	Cisco Catalyst 4500 Enhanced 48-Port 10/100/1000 Module (RJ-45)
WS-X4548-GB-RJ45V	Cisco Catalyst 4500 PoE 802.3af 10/100/1000, 48 ports (RJ-45)
WS-X4548-RJ45V+	Catalyst 4500 PoE+ Ready 10/100/1000, 48 ports (RJ-45)

Cisco Supervisor WS-X45-SUP8-E sử dụng được cho các Switch Cisco sau

Product Number	Description
WS-C4503-E	Cisco Catalyst E-Series 4503 switch (3-slot chassis), fan, no power supply
WS-C4506-E	Cisco Catalyst E-Series 4506 switch (6-slot chassis), fan, no power supply
WS-C4507R+E	Cisco Catalyst E-Series 4507R+E switch (7-slot chassis), fan, no power supply, redundant supervisor capable
WS-C4510R+E	Cisco Catalyst E-Series 4510R+E switch (10-slot chassis), fan, no power supply; redundant supervisor capable

License sử dụng cho Cisco Supervisor WS-X45-SUP8-E

C4500E-LB	LAN BASE software license
C4500E-IPB	IP BASE software license
C4500E-LIC=	Base product ID for paper-delivered software upgrade licenses
C4500E-LB-IPB	LAN Base to IP Base upgrade license (paper delivery)
C4500E-LB-ES	LAN Base to Enterprise Services upgrade license (paper delivery)
C4500E-IP-ES	IP Base to Enterprise Services upgrade license (paper delivery)
C4500E-LIC-PAK	Base product ID for paper-delivered software licenses for spare Supervisor Engine 9-E
C4500E-IP-ES-S	IP Base to Enterprise Services upgrade license for spare Supervisor Engine 9-E (paper delivery)
C4500E-IPB-S	IP Base software license for spare Supervisor Engine 9-E (paper delivery)
L-C4500-LIC=	Base product ID for electronically delivered software upgrade licenses
L-C4500E-LB-IP	LAN Base to IP Base upgrade license (electronically delivered)
L-C4500E-IP-ES	IP Base to Enterprise Services upgrade license (electronically delivered)
L-C4500E-LB-ES	LAN Base to Enterprise Services upgrade license (electronically delivered)
SD-X45-2GB-E	Cisco Catalyst 4500 2 GB SD memory card for Supervisor 9-E
USB-X45-4GB-E	Cisco Catalyst 4500 4 GB USB device for Supervisor 9-E
