| Physical |
| Interfaces |
32-port 400G QSFP-DD ports and 2-port 1/10G SFP+ ports |
| Buffer |
120MB |
| System memory |
32GB |
| SSD |
128GB |
| USB |
1 port |
| RS-232 serial console ports |
1 |
| Management ports |
2 (1 x 10/100/1000BASE-T and 1 x 1-Gbps SFP) |
| Hewitt Lake CPU |
4 cores |
| Power and cooling |
| Power |
1500W AC or 1500 DC |
| Input voltage |
100 to 240V AC |
| Fan |
Hot-swappable, 6 fans, 5+1 redundancy |
| Frequency |
50 to 60 Hz (AC) |
| Efficiency |
90% or greater (20 to 100% load) |
| Port-side |
Port-side intake or port-side exhaust options |
| Typical power |
650 (AC) |
| Maximum power |
1250 (AC) |
| Environmental |
| Dimension |
1.7 x 17.3 x 22.9 in. (4.4 x 43.9 x 58.1 cm) |
| Operating temperature |
32 to 104°F (0 to 40°C) |
| Nonoperating (storage) temperature |
–40 to 158°F (–40 to 70°C) |
| Humidity |
5 to 85% (noncondensing) |
| Altitude |
0 to 13,123 ft (0 to 4000m) |
| Switch mode support |
| ACI spine |
Future |
| ACI leaf |
Yes |
| NX-OS |
Yes |
| Performance and scalability |
| Number of slices |
2 slice-pairs |
| Maximum number of IPv4 Longest Prefix Match (LPM) routes |
~2 Million |
| Maximum number of IPv4 host entries |
~2 Million |
| Maximum number of MAC address entries |
~1 Million |
| Maximum number of multicast routes |
256,000 |
| Number of Interior Gateway Management Protocol (IGMP) snooping groups |
Maximum: 32,000 |
| Maximum number of Access-Control-List (ACL) entries |
- 6000 ingress/slice
- 3000 egress/slice
- Max: 24,000 ingress, 12,000 egress
|
| Maximum number of VLANs |
4096 |
| Number of Virtual Routing and Forwarding (VRF) instances |
Maximum: 16,000 |
| Maximum number of ECMP paths |
64 |
| Maximum number of port channels |
2K |
| Maximum number of links in a port channel |
1K |
| Number of active SPAN sessions |
32 |
| Maximum number of VLANs in Rapid per-VLAN Spanning Tree (RPVST) instances |
64 |
| Maximum number of Hot-Standby Router Protocol (HSRP) groups |
490 |
| Maximum number of Multiple Spanning Tree (MST) instances |
64 |
| Flow-table size |
128K/slice |
| Number of Network Address Translation (NAT) entries |
1K |
| Weight |

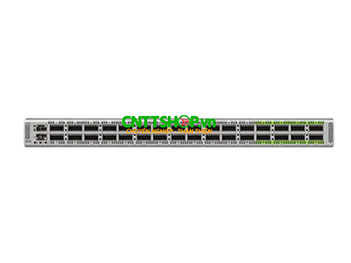

| Cisco Nexus 9332D-GX2B without power supplies or fans |
28 lbs (12.7 kg) |
| 3000W AC power supply |
3.74 lbs (1.7 kg) |
| 1500W AC power supply |
2.42 lbs (1.1 kg) |
| Fan tray: NXA-FAN-35CFM-PE or NXA-FAN-35CFM-PI |
0.25 lbs (0.1 kg) |
| Fan Tray:NXA-FAN-160CFM2-PI or NXA-FAN-160CFM2-PE |
lbs (0.6 kg) |
