| Datasheet CS-KITPLPTZ4K-K9 |
| Specifications |

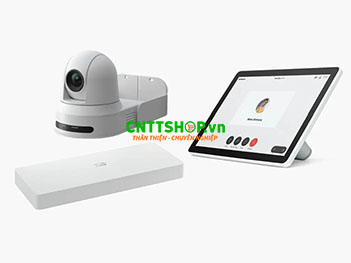

Default components in
Webex Room Kit Plus PTZ 4K
integrator bundle |
Webex Codec Plus
Webex PTZ 4K Camera
Webex Room Navigator control unit |
| Optional hardware components |
Cisco Table Microphone, Cisco Ceiling Microphone, wall mount for Codec Plus, various cables |
| Bandwidth |
Up to 6 Mbps point to point |
Minimum bandwidth for
resolution and frame rate |
H.264
720p30 from 768 kbps
720p60 from 1152 kbps
1080p30 from 1472 kbps
1080p60 from 2560 kbps |
| Firewall traversal |
Cisco Expressway ™ technology
H.460.18, H.460.19 firewall traversal |
| Video standards |
H.264, H.265, and H.263 for TANDBERG ™ MXP interoperability only |
| Video inputs |
One HDMI input supports formats up to a maximum 1080p60
Two HDMI inputs support formats up to a maximum 4K (3840 x 2160) at 30 fps, including HD1080p60
Extended Display Identification Data (EDID)
Consumer Electronics Control (CEC) 2.0 |
| Video outputs |
2 HDMI outputs support formats up to 3840 x 2160@60 fps (4Kp60)
Consumer Electronics Control (CEC) 2.0 |
| Encode and decode |
Main video: Full HD 1080p60
Presentation channel: UHD 4K 2160p5, including 1080p30 and 720p60 |
| Audio standards |
G.711, G.722, G.722.1, G.729, AAC-LD, and Opus |
| Audio features |
High-quality 20-kHz audio
Prepared for inductive loop (line out)
Automatic Gain Control (AGC)
Automatic noise reduction
Active lip synchronization |
| Audio inputs |
Three microphones, 4-pin mini-jack
Embedded audio on two HDMI inputsThree microphones, 4-pin mini-jack
Embedded audio on two HDMI inputs |
| Audio outputs |
1 line out mini-jack (stereo) (Codec Plus)
Embedded audio on one HDMI output
HDMI input #1 supports Audio Return Channel (ARC) |
| Dual stream |
H.239 (H.323) dual stream
BFCP Session Initiation Protocol (SIP) dual stream
Support resolutions up to 3840 x 2160p5 (4Kp5),1080p30 and 720p60 |
| Wireless sharing |
Webex clients (up to 3840 x 2160p5)
Cisco Intelligent Proximity client (up to 1920 x 1080p5) |
| Protocols |
H.323
SIP
Webex
ISDN PRI/BRI using the optional ISDN Link |
| Embedded encryption |
H.323 and SIP point to point
Standards-based: H.235 v3 and Advanced Encryption Standard (AES)
Automatic key generation and exchange |
| Network interfaces Codec Plus |
1 Ethernet (RJ-45) 10/100/1000 for LAN
Ethernet (RJ-45) 10/100/1000 for direct pairing with camera (camera control)
1 Ethernet (RJ-45) 10/100/1000 with PoE, 1 dedicated for direct pairing with the Webex Room Navigator
Wi-Fi 802.11a/b/g/n/ac 2.4 GHz and 5 GHz for LAN
2x2 Multiple Input and Multiple Output (MIMO) |
| Other interfaces |
1xUSB A port, USB-B, uUSB, factory reset pinhole |
| Power supply |
100 to 240 VAC, 50/60 Hz, 12V DC input
Average 20 W, peak 70 W |
| Operating temperature and humidity |
0° to 35°C (32° to 95°F) ambient temperature
10% to 90% Relative Humidity (RH) |
| Storage and transport temperature |
-20° to 60°C (-4° to 140°F) at RH 10% to 90% (noncondensing) |
| Dimensions |
| Codec Plus |
Width: 14.1 in. (35.9 cm)
Height: 1.7 in. (4.3 cm)
Depth: 5.6 in. (14.3 cm)
Weight: 3.9 lb. (1.77 kg) |
| PTZ 4K Camera |
Width: 6.3 in. (15.8 cm)
Height (at max tilt): 7.0 in. (17.7 cm)
Depth: 8.0 in. (20.0 cm)
Weight: 3.75 lb (1.7 kg) |
