| General |

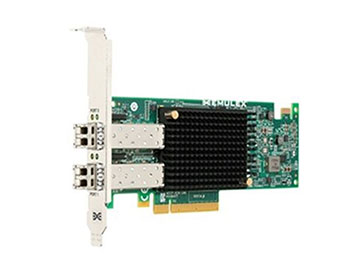

| Device Type |
Host bus adapter. |
| Form Factor |
Plug-in card. |
| Interface (Bus) Type |
PCI Express 3.0 x8. |
| PCI Specification Revision |
PCIe 3.0. |
| Networking |
| Ports |
16Gb Fibre Channel x 2. |
| Data Link Protocol |
16Gb Fibre Channel. |
| Connectivity Technology |
Wired. |
| Fibre Channel |
FC-DA, FC-FS, FC-GS-2, FC-GS-3, FC-GS-4, FC-MI, FC-PH-2, FC-PH-3, FC-PI, FC-Tape, FCP-4, FCP-2, FC-PI-2, FC-GS-5, FCP-3, FC-PI-4, FC-FS-3, FC-GS-6, FC-PI-3, FC-HBA, FC-PI-5, FC-LS-2, FC-DA-2, SSC-2, SBC-2, SPC-3, FC-PI-6, SBC-3, SPC-4, SSC-4 |
| Cabling Type |
Fiber optic. |
| Data Transfer Rate |
14.025 Gbps. |
| Features |
Forward Error Correction (FEC). |
| Miscellaneous |
| Compliant Standards |
CSA, UL, FCC, RoHS, TUV Bauart, BSMI Class A, ICES Class A, VCCI Class A, MSIP Class A, China RoHS, RCM. |
| Pricing Type |
Customer-replaceable Unit (CRU). |
| Software / System Requirements |
| OS Required |
SUSE Linux Enterprise Server, Microsoft Windows, Red Hat Enterprise Linux. |
| Compatibility Information |
| Designed For |
Dell PowerEdge T630
Dell EMC PowerEdge R440, R530, R540, R630, R640, R730, R730xd, R740, R740xd, R830, R930, R940, T640. |
