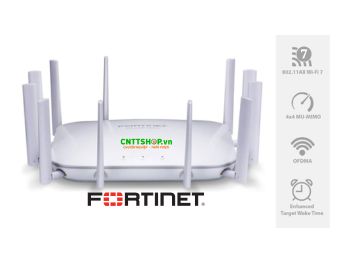

FAP-443K-S Datasheet
|
|
Hardware
|
|
Type
|
Indoor AP
|
|
Number of Radios
|
4 + 1 BLE
|
|
Number of Antennas
|
External: x4 dual band
WIFI + x4 6GHz WIFI +
x2 Tri-band scanning
Internal: x1 2.4GHz BLE/
ZigBee + x1 GPS
|
|
Antenna Type Support
|
RP-SMA (10 total):
Dual Band Antenna (4)
6Ghz Antenna (4)
Triband Antenna (2)
|
|
Antenna Type and Peak Gain
|
Omni Directional Antenna
Dual band antenna:
-
5.0 dBi for 2.4GHz
-
5.0 dBi for 5 GHz
6GHz antenna:
Tri-band antenna:
-
5.0 dBi for 2.4 GHz,
-
5.0 dBi for 5 GHz and
-
4.0 dBi for 6 GHz band
BLE antenna:
GPS active antenna:
|
|
Frequency Bands (GHz)
|
-
ISM 2.4-2.484 GHz
-
U-NII-1 5.15-5.25 GHz
-
U-NII-2A 5.25-5.35 GHz
-
U-NII-2C 5.47-5.725 GHz
-
U-NII-3 5.725-5.85 GHz
-
U-NII-4 5.850-5.925 GHz
-
U-NII-5 5.925-6.425 GHz
-
U-NII-6 6.425-6.525 GHz
-
U-NII-7 6.525-6.875 GHz
-
U-NII-8 6.875-7.125 GHz
|
|
Radio 1 Capabilities
|
Frequency band: 2.4GHz
Channel width: 20/40MHz
Modulation: BPSK, QPSK, 64/256/1024 QAM
MIMO Chains: 4x4 Service
|
|
Radio 2 Capabilities
|
Frequency band: 5.0GHz UNII-1 to UNII-4
Channel width: 20/40/80/160/240MHz
Modulation: BPSK, QPSK, 64/256/1024/4096 QAM
MIMO Chains: 4x4 Service
|
|
Radio 3 Capabilities
|
Frequency band: 6.0GHz UNII-5 to UNII-8
Channel width: 20/40/80/160/320MHz
Modulation: BPSK, QPSK, 64/256/1024/4096 QAM
MIMO Chains: 4x4 Service
|
|
Radio 4 Capabilities
|
Frequency band: 2.4/5.0/6.0GHz
Channel width: 20/40/80/160MHz
Modulation: BPSK, QPSK, 64/256/1024 QAM
MIMO Chains: 2x2 Scanning
|
|
Maximum Data Rate
|
2.4GHz band: up to 1.148 Gbps
5.0GHz band: up to 8.648 Gbps
6.0GHz band: up to 11.530 Gbps
|
|
Bluetooth Low Energy
(BT/BLE) Radio
|
Bluetooth scanning and iBeacon advertizement
@10 dBm max TX power
|
|
GNSS
|
Supported Bands:
Default constallations:
. Number of Tracking Channels: 47
. Number of Concurrent GNSS: 5
. SBAS: WAAS, EGNOS, MSAS and GAGAN
. Sensitivity (@ Default Constallations): -147 dBm
|
|
Interfaces
|
-
x2 100M/1000M/2.5G/5.0G/10G Multigigabit Ethernet (RJ45)
-
x1 Type 3.0 USB at 4.5W, x1 RS-232 RJ45 Serial Port
|
|
Power over Ethernet (PoE)
|
|
|
Simultaneous SSIDs
|
Up to 24
|
|
EAP Type(s)
|
EAP-TLS, EAP-TTLS/MSCHAPv2, PEAPv0/EAP-MSCHAPv2, PEAPv1/EAP-GTC, EAP-SIM, EAP-AKA, EAP-FAST
|
|
User/Device Authentication
|
WPA™, WPA2™, and WPA3™ with 802.1x or Preshared key,
WEP, Web Captive Portal, MAC blacklist and whitelist
|
|
Maximum Tx Power (Conducted)
|
-
2.4GHz band: 29 dBm / 794 mW (4 chains combined)*
-
5.0GHz band: 27.8 dBm / 602 mW (4 chains combined)*
-
6.0GHz band: 23 dBm / 200 mW (4 chains combined @
-
160MHz BW)*
|
|
Kensington Lock
|
Yes
|
|
IEEE Standards
|
802.11a, 802.11b, 802.11be, 802.11e, 802.11g, 802.11h, 802.11i, 802.11j, 802.11k, 802.11n, 802.11r, 802.11v, 802.11ac, 802.11ax, 802.1X, 802.3ad, 802.3at, 802.3bt, 802.3az
|
|
SSID Types Supported
|
Local-Bridge, Mesh, and Tunnel
|
|
Per Radio Client Capacity
|
Up to 512 clients per radio
(Radio1, Radio2 and Radio3)
|
|
Cellular Co-existence
|
Yes
|
|
LED Off Mode
|
Yes
|
|
Advanced 802.11 Features
|
|
OFDMA
|
Yes
|
|
Spatial Reuse (BSS Coloring)
|
Yes
|
|
UL MU-MIMO
|
Yes
|
|
DL- MU-MIMO
|
Yes
|
|
Enhanced Target Wake Time (TWT)
|
Yes
|
|
ZeroWait DFS
|
No
|
|
Onboard Security Functions
|
|
UTP Capable
|
No
|
|
UTP Features
|
N/A
|
|
Wireless Monitoring Capabilities
|
|
Rogue Scan radio modes
|
Background, Dedicated
|
|
WIPS / WIDS radio modes
|
Background, Dedicated (recommended)
|
|
Packet Sniffer Mode
|
Yes
|
|
Spectrum Analyzer
|
Yes
|
|
Dimensions
|
|
Length x Width x Height
|
9.84 x 9.84 x 2.26 inches (250 x 250 x 57.5 mm)
|
|
Weight
|
4.36 lbs (1.98 kg)
|
|
Package (shipping) Weight
|
6.9 lbs (3.13 kg)
|
|
Mounting Options
|
Ceiling, T-Rail, and Wall
|
|
Included Accessories
|
Standard Mounting Kit for Ceiling, T-Rail, and Wall
|
|
Environment
|
|
Power Supply
|
GPI-145 or SP-FAP250-PA-10
|
|
Power Consumption (Max)
|
41.7 W
|
|
PoE Mode
|
Full - 802.3bt or 2x802.3at or DC : Tx Power - Maximum
(all radios); # of Chains - 4x4 ; USB - Enabled
High - 802.3at or 2x802.3af : R1(2.4GHz), R2(5GHz) and
R3 (6GHz) Operation in Low Tx Power 17 dBm, # of Chains
- 2x2; R4 operational ; USB - Disabled
|
|
Humidity
|
5% to 90% non-condensing
|
|
Operating/Storage Temp.
|
32°F to 122°F (0°C to 50°C)/-22°F to 158°F (-30°C to 70°C)
|
|
Directives
|
Low Voltage Directive * RoHS
|
|
UL2043 Plenum Material
|
Yes
|
|
Mean Time Between Failures
|
>10 Years
|
|
IP Rating
|
N/A
|
|
Surge Protection Built In
|
Yes
|
|
Hit-less PoE Failover
|
Yes
|
|
Certifications
|
|
Wi-Fi Alliance Certified
|
Certified (Wi-Fi 7 in progress)
|
|
DFS
|
No
|
|
Warranty
|
|
Limited Lifetime Warranty
|
Yes
|
