Các tùy chọn đặt hàng FG-500E

FortiGate-500E

Fortinet FortiGate-500E 2 x 10GE SFP+ slots, 10 x GE RJ45 ports (including 1 x MGMT port, 1 X HA port, 8 x switch ports), 8 x GE SFP slots, SPU NP6 and CP9 hardware accelerated

#FG-500E

List Price: $7,800

Giá tốt

Hardware plus 24x7 FortiCare and FortiGuard Unified Threat Protection (UTP)

FortiGate-500E Hardware plus 1 Year 24x7 FortiCare and FortiGuard Unified Threat Protection (UTP)

#FG-500E-BDL-950-12

List Price: $12,870

Giá tốt

FortiGate-500E Hardware plus 3 Year 24x7 FortiCare and FortiGuard Unified Threat Protection (UTP)

#FG-500E-BDL-950-36

List Price: $23,010

Giá tốt

FortiGate-500E Hardware plus 5 Year 24x7 FortiCare and FortiGuard Unified Threat Protection (UTP)

#FG-500E-BDL-950-60

List Price: $33,150

Giá tốt

Fortinet FortiGate-500E Hardware plus 1 Year ASE FortiCare and FortiGuard 360 Protection

FortiGate-500E Hardware plus 1 Year ASE FortiCare and FortiGuard 360 Protection

#FG-500E-BDL-817-12

List Price: $15,600

Giá tốt

FortiGate-500E Hardware plus 3 Year ASE FortiCare and FortiGuard 360 Protection

#FG-500E-BDL-817-36

List Price: $31,200

Giá tốt

FortiGate-500E Hardware plus 5 Year ASE FortiCare and FortiGuard 360 Protection

#FG-500E-BDL-817-60

List Price: $46,800

Giá tốt

Fortinet FortiGate-500E Hardware plus 1 Year 24x7 FortiCare and FortiGuard Enterprise Protection

FortiGate-500E Hardware plus 1 Year 24x7 FortiCare and FortiGuard Enterprise Protection

#FG-500E-BDL-811-12

List Price: $14,040

Giá tốt

FortiGate-500E Hardware plus 3 Year 24x7 FortiCare and FortiGuard Enterprise Protection

#FG-500E-BDL-811-36

List Price: $26,520

Giá tốt

FortiGate-500E Hardware plus 5 Year 24x7 FortiCare and FortiGuard Enterprise Protection

#FG-500E-BDL-811-60

List Price: $39,000

Giá tốt

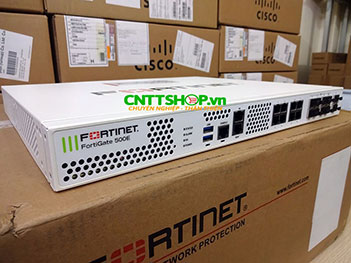

FG-500E Firewall Fortinet FortiGate 500E series

Part Number	:
List Price	: $
Giá bán	:
Bảo hành	:
Made In	:
Stock	:

Firewall Fortinet FortiGate FG-500E cung cấp khả năng tường lửa thế hệ mới cho các doanh nghiệp vừa và lớn, với sự linh hoạt được triển khai tại các doanh nghiệp hoặc các chi nhánh.

FG-500E Datasheet

Firewall FortiGate FG-500E giúp chống lại các mối đe dọa trên mạng với bộ xử lý bảo mật cung cấp hiệu suất cao, hiệu quả bảo mật và khả năng hiển thị chi tiết các vấn đề bảo mật.

Firewall Fortinet FortiGate FG-500E

Thông số kỹ thuật Firewall FortiGate FG-500E

Interfaces and Modules
Hardware Accelerated 10 GE SFP+ Slots	2
Hardware Accelerated GE SFP Slots	8
Hardware Accelerated GE RJ45 Ports	8
GE RJ45 Management / HA Ports	2
USB Ports (Client / Server)	2
Console Port	1
Internal Storage	NIL
Included Transceivers	2x SFP (SX 1 GE)
System Performance and Capacity
Firewall Throughput (1518 / 512 / 64 byte, UDP)	36 / 36 / 32 Gbps
Firewall Latency (64 byte, UDP)	2 μs
Firewall Throughput (Packet per Second)	33 Mpps
Concurrent Sessions (TCP)	8 Million
New Sessions/Sec (TCP)	300,000
Firewall Policies	10,000
IPsec VPN Throughput (512 byte)	20 Gbps
Gateway-to-Gateway IPsec VPN Tunnels	2000
Client-to-Gateway IPsec VPN Tunnels	50,000
SSL-VPN Throughput	5 Gbps
Concurrent SSL-VPN Users	10,000
SSL Inspection Throughput (IPS, avg.HTTPS)	5.7 Gbps
Application Control Throughput (HTTP 64K)	14 Gbps
CAPWAP Throughput (1444 byte, UDP)	18 Gbps
Virtual Domains (Default / Maximum)	10 / 10
Maximum Number of Switches Supported	48
Maximum Number of FortiAPs (Total / Tunnel Mode)	512 / 256
Maximum Number of FortiTokens	1,000
Maximum Number of Registered FortiClients	2,000
High Availability Configurations	Active / Active, Active / Passive, Clustering
System Performance — Optimal Traffic Mix
IPS Throughput	11 Gbps
System Performance — Enterprise Traffic Mix
IPS Throughput	5.2 Gbps
NGFW Throughput	5 Gbps
Threat Protection Throughput	4.7 Gbps
Dimensions and Power
Height x Width x Length (inches)	1.75 x 17.0 x 15.0
Height x Width x Length (mm)	44.45 x 432 x 380
Weight	16.1 lbs (7.3 kg)
Form Factor	1 RU
AC Power Supply	100–240V AC, 60–50 Hz
DC Power Supply	-

Power Consumption (Average / Maximum)	95 W / 193 W
Heat Dissipation	613 BTU/h
Redundant Power Supplies	Yes, Hot Swappable
Operating Environment and Certifications

Operating Temperature	32–104°F (0–40°C)
Storage Temperature	-31–158°F (-35–70°C)
Humidity	10–90% non-condensing
Noise Level	43 dBA
Operating Altitude	Up to 7,400 ft (2,250 m)
Compliance	FCC Part 15 Class A, C-Tick, VCCI, CE, UL/cUL, CB
Certifications	ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN; USGv6/IPv6

Các loại nguồn sử dụng cho Firewall FortiGate FG-500E

Optional Power Supply

SP-FG300E-PS

AC power supply for FG-300/301E and FG-500/501E

Các loại module quang sử dụng cho Firewall FortiGate FG-500E

10 GE SFP+ Transceiver Module, Short Range	FG-TRAN-SFP+SR	10 GE SFP+ transceiver module, short range for all systems with SFP+ and SFP/SFP+ slots.
10 GE SFP+ Transceiver Module, Long Range	FG-TRAN-SFP+LR	10 GE SFP+ transceiver module, long range for all systems with SFP+ and SFP/SFP+ slots.
10 GE SFP+ Active Direct Attach Cable, 10m / 32.8 ft	SP-CABLE-ADASFP+	10 GE SFP+ active direct attach cable, 10m / 32.8 ft for all systems with SFP+ and SFP/SFP+ slots
1 GE SFP LX transceiver module	FG-TRAN-LX	1 GE SFP LX transceiver module for all systems with SFP and SFP/SFP+ slots
1 GE SFP RJ45 transceiver module	FG-TRAN-GC	1 GE SFP RJ45 transceiver module for all systems with SFP and SFP/SFP+slots
1 GE SFP SX transceiver module	FG-TRAN-SX	1 GE SFP SX transceiver module for all systems with SFP and SFP/SFP+ slots

Các tùy chọn License cho FG-500E

Fortinet FortiGate-500E 360 Protection (ASE FortiCare plus App Ctrl, IPS, AV, Web Filtering, AS, FSA Cloud, Security Rating, IoT Detection, SD-WAN Orchestrator/Cloud Monitoring/Overlay Ctrl VPN, FMG/FAZ/IPAM Cloud, Industrial Security and FortiConverter S

FortiGate-500E 1 Year 360 Protection (ASE FortiCare plus App Ctrl, IPS, AMP, Web Filtering, AS, Security Rating, IoT Detection, SD-WAN Orchestrator/Cloud Monitoring/Overlay Ctrl VPN, FMG/FAZ/IPAM Cloud, Industrial Security and FortiConverter Svc)

#FC-10-0500E-817-02-12

List Price:$7,800

Giá tốt

FortiGate-500E 3 Year 360 Protection (ASE FortiCare plus App Ctrl, IPS, AMP, Web Filtering, AS, Security Rating, IoT Detection, SD-WAN Orchestrator/Cloud Monitoring/Overlay Ctrl VPN, FMG/FAZ/IPAM Cloud, Industrial Security and FortiConverter Svc)

#FC-10-0500E-817-02-36

List Price:$23,400

Giá tốt

FortiGate-500E 5 Year 360 Protection (ASE FortiCare plus App Ctrl, IPS, AMP, Web Filtering, AS, Security Rating, IoT Detection, SD-WAN Orchestrator/Cloud Monitoring/Overlay Ctrl VPN, FMG/FAZ/IPAM Cloud, Industrial Security and FortiConverter Svc)

#FC-10-0500E-817-02-60

List Price:$39,000

Giá tốt

Fortinet FortiGate-500E Enterprise Protection (24x7 FortiCare plus Application Control, IPS, AV, Web Filtering, Antispam, FortiSandbox Cloud, IoT Detection, Industrial Security, Security Rating, and FortiConverter Svc)

FortiGate-500E 1 Year Enterprise Protection (24x7 FortiCare plus Application Control, IPS, AMP, Web Filtering, Antispam, IoT Detection, Industrial Security, Security Rating, and FortiConverter Svc)

#FC-10-0500E-811-02-12

List Price:$6,240

Giá tốt

FortiGate-500E 3 Year Enterprise Protection (24x7 FortiCare plus Application Control, IPS, AMP, Web Filtering, Antispam, IoT Detection, Industrial Security, Security Rating, and FortiConverter Svc)

#FC-10-0500E-811-02-36

List Price:$18,720

Giá tốt

FortiGate-500E 5 Year Enterprise Protection (24x7 FortiCare plus Application Control, IPS, AMP, Web Filtering, Antispam, IoT Detection, Industrial Security, Security Rating, and FortiConverter Svc)

#FC-10-0500E-811-02-60

List Price:$31,200

Giá tốt

FortiGate-500E 1 Year IoT Detection Service

#FC-10-0500E-231-02-12

List Price:$1,560

Giá tốt

Fortinet FortiGate-500E FortiIPAM Cloud Service

FortiGate-500E 1 Year FortiIPAM Cloud Service

#FC-10-0500E-233-02-12

List Price:$1,560

Giá tốt

Fortinet FortiGate-500E SD-WAN Orchestrator Entitlement License

#FC-10-0500E-319-02-12

List Price:$2,340

Giá tốt

Unified Threat Protection (UTP) (24x7 FortiCare plus Application Control, IPS, AV, Web Filtering and Antispam, FortiSandbox Cloud)

FortiGate-500E 1 Year Unified Threat Protection (UTP) (24x7 FortiCare plus Application Control, IPS, AMP, Web Filtering and Antispam Service)

#FC-10-0500E-950-02-12

List Price:$5,070

Giá tốt

FortiGate-500E 3 Year Unified Threat Protection (UTP) (24x7 FortiCare plus Application Control, IPS, AMP, Web Filtering and Antispam Service)

#FC-10-0500E-950-02-36

List Price:$15,210

Giá tốt

FortiGate-500E 5 Year Unified Threat Protection (UTP) (24x7 FortiCare plus Application Control, IPS, AMP, Web Filtering and Antispam Service)

#FC-10-0500E-950-02-60

List Price:$25,350

Giá tốt

FortiGate-500E Services

FortiGate-500E 1 Year FortiGuard Advanced Malware Protection (AMP) including Antivirus, Mobile Malware and FortiGate Cloud Sandbox Service

#FC-10-0500E-100-02-12

List Price:$1,560

Giá tốt

FortiGate-500E 1 Year FortiGuard IPS Service

#FC-10-0500E-108-02-12

List Price:$1,560

Giá tốt

FortiGate-500E 1 Year FortiGuard Web Filtering Service

#FC-10-0500E-112-02-12

List Price:$1,560

Giá tốt

FortiGate-500E 1 Year FortiGuard Industrial Security Service

#FC-10-0500E-159-02-12

List Price:$780

Giá tốt

FortiCloud Management, Analysis and 1 Year Log Retention

FortiGate-500E 1 Year FortiGate Cloud Management, Analysis and 1 Year Log Retention

#FC-10-0500E-131-02-12

List Price:$1,560

Giá tốt

FortiGate-500E 3 Year FortiGate Cloud Management, Analysis and 1 Year Log Retention

#FC-10-0500E-131-02-36

List Price:$4,680

Giá tốt

FortiGate-500E 5 Year FortiGate Cloud Management, Analysis and 1 Year Log Retention

#FC-10-0500E-131-02-60

List Price:$7,800

Giá tốt

24x7 FortiCare Contract

FortiGate-500E 1 Year 24x7 FortiCare Contract

#FC-10-0500E-247-02-12

List Price:$1,560

Giá tốt

FortiGate-500E 3 Year 24x7 FortiCare Contract

#FC-10-0500E-247-02-36

List Price:$4,680

Giá tốt

FortiGate-500E 5 Year 24x7 FortiCare Contract

#FC-10-0500E-247-02-60

List Price:$7,800

Giá tốt

Fortinet FortiGate-500E Threat Protection

FortiGate-500E 1 Year Advanced Threat Protection (24x7 FortiCare plus Application Control, IPS and AMP Service)

#FC-10-0500E-928-02-12

List Price:$3,510

Giá tốt

FortiGate-500E 3 Year Advanced Threat Protection (24x7 FortiCare plus Application Control, IPS and AMP Service)

#FC-10-0500E-928-02-36

List Price:$10,530

Giá tốt

FortiGate-500E 5 Year Advanced Threat Protection (24x7 FortiCare plus Application Control, IPS and AMP Service)

#FC-10-0500E-928-02-60

List Price:$17,550

Giá tốt

Fortinet FortiGate-500E Fortiguard Security Audit Update Service

FortiGate-500E 1 Year FortiGuard Security Rating Service

#FC-10-0500E-175-02-12

List Price:$1,560

Giá tốt

FortiConverter Service for FortiGate

FortiGate-500E 1 Year FortiConverter Service for one time configuration conversion service

#FC-10-0500E-189-02-12

List Price:$390

Giá tốt

Fortinet FortiGate-500E SD-WAN Cloud Assisted Monitoring: Cloud-based SD-WAN Bandwidth & Quality Monitoring Service

FortiGate-500E 1 Year SD-WAN Cloud Assisted Monitoring: Cloud-based SD-WAN Bandwidth & Quality Monitoring Service

#FC-10-0500E-288-02-12

List Price:$1,560

Giá tốt

Fortinet FortiGate-500E SD-WAN Overlay Controller VPN Service: Cloud-based SD-WAN VPN Overlay Service & Portal

FortiGate-500E 1 Year SD-WAN Overlay Controller VPN Service: Cloud-based SD-WAN VPN Overlay Service & Portal

#FC-10-0500E-289-02-12

List Price:$1,560

Giá tốt

Fortinet FortiGate-500E FortiManager Cloud: Cloud-based Central Management & Orchestration Service

FortiGate-500E 1 Year FortiManager Cloud: Cloud-based Central Management & Orchestration Service

#FC-10-0500E-179-02-12

List Price:$780

Giá tốt

Fortinet FortiGate-500E FortiAnalyzer Cloud: Base subscription for Cloud-based Events Management & Analytics Service

FortiGate-500E 1 Year FortiAnalyzer Cloud: Cloud-based Events and Security Log Monitoring including IOC Service

#FC-10-0500E-188-02-12

List Price:$1,950

Giá tốt

Fortinet FortiGate-500E ASE FortiCare (24x7 plus Advanced Services Ticket Handling)

FortiGate-500E 1 Year ASE FortiCare (24x7 plus Advanced Services Ticket Handling)

#FC-10-0500E-284-02-12

List Price:$1,950

Giá tốt

FortiGate-500E 3 Year ASE FortiCare (24x7 plus Advanced Services Ticket Handling)

#FC-10-0500E-284-02-36

List Price:$5,850

Giá tốt

FortiGate-500E 5 Year ASE FortiCare (24x7 plus Advanced Services Ticket Handling)

#FC-10-0500E-284-02-60

List Price:$9,750

Giá tốt
