Specification
|
|
Model
|
CSF1220CX-TD-K9
|
|
Form factor
|
Desktop / Compact, Compact appliance for desktop use. Can be rack-mounted or wall-mounted via optional accessories
|
| Core Count |
8 cores at 2.5 GHz
|
| System memory |
One 16-GB DDR5 DRAM at 4800 MHz
|
|
Firewall Throughput
|
15 Gbps
|
|
Threat Defense Throughput
|
9.0 Gbps
|
|
IPS Throughput
|
9.0 Gbps
|
|

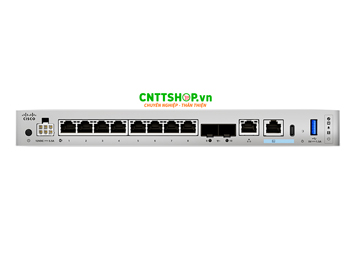

Integrated interfaces
|
8x 1000BASE-T Gigabit Ethernet (10/100/1000 Mbps)
|
|
Transceiver slots
|
2x SFP+
|
|
Power over Ethernet
|
-
|
|
Throughput: FW + AVC (1024B)
|
9.0 Gbps
|
|
Throughput: Next-Generation Intrusion Prevention System (NGIPS) (1024B)
|
9.0 Gbps
|
|
Throughput: FW + AVC + IPS (1024B)
|
9.0 Gbps
|
|
IPSec VPN Throughput (1024B TCP w/Fastpath)
|
10 Gbps
|
|
TLS (Hardware Decryption)
|
1.5 Gbps
|
|
Maximum new connections per second, with AVC
|
50K
|
|
Maximum concurrent sessions, with AVC
|
300K
|
|
Maximum VPN Peers
|
300
|
|
Maximum virtual router instances (VRF)
|
10
|
|
Trust and Integrity
|
Built with Cisco Trustworthy Technologies to provide a hardware root of trust, cryptographically signed and validated software image support, anti-tamper and anti-counterfeit
|
|
High availability (HA)
|
Support for active/standby HA pairs
|
|
Multi-Instance
|
Not supported
|
|
Network security management
|
Centralized management via Cisco Secure Firewall Management Center (FMC), On-box management via Cisco Secure Firewall Device Manager (FDM), Cloud-managed via Cisco Security Cloud Control (SCC, formerly CDO)
|
|
Console port
|
USB Type-C and RJ-45 (Cisco serial)
|
|
Management Ethernet
|
1000BASE-T port
|
|
USB port
|
USB 3 Type A port
|
|
Storage
|
Integrated SSD, 480GB
|
|
Power supply
|
Single input, external power supply
|
|
Cooling
|
Integrated blower, side exhaust
|
|
SFP+ transceiver slots
|
Support for a wide range of 1Gbps and 10Gbps transceivers. For a full list, refer to the product hardware documentation and Cisco’s transceiver compatibility matrix tools
|
|
Chassis Dimensions (HxWxD)
|
-
|
|
Weight
|
3.09 lb (1.40 kg)
|
|
Operating range
|
- Temperature: operating 32 to 104°F (0 to 40°C)
- Humidity: operating 5 to 85% (non-condensing)
- Altitude: operating 0 to 10,000 ft (3048 m)
|
|
Acoustic noise
|
23.5 dBA @ 80.6°F (27°C)
42.7 dBA @ maximum fan speed
|
|
Non-operating/storage environment
|
- Temperature: non-operating -13 to 158°F (-25 to 70°C)
- Humidity: non-operating 5 to 95% (non-condensing)
- Altitude: non-operating 0 to 15,000 ft (4570 m)
|
|
Power supply specifications
|
- AC input voltage: 100-240V AC
- AC input frequency: 50–60 Hz
- AC current draw, maximum: 0.4A (100V), 0.17A (240V)
|
|
Power consumption, typical
|
40W
|
|
Power consumption, maximum
|
40W (excluding PoE), 165W (including PoE)
|
