| Hardware Specifications |
| Hardware |

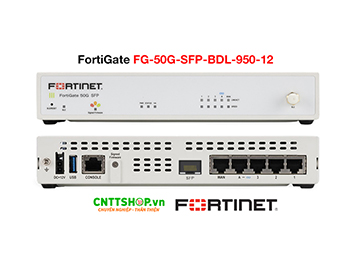

FortiGate-50G-SFP |
| Hardware Accelerated GE WAN Ports |
1 |
| Hardware Accelerated GE RJ45 Ports |
3 |
| Hardware Accelerated GE RJ45 PoE/+ Ports |
- |
| Hardware Accelerated GE SFP Slots |
1 |
| Hardware Accelerated GE RJ45 FortiLink Port (Default) |
1 |
| USB Port |
1 |
| Console Port (RJ45) |
1 |
| Internal Storage |
- |
| Trusted Platform Module (TPM) |
✔ |
| Bluetooth Low Energy (BLE) |
✔ |
| Antenna Ports (SMA) |
- |
| Wireless Interface |
- |
| System Performance - Enterprise Traffic Mix |
| IPS Throughput |
2.25 Gbps |
| NGFW Throughput |
1.25 Gbps |
| Threat Protection Throughput |
1.1 Gbps |
| Firewall Throughput (1518/512/64 byte UDP packets) |
5 / 5 / 4 Gbps |
| Firewall Latency (64 byte UDP packets) |
2.42 μs |
| Firewall Throughput (Packets Per Second) |
6 Mpps |
| Concurrent Sessions (TCP) |
720,000 |
| New Sessions/Second (TCP) |
85,000 |
| Firewall Policies |
2000 |
| IPsec VPN Throughput (512 byte) |
4.5 Gbps |
| Gateway-to-Gateway IPsec VPN Tunnels |
200 |
| Client-to-Gateway IPsec VPN Tunnels |
250 |
| SSL-VPN Throughput |
- |
| Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode) |
- |
| SSL Inspection Throughput (IPS, avg. HTTPS) |
1.3 Gbps |
| SSL Inspection CPS (IPS, avg. HTTPS) |
699 |
| SSL Inspection Concurrent Session (IPS, avg. HTTPS) |
74,000 |
| Application Control Throughput (HTTP 64K) |
2.8 Gbps |
| CAPWAP Throughput (HTTP 64K) |
3.8 Gbps |
| Virtual Domains (Default/Maximum) |
5 / 5 |
| Maximum Number of FortiSwitches Supported |
8 |
| Maximum Number of FortiAPs (Total/Tunnel Mode) |
16 / 8 |
| Maximum Number of FortiTokens |
500 |
| High Availability Configurations |
Active-Active, Active-Passive, Clustering |
| Dimensions |
| Height x Width x Length (inches) |
1.6 x 8.5 x 6.3 |
| Height x Width x Length (mm) |
40.5 x 216 x 160 |
| Weight |
2.2 lbs (1.0 kg) |
| Form Factor |
Desktop |
| Operating Environment and Certifications |
| Power Rating |
12VDC, 3A |
| Power Required |
Powered by External DC Power Adapter, 100–240V AC, 50/60 Hz |
| Maximum Current |
100V/0.4A, 240V/0.2A |
| Power Consumption (Average/Maximum) |
8.3 W / 8.9 W |
| Heat Dissipation |
30.35 BTU/h |
| Operating Temperature |
32°F to 104°F (0°C to 40°C) |
| Storage Temperature |
-31°F to 158°F (-35°C to 70°C) |
| Humidity |
10% to 90% non-condensing |
| Noise Level |
Fanless |
| Operating Altitude |
Up to 10,000 ft (3048 m) |
| Compliance |
FCC, ISED, CE, UL/cUL, CB |
| Certifications |
USGv6/IPv6 |
