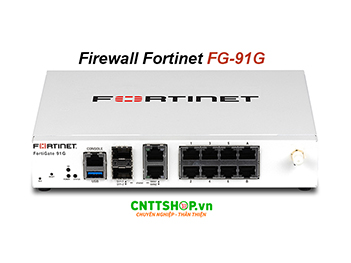

| Datasheet Fortigate FG-91G |
| Specifications |
| Hardware Specifications |
10/5/2.5/GE RJ45 or 10GE/GE SFP+/
SFP Shared Media pairs |
2 |
| GE RJ45 Internal Ports |
8 |
| Wireless Interface |
- |
| USB Ports |
1 |
| Console (RJ45) |
1 |
| Internal Storage |
1 x 120 GB SSD |
| Trusted Platform Module (TPM) |
yes |
| Bluetooth Low Energy (BLE) |
yes |
| System Performance — Enterprise Traffic Mix |
| IPS Throughput |
4.5 Gbps |
| NGFW Throughput |
2.5 Gbps |
| Threat Protection Throughput |
2.2 Gbps |
| System Performance and Capacity |
Firewall Throughput
(1518 / 512 / 64 byte UDP packets) |
28 / 28 / 27.9 Gbps |
| Firewall Latency (64 byte UDP packets) |
3.23 μs |
Firewall Throughput
(Packets Per Second) |
41.85 Mpps |
| Concurrent Sessions (TCP) |
1.5 M |
| New Sessions/Second (TCP) |
124 000 |
| Firewall Policies |
5000 |
| IPsec VPN Throughput (512 byte) |
25 Gbps |
Gateway-to-Gateway IPsec VPN
Tunnels |
200 |
| Client-to-Gateway IPsec VPN Tunnels |
2500 |
| SSL-VPN Throughput |
1.4 Gbps |
| Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode) |
200 |
| SSL Inspection Throughput (IPS, avg. HTTPS) |
2.6 Gbps |
| SSL Inspection CPS (IPS, avg. HTTPS) |
1400 |
SSL Inspection Concurrent Session
(IPS, avg. HTTPS) |
300 000 |
Application Control Throughput
(HTTP 64K) |
6.7 Gbps |
| CAPWAP Throughput (HTTP 64K) |
23.6 Gbps |
| Virtual Domains (Default / Maximum) |
10 / 10 |
Maximum Number of FortiSwitches
Supported |
24 |
Maximum Number of FortiAPs
(Total / Tunnel Mode) |
96 / 48 |
| Maximum Number of FortiTokens |
500 |
| High Availability Configurations |
Active-Active, Active-Passive, Clustering |
| Dimensions |
| Height x Width x Length (inches) |
1.65 x 8.5 x 7.0 |
| Height x Width x Length (mm) |
42 x 216 x 178 |
| Weight |
2.47 lbs (1.12 kg) |
| Form Factor |
Desktop |
| Operating Environment and Certifications |
| Input Rating |
12V DC, 5A (dual redundancy optional) |
| Power Required (Redundancy Optional) |
Powered by up to 2 External DC Power Adapters (1 adapter included), 100–240V AC, 50/60 Hz |
| Power Supply Efficiency Rating |
80Plus Compliant |
| Power Required (Redundancy Optional) |
Powered by up to 2 External DC Power Adapters (1 adapter included), 100–240V AC, 50/60 Hz |
| Maximum Current |
115Vac/0.4A, 230Vac/0.2A |
Power Consumption
(Average / Maximum) |
22.4 W / 23.5 W |
| Heat Dissipation |
80.1 BTU/hr |
| Operating Temperature |
32°–104°F (0°–40°C) |
| Storage Temperature |
-31°–158°F (-35°–70°C) |
| Humidity |
10%–90% non-condensing |
| Noise Level |
21.73 dBA |
| Operating Altitude |
Up to 10 000 ft (3048 m) |
| Compliance |
FCC, ICES, CE, RCM, VCCI, BSMI, UL/cUL, CB |
| Certifications |
USGv6/IPv6 |
