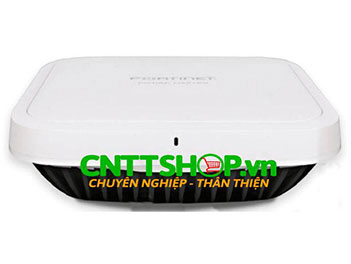

FAP-U421EV FortiAP U421EV Universal Indoor Wireless Access Point

Phân phối Bộ phát wifi Fortinet FAP-U421EV FortiAP U421EV Universal Indoor Wireless Access Point 4x4 MU-MIMO 802.11 a/b/g/n/ac Wave 2, dual-band (2.4 GHz/5 GHz) radios, 3rd BT/BLE radio, 2x GE RJ45 802.3at PoE ports, internal antennas chính hãng giá tốt

✓ Mã sản phẩm: FAP-U421EV
✓ Tình trạng: Còn Hàng
Check Giá List

So sánh với bộ phát Wifi khác:

Cam Kết Bán Hàng

✓ Sản Phẩm Chính Hãng 100% Đầy Đủ CO/CQ

✓ Giá Cạnh Tranh Rẻ Nhất Thị Trường

✓ Ưu Đãi Lớn Cho Đại Lý Và Dự Án

✓ Bảo Hành, Đổi Trả Nhanh Chóng

✓ Giao Hàng Trên Toàn Quốc

✓ Hỗ Trợ Kỹ Thuật Chuyên Nghiệp, Nhiệt Tình

✓ Chăm Sóc Khách Hàng Trước, Trong và Sau Khi Mua Hàng Tận Tâm.

CNTTShop.vn - 19 năm Uy tín cung cấp Thiết bị mạng & Dịch vụ Mạng trên toàn quốc.

NTT03, Thống Nhất Complex, Thanh Xuân, Hà Nội. Số 31B, Đường 1, Phường An Phú, Quận 2 (Thủ Đức), TP HCM.

FAP-U421EV FortiAP U421EV Universal Indoor Wireless Access Point

Part Number
List Price
: $
Giá bán
Bảo hành
Made In
Stock
:

Mô tả tổng quan

FortiAP FAP-U421EV là dòng Access Point thông minh đầu tiên có khả năng được quản lý bởi các bộ điều khiển độc lập (FortiWLC), các bộ điều khiển được tích hợp trong các thiết bị bảo mật FortiGate và các tùy chọn quản lý đám mây (tương lai), FortiAP U421EV mang đến một chuẩn mực mới về tính linh hoạt, hiệu suất và bảo mật.

FortiAP FAP-U421EV Datasheet

FortiAP FAP-U421EV sử dụng công nghệ wifi 802.11ac Wave 2 với tốc độ dữ liệu lên đến 1,733 Mbps và và công nghệ MIMO đa người dùng (MU-MIMO) cải thiện thông lượng và phạm vi khách hàng.

FAP-U421EV FortiAP U421EV Universal Indoor Wireless Access Point

Thông số kỹ thuật FortiAP FAP-U421EV

Hardware
Hardware Type Indoor Universal AP
Number of Radios 2
Number of Antennas 8 Internal plus 1 Bluetooth
Peak Antenna Gain 4 dBi for 2.4 GHz, 5 dBi for 5 GHz
Frequency Bands (GHz) 2.400–2.4835, 5.150–5.250, 5.250–5.350, 5.470–5.725, 5.725–5.850
Frequency of Radio 1 2.4 GHz b/g/n 20/40 MHz (64 QAM)
Frequency of Radio 2 5 GHz a/n/ac 20/40/80/160 MHz (256 QAM) MU-MIMO 3 simultaneous devices
Maximum Data Rate Radio 1: up to 600 Mbps
Radio 2: up to 1,733 Mbps
Tx/Rx Streams 4x4 MIMO 4 spatial stream
Bluetooth Low Energy (BT/BLE) Radio Bluetooth scanning and iBeacon advertisement @ 4 dBm max TX power
Ethernet Ports 2x GE RJ45
USB Port 1x Type A
Serial Console Port 1 RS-232 x RJ45
Power over Ethernet (PoE) Dual redundant PoE power ports with support for IEEE 802.3at (2x2 @ 17 dBm with 802.3af; USB disabled)
Simultaneous SSIDs 16 (14 if background scanning enabled)
EAP Type(s) EAP-TLS, EAP-TTLS/MSCHAPv2, EAPv0/EAP-MSCHAPv2, PEAPv1/EAP-GTC EAP-SIM, EAP-AKA, EAP-FAST
User/Device Authentication WPA™ and WPA2™ with 802.1x or Preshared key, WEP and Web Captive Portal, MAC blacklist & whitelist
Maximum Tx Power 2.4 GHz: 28 dBm / 630 mW (4 chains combined)
5 GHz: 26 dBm / 398 mW (4 chains combined)
Physical Security Kensington Lock
IEEE Specifications 802.11a, 802.11ac, 802.11b, 802.11d, 802.11e, 802.11g, 802.11h, 802.11i, 802.11j, 802.11n, 802.1x, 802.3af, 802.3at, 802.3az
Wireless Mesh Capable Yes
FortiPresence Capable Yes
Modes of Operation WLC 8.2 (min.), FortiGate, (FortiCloud – Future)
SSID Types Supported Local-Bridge, Tunnel & Mesh (when managed by FortiGate)
FortiDeploy and FortiCloud Key Yes
Per Radio Client Capacity Up to 256
LED Off Mode Yes
Advanced 802.11 Features
802.11ac MU-MIMO Wave 2 Yes
Transmit Beam Forming (TxBF) Yes
Low-Density Parity Check (LDPC) Encoding Yes
Maximum Likelihood Demodulation (MLD) Yes
Maximum Ratio Combining (MRC) Yes
A-MPDU and A-MSDU Packet Aggregation Yes
MIMO Power Save Yes
Short Guard Interval Yes
WME Multimedia Extensions Yes (4 priority queues for voice, video, data and background traffic)
Wireless Monitoring Capabilities
Frequencies scanned 2.4 and 5 GHz
Background scan with client access on 2.4 and 5 GHz Yes
Full-time scan as dedicated monitor Yes
Packet sniffer mode Yes
Spectrum analyzer Yes
Dimensions
Length x Width x Height 8.46 x 8.46 x 2.2 inches (215 x 215 x 56 mm)
Weight 3.31 lb (1.5 kg)
Package (shipping) Weight 5.09 lb (2.31 kg)
Mounting Options Ceiling, T-Rail and Wall
Included Accessories Ceiling, T-Rail and wall mount kit (AC power adapter sold separately)
Environment
Power Supply Adapter input: 100–240V, 50/60Hz, 0.9A Maximum output: 12V DC, 3A
Power Consumption (Average / Maximum) 24.5 W max power draw in 802.3at mode and 12.5 W max power draw when supplied with 802.3af mode (operates in 2x2 mode)
Humidity 5–90% non-condensing
Operating Temperature -4–122°F (-20–50°C)
Storage Temperature -40–158°F (-40–70°C)
Directives Low Voltage Directive • RoHS
UL2043 Plenum Material No
Mean Time Between Failures >30 Years
Hit-less PoE Failover Yes
Compliance
SAFETY

FCC: FCC Part 15 Subpart B (Class B), Subpart C and Subpart E

UL: UL 609550-1, UL 2043, CSA C22.2 No. 60950-1

CB: IEC 60950-1

RF IC: RSS-210, RSS-GEN, RSS-102, ICES-003
Certifications
WiFi Alliance Certified Yes
DFS Certified Yes

Nguồn sử dụng cho FortiAP FAP-U421EV

SKU Description
GPI-130 1-Port Gigabit PoE Power Injector, 802.3at up to 30 W
SP-FAP400-PA AC Power Adapter for FAP-U421EV, FAP-U423EV, FAP-S421E, FAP-S423E, FAP-421E and FAP-423E.

License sử dụng cho FortiAP FAP-U421EV

SKU Description
FC-10-P0421-311-02-DD 8x5 FortiCare Contract
FC-10-P0421-247-02-DD 24x7 FortiCare Contract
