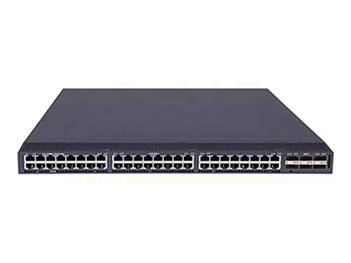

| Datasheet LS-6800-54QT-H3 |
| Hardware Specification |
Dimensions
(H × W × D) |
44×440×460mm
1.73×17.32×18.11in |
| Weight |
≤13kg (28.66 lb) |
| Serial console port |
1 |
| Mini USB console port |
1 |
| USB port |
1 |
| QSFP+ port |
6 |
| 1/10GBASE-T port |
48 |
| CPU |
1GHz@2Core |
| Flash/SDRAM |
1GB/4GB |
| Latency |
<1μm |
| Switching capacity |
1.44Tbps |
| Forwarding capacity |
1080Mpps |
| Buffer(byte) |
16M |
| AC-input voltage |
Related voltage range: 100V to 240V AC, 50/60Hz Maximum voltage range: 90V to 290V AC |
| DC-input voltage |
Related voltage range: -38.4V to -72V DC |
| Power module slot |
2 |
| Fan tray slot |
Five hot-swappable fan |
| Air flow direction |
From front to rear or from rear to front |
| Static power consumption |
- Single AC：103W
- Dual AC：109W
- Single DC：107W
- Dual DC：113W |
| Typical power consumption |
- Single AC：103W
- Dual AC：109W
- Single DC：107W
- Dual DC：113W |
| Maximum heat consumption (BTU/hour) |
- Single AC：351W
- Dual AC：372W
- Single DC：365W
- Dual DC：385W |
| Maximum heat consumption (BTU/hour) |
- Single AC：351W
- Dual AC：372W
- Single DC：365W
- Dual DC：385W |
| Operating temperature |
0℃ to 45℃ (32°F to 113°F) |
| Operating humidity |
5% to 95%, noncondensing |
| MTBF(year) |
46.93 |
| MTTR(hour) |
1 |
| Software Specification |
| Device Virtualization |
IRF, M-LAG(DRNI), S-MLAG |
| Network Virtualization |
BGP-EVPN, VxLAN, EVPN ES |
| VxLAN |
L2 VxLAN gateway, L3 VxLAN gateway, Distributed VxLAN gateway, Centrilized VxLAN gateway, EVPN VxLAN, manual configured VxLAN, IPv4 VxLAN tunnel, QinQ VxLAN access. |
| SDN |
H3C SeerEngine-DC |
| Lossless network |
PFC and ECN, DCBX, RDMA and ROCE, PFC deadlock watchdog |
| Traffic analysis |
Sflow |
| Programmability |
Ansible, Python//TCL/Restful API to realize DevOps automated operation and maintenance, Openflow1.3, Netconf |
| VLAN |
Port-based VLANs, Mac-based VLAN ,Subnet-based VLAN and Protocol VLAN, VLAN mapping, QinQ, MVRP(Multiple VLAN Registration Protocol), Super VLAN, PVLAN |
| MAC address |
Dynamic learning and aging of mac address entries, Dynamic,static and blackhole entries, Mac address limiting on ports |
| IPv4 routing |
RIP(Routing Information Protocol) v1/2, OSPF (Open Shortest Path First) v1/v2, ISIS(Intermediate System to Intermediate system), BGP (Border Gateway Protocol), Routing policy, VRRP, PBR |
| IPv6 routing |
RIPng, OSPF v3, IPv6 IS IS, BGP4+, Routing policy, VRRP, PBR |
| MPLS/VPLS |
Support L3 MPLS VPN, Support L2 VPN: VLL (Martini, Kompella), Support MCE, Support MPLS OAM, Support VPLS, VLL, Support hierarchical VPLS and QinQ+VPLS access, Support P/PE function, Support LDP protocol, Support L3 MPLS VPN, Support L2 VPN: VLL (Martini, Kompella), Support MCE, Support MPLS OAM, IGMP snooping, MLD snooping, IPv4 and IPv6 multicast VLAN, IPv4 and IPv6 PIM snooping, IGMP and MLD, PIM and IPv6 PIM, MSDP, Muticast vlan, Muticast VPN |
| Reliability |
LACP, STP/RSTP/MSTP protocol, PVST compatible, STP Root Guard and BPDU Guard, RRPP and ERPS, Ethernet OAM, Smartlink, DLDP, BFD for OSPF/OSPFv3, BGP/BGP4, IS-IS/IS-ISv6, PIM/IPM for IPv6 and Static route, VRRP and VRRPE, LACP, STP/RSTP/MSTP protocol, PVST compatible, STP Root Guard and BPDU Guard |
| FC/FOCE |
FC, FC subcard is supported on S6800-2C/S6800-4C, FCOE |
| QOS |
- Weighted Random Early Detection (WRED) and tail drop
- Flexible queue scheduling algorithms based on port and queue, including strict priority (SP), Weighted, Deficit Round Robin (WDRR), Weighted Fair Queuing (WFQ), SP + WDRR, and SP + WFQ.
- Traffic shaping
- Packet filtering at L2 (Layer 2) through L4 (Layer 4); flow classification based on source MAC address, destination MAC address, source IP (IPv4/IPv6) address, destination IP (IPv4/IPv6) address, port, protocol, and VLAN to apply qos policy,including mirroring,redirection,priority remark etc.
- Committed access rate (CAR)
- Account by packet and byte
- COPP
- Weighted Random Early Detection (WRED) and tail drop
- Flexible queue scheduling algorithms based on port and queue, including strict priority (SP), Weighted, Deficit Round Robin (WDRR), Weighted Fair Queuing (WFQ), SP + WDRR, and SP + WFQ. Traffic shaping.
|
| Telemetry |
gRPC, ERSPAN, Packet capture |
| Configuration and maintenance |
Console telnet and SSH terminals, SNMPv1/v2/v3, ZTP, System log, File upload and download via FTP/TFTP, BootRom update and remote update, NQA, ping, tracert, NTP, PTP(1588v2), GIR Graceful Insertion and Removal. |
| Security and management |
- Macsec, Macsec subcard is supported on S6800-2C/4C, and only 100G macsec subcard can support
256-bit AES encryption
- Hierarchical management and password protection of users
- Authentication methods,including AAA,RADIUS and HWTACACS
- Support DDos, ARP attack and ICMP attack function
- IP-MAC-port binding and IP Source Guard
- SSH 2.0
- HTTPS
- SSL
- PKI
- Boot ROM access control (password recovery)
- RMON
|
| EMC |
- FCC Part 15 Subpart B CLASS A
- ICES-003 CLASS A
- VCCI CLASS A
- CISPR 32 CLASS A
- EN 55032 CLASS A
- AS/NZS CISPR32 CLASS A
- CISPR 24
- EN 55024
- EN 61000-3-2
- EN 61000-3-3
- ETSI EN 300 386
- GB/T 9254
- YD/T 993 |
| IEEE Standard |
- 802.3x/802.3ad/802.3AH/802.1P/802.1Q/802.1X/802.1D/802.1w/802.1s/802.1AG
- 802.1x/802.1Qbb/802.1az/802.1Qaz |
| Safety |
- UL 60950-1
- CAN/CSA C22.2 No 60950-1
- IEC 60950-1
- EN 60950-1
- AS/NZS 60950-1
- FDA 21 CFR Subchapter J
- GB 4943.1 |
| Performance and scalability |
| Virtualization |
- IRF2.0 stack (9)
- M-LAG device number (2)
- ED group (8)
|
| ACL |
- max number of ingress ACL(16k)
- max number of ingress Car (8k)
- max number of ingress Counter (8k)
- max number of egress ACL (1024)
- max number of egress Car (512)
- max number of egress Counter (512)
|
| Forwarding table |
- Jumbo frame length(byte) (1000)
- Mirroring group ()
- PBR policy (1000)
- PBR node (256)
- max number of MAC per switch (288k max)
- max number of ARP entries IPv4 (208k max)
- max ND table size for IPv6 (104k max)
- IPv4 FIB (250k max)
- IPv6 FIB (120k max)
- IPv4 l2 multicast group (16000)
- IPv4 l3 multicast group (16000)
- IPv4 multicast routing (16k)
- IPv6 l2 multicast group (8000)
- IPv6 l3 multicast group (8000)
- IPv6 multicast routing (8k)
- LAG group (1024)
- LAG member per group (32)
- ECMP group (max 4k)
- ECMP member per group (2-128)
- VRF (4095)
|
| Interface |
- Loopback interface number (128)
- L3 sub interface number (1000)
- SVI interface number (2k)
- VxLAN AC number (15k)
- VxLAN VSI number (15k)
- VxLAN tunnel number (2k)
- VSI interface number (8k)
- IPv4 tunnel number (511)
- IPv6 tunnel number (128)
- VLAN number (4094)
|
| Performance |
- RIB (500k)
- MSTP instance (64)
- PVST instance (510)
- PVST logical port number (2000)
- VRRP VRID (255)
- VRRP group (256)
- NQA group (32)
|
| Static table |
- static mac-address (1024)
- static multicast mac-address (4096)
- static ARP (1k)
- static ND (1k)
- static IPv4 routing table (4k)
- static IPv6 routing table (2k)
|
