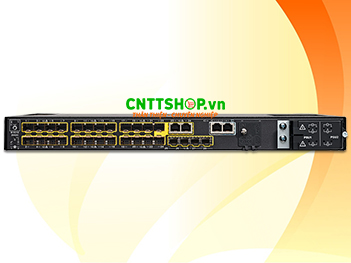

Switch công nghiệp Cisco Catalyst IE-9310-26S2C-E
| Part Number |
:
|
| List Price |
: $
|
| Giá bán |
:
|
| Bảo hành |
:
|
| Made In |
:
|
| Stock |
:
|
Thông số kỹ thuật switch Cisco IE-9310-26S2C-E
| Datasheet IE-9310-26S2C-E | |
| Specifications | |
| Port |
22x 100/1000M SFP fiber ports (downlinks) 2x Combo (100/1000M SFP, 10/100/1000M RJ-45) ports (downlinks) 4x 1G SFP fiber ports (uplinks) |
| Software License (default) | Network Essentials |
| Performance | |
| Forwarding rate | 28 Gbps (line rate/nonblocking) |
| Switching bandwidth | 56 Gbps (switching bandwidth is full-duplex capacity) |
| Number of queues | 8 egress |
| IGMP multicast groups | 1000 |
| VLANs | 1024 |
| IPv4 indirect routes | 4000 |
| STP instances | 128 |
| Access Control List (ACL), PACL, VACL, RACL | 1408 |
| Hardware Specification | |
| Hardware |
4GB DRAM 8GB onboard flash memory |
| Removable storage | USB, SD card |
| Alarms |
4 dry-contact alarm inputs 1 dry-contact Form-C relay alarm output |
| Console ports | 1 RS-232 (via RJ-45), 1 Micro USB |
| Rated MTBF (hours) | 435,092 |
| Power | |
| Power inputs | Dual AC/DC power inputs |
| Power consumption | 61W |
| Physical Configurations | |
| Dimensions (H x W x D) |
1.72 x 17.5 x 14.0 in. with PWR-RGD-AC-DC-H / PWR-RGD-LOW-DC-H 1.72 x 17.5 x 15.18 in. with PWR-RGD-AC-DC-250 |
| Weight | 12.2 lb (5.53 kg) |
| Mounting | Rack mount |
Bạn đang cần tư vấn về sản phẩm: IE-9310-26S2C-E ?
Switch công nghiệp Cisco IE-9310-26S2C-E này có 4GB DRAM, flash memory8GB ạ
Switch công nghiệp Cisco IE-9310-26S2C-E có forwarding rate là 28 Gbps, switching bandwidth là 56 Gbps ạ
Có thể quản trị switch công nghiệp Cisco IE-9310-26S2C-E bằng cấu lệnh CLI hoặc giao diện WebUI ạ
