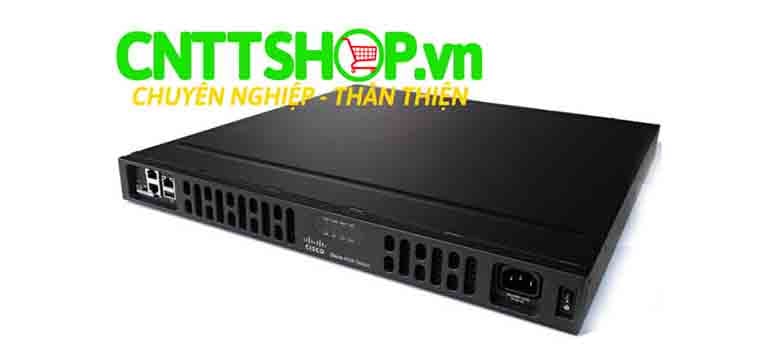

ISR4331/K9 Router Cisco 3 GE, 2 NIM, 1 SM, 4 GB FLASH, 4 GB DRAM
Cisco ISR4331/K9 Integrated Services Router ISR 4331 3 GE, 2 NIM, 1 SM, 4 GB FLASH, 4 GB DRAM default memory CON-SNT-ISR4331K
Cisco ISR4331/K9 Integrated Services Router ISR 4331 3 GE, 2 NIM, 1 SM (CON-SNT-ISR4331K)
Cisco Part Number : ISR4331/K9
List Price : $3,300
Bảo hành : 12 tháng
Made In : Asia/US/EU
Thiết bị định tuyến ISR4331/K9 tạo thành một nền tảng WAN thông minh mang lại hiệu suất, tính bảo mật và khả năng hội tụ mà các văn phòng chi nhánh hiện nay cần. Cisco ISR4331/K9 hỗ trợ công nghệ Cisco IWAN, là một dịch vụ phần mềm thông minh cho phép bạn kết nối người dùng, thiết bị và vị trí văn phòng chi nhánh một cách đáng tin cậy và an toàn qua một loạt các kết nối WAN.
| View Datasheet ISR4331/K9 |
Công nghệ Cisco IWAN tự động định tuyến lưu lượng qua liên kết "tốt nhất" dựa trên các ứng dụng và điều kiện mạng up-to-the-minute cho những trải nghiệm ứng dụng tuyệt vời. Bạn có thể kiểm soát chặt chẽ hiệu suất ứng dụng, sử dụng băng thông, bảo mật dữ liệu và tính sẵn có của các liên kết mạng WAN - kiểm soát mà bạn cần khi các chi nhánh của bạn có 1 số doanh nghiệp quan trọng hơn.
Thông số kỹ thuật
|
Product Code |
Cisco ISR4331/K9 |
|
Aggregate Throughput |
100 Mbps to 300 Mbps |
|
Total onboard WAN or LAN 10/100/1000 ports |
3 |
|
RJ-45-based ports |
2 |
|
SFP-based ports |
2 |
|
Enhanced service-module (SM-X) slot |
1 |
|
NIM (Network Interface Modules) slots |
2 |
|
Onboard ISC slot |
1 |
|
Memory |
4 GB (default) / 16 GB (maximum) |
|
Flash Memory |
4 GB (default) / 16 GB (maximum) |
|
Power-supply options |
Internal: AC and PoE |
|
Rack height |
1 RU |
|
Dimensions (H x W x D) |
44.45 x 438.15 x 438.15 mm |
|
Package Weight |
12.96 Kg |
Các loại nguồn sử dụng cho router Cisco ISR4331/K9
|
Cisco 4331 ISR |
PWR-4330-AC(=) |
AC Power Supply for Cisco ISR 4330 (Default) |
|
PWR-4330-POE-AC(=) |
AC Power Supply with POE Module for Cisco ISR 4330 |
Part Ram dùng nâng cấp cho router Cisco ISR4331/K9
| MEM-4300-4G | 4G DRAM (2G+2G) for Cisco ISR 4330 and 4350 (Default) |
| MEM-4300-4GU8G | 4G to 8G DRAM Upgrade (4G+4G) for Cisco ISR 4330 and 4350 |
| MEM-4300-4GU16G | 4G to 16G DRAM Upgrade (8G+8G) for Cisco ISR 4330 and 4350 |
Part nâng cấp Flash cho router Cisco ISR4331/K9
|
Cisco 4300 Series Routers (4351, 4331, and 4321) |
MEM-FLSH-4G |
4G eUSB Flash Memory for Cisco ISR 4300 (Soldered on motherboard) |
|
MEM-FLSH-4U8G |
4G to 8G eUSB Flash Memory Upgrade for Cisco ISR 4300 |
|
|
MEM-FLSH-4U16G |
4G to 16G eUSB Flash Memory Upgrade for Cisco ISR 4350 and 4330 |
License dùng cho router Cisco ISR4331/K9
| SL-4330-IPB-K9 | IP Base License (Paper) for Cisco 4331 | |
| SL-4330-SEC-K9(=) | Security License (Paper) for Cisco 4331 (System & Spare) | |
| FL-4330-HSEC-K9(=) | U.S. Export Compliance Security PAK (E-Delivery/Paper) for Cisco 4331 (System & Spare) | |
| SL-4330-SECNPE-K9 | Security No Payload Encryption License (Paper) for Cisco 4331 (System) | |
| SL-4330-SECNPE-K9= | Security No Payload Encryption (E-Delivery/Paper) License for Cisco 4331 (only as Spare) | |
| SL-4330-UC-K9 | Unified Commn. License (Paper) for Cisco 4331 (System) | |
| SL-4330-UC-K9= | Unified Commn. License (E-Delivery/Paper) for Cisco 4331 (Spare) | |
| SL-4330-APP-K9 | AppX License (Paper) for Cisco 4331 (System) | |
| SL-4330-APP-K9= | AppX License (Paper) for Cisco 4331 (Spare) | |
| FL-4330-PERF-K9(=) | Performance License (E-Delivery/Paper) for Cisco 4331 (System & Spare) | |
| ISR4331-SEC/K9 | Cisco ISR 4331 Security Bundle w/SEC license | CON-SNT-ISR4331S |
| ISR4331-V/K9 | Cisco ISR 4331 UC Bundle, PVDM4-32, UC License | CON-SNT-ISR4331V |
| ISR4331-VSEC/K9 | Cisco ISR 4331 VSEC Bundle, PVDM4-32 w/UC, SEC Lic, CUBE-10 | CON-SNT-ISR4331VS |
| ISR4331-AX/K9 | Cisco ISR 4331 AX Bundle w/APP, SEC license | CON-SNT-ISR4331AX |
| ISR4331-AXV/K9 | Cisco ISR 4331 AXV Bundle w/APP, UC, PVDM4-32, SEC license | CON-SNT-ISR4331XV |
Module Card sử dụng cho Router Cisco ISR4331/K9
| Part Number | Minimum IOS-XE Version |
Description |
|
UCS E-Series Server Blade |
||
| UCS-E160D-M1/K9 | 3.10 | UCS-E, double-wide, 6-core CPU, 2x8 Gb SD, 1x8 Gb RDIMM, 1-3 HDD |
| UCS-E160D-M2/K9 | 3.10 | UCS-E, double-wide, 6-core CPU, 2x8 Gb SD, 1x8 Gb RDIMM, 1-3 HDD. Note: Not available for the Cisco 2911 and 2901 |
| UCS-E160DP-M1/K9 | 3.10 | UCS-E,DoubleWide,6CoreCPU,2x8GSD, 1x8GRDIMM,1-2HDD,1PCIe |
| UCS-E160S-M3/K9 | 3.16.2 | UCS-E,SingleWide,Intel Broadwell 6 Core CPU, Up to 32 GB RAM, 1-2 HDD |
| UCS-E140D-M1/K9 | 3.10 | UCS-E, double-wide, 4-core CPU, 2x8 Gb SD, 1x8 Gb RDIMM, 1-3 HDD |
| UCS-E140S-M1/K9 | 3.10 | UCS-E,SingleWide,4Cor CPU,2x8G SD,1x8GBUDIMM,1-2 HDD |
| UCS-E140S-M2/K9 | 3.10 | UCS E-Series, single-wide, Intel® Xeon® E3 1100 v2 Quad core processor, 8 GB RAM, 2 SD cards |
| UCS-EN120S-M2/K9 | 3.10 | UCS E-Series Network Compute Engine, 2-core CPU, 4-16 GB RAM, 1-2 HDD, 1-2 SD cards |
| UCS-EN140N-M2/K9 | 3.15.1 | UCS E-Series Network Compute Engine, 4C, 4 - 8GB RAM, 1 HDD |
|
Ethernet Switch |
||
| NIM-ES2-4 | 3.15 | Cisco 4-Port Gigabit Ethernet Switch NIM |
| NIM-ES2-8 | 3.15 | Cisco 8-Port Gigabit Ethernet Switch NIM |
| NIM-ES2-8-P | 3.15 | Cisco 8-Port Gigabit Ethernet Switch NIM with PoE Support |
| SM-X-ES3-16-P | 3.15 | 16-port POE layer 2/3 EtherSwitch Service Module |
| SM-X-ES3-24-P | 3.15 | 24-port POE layer 2/3 EtherSwitch Service Module |
| Ethernet Routed-Port | ||
| NIM-1GE-CU-SFP | 3.15 | 1-port Gigabit Ethernet NIM, dual mode SFP or RJ45 |
| NIM-2GE-CU-SFP | 3.15 | 2-port Gigabit Ethernet NIM, dual mode SFP or RJ45 |
| SM-X-6X1G | 3.13.1 | 6-port Gigabit Ethernet SFP Module |
| SM-X-4X1G-1X10G | 3.13.1 | 4-port Gigabit Ethernet OR 1-port 10 Gigabit Ethernet SFP Module |
| Wireless WAN (3G, 4G, LTE) | ||
| NIM-4G-LTE-GA | 3.15.1 | 4G LTE NIM for Global (Europe, Australia & New Zealand) |
| NIM-4G-LTE-NA | 3.15.1 | 4G LTE NIM for North America AT&T and Canada |
| NIM-4G-LTE-ST | 3.15.1 | 4G LTE NIM for Sprint |
| NIM-4G-LTE-VZ | 3.15.1 | 4G LTE NIM for Verizon |
| NIM-4G-LTE-LA | 16.3.2 | 4G LTE for Asia Pacific, Australia and Latam |
| NIM-LTEA-EA | 16.3.2 | LTE Advanced for Europe and North America |
| NIM-LTEA-LA | 16.3.2 | LTE Advanced for Asia Pacific, Australia and Latam |
| T1, E1, and G.703 Multiflex Trunk Voice and WAN Interface Cards | ||
| NIM-1MFT-T1/E1 | 3.10 | 1-port multiflex trunk voice/clear-channel data T1/E1 module |
| NIM-2MFT-T1/E1 | 3.10 | 2 port Multi-flex Trunk Voice/Clear-channel Data T1/E1 Module |
| NIM-4MFT-T1/E1 | 3.10 | 4 port Multi-flex Trunk Voice/Clear-channel Data T1/E1 Module |
| NIM-8MFT-T1/E1 | 3.10 | 8 port Multi-flex Trunk Voice/Clear-channel Data T1/E1 Module |
| Packet Voice Digital Signal Processor Modules 4 | ||
| SM-X-PVDM-1000 | 3.16.1 | 1024-channel high-density voice DSP module |
| SM-X-PVDM-500 | 3.16.1 | 768-channel high-density voice DSP module |
| PVDM4-256 | 3.10 | 256-channel voice DSP module |
| PVDM4-128 | 3.10 | 128-channel voice DSP module |
| PVDM4-64 | 3.10 | 64-channel voice DSP module |
| PVDM4-32 | 3.10 | 32-channel voice DSP module |
| Voice Interface Cards | ||
| NIM-2FXS | 3.16 | 2-port FXS NIM |
| NIM-4FXS | 3.16 | 4-port FXS NIM |
| NIM-2FXO | 3.16 | 2-port FXO NIM |
| NIM-4FXO | 3.16 | 4-port FXO NIM |
| NIM-2FXSP | 16.5 | 2-port FXS NIM |
| NIM-4FXSP | 16.5 | 4-port FXS NIM |
| NIM-2FXS/4FXOP | 16.5 | 2-port FXS & 4-port FXO NIM |
| NIM-2FXS/4FXO | 3.16 | 2-port FXS & 4-port FXO NIM |
| NIM-4E/M | 3.16 | 4-Port E/M NIM |
| NIM-2BRI-NT/TE | 3.16 | 2-port BRI (NT and TE) NIM |
| NIM-4BRI-NT/TE | 3.16 | 4-port BRI (NT and TE) NIM |
| SM-X-8FXS/12FXO | 16.7.1 | 8-port FXS & 12-port FXO single-wide Service Module |
| SM-X-16FXS/2FXO | 16.7.1 | 16-port FXS & 2-port FXO single-wide Service Module |
| SM-X-24FXS/4FXO | 16.7.1 | 24-port FXS & 4-port FXO single-wide Service Module |
| Broadband | ||
| NIM-VAB-A | 3.14 | Multi Mode VDSL2/ADSL/2/2+ NIM Annex A |
| NIM-VA-B | 3.14 | Multi Mode VDSL2/ADSL/2/2+ NIM Annex B |
| NIM-VAB-M | 3.14 | Multi Mode VDSL2/ADSL/2/2+ NIM Annex M |
| Serial WAN Interface | ||
| SM-X-1T3/E3 | 3.9 | 1-port clear-channel T3/E3 Service Module |
| NIM-1T | 3.13 | 1-Port Serial High-Speed WAN Interface Card |
| NIM-1T | 3.13 | 2-Port Serial High-Speed WAN Interface Card |
| NIM-4T | 3.13 | 4-Port Serial High-Speed WAN Interface Card |
| Async WAN Interface | ||
| NIM-16A | 16.4.1 | 16-port Asynchronous Module |
| NIM-24A | 16.4.1 | 24-port Asynchronous Module |
| Channelized T1/E1 and ISDN PRI | ||
| NIM-1CE1T1-PRI | 3.10 | 1 port Multi-flex Trunk Voice/Channelized Data T1/E1 Module |
| NIM-2CE1T1-PRI | 3.10 | 2 port Multi-flex Trunk Voice/Channelized Data T1/E1 Module |
| NIM-8CE1T1-PRI | 3.10 | 8 port Multi-flex Trunk Voice/Channelized Data T1/E1 Module |
| Storage | ||
| SSD-MSATA-200G (on motherboard) | 3.13.1 | 200 GB, mSATA Solid State Disk (for ISR motherboard slot) |
| NIM-SSD | 3.10 | NIM Carrier Card for up to 2 SSD Drives |
| SSD-SATA-200G | 3.10 | 200 GB, SATA Solid State Disk for NIM-SSD |
| SSD-SATA-400G | 400 GB, SATA Solid State Disk for NIM-SSD | |
| SSD-SATA-800G | 800 GB, SATA Solid State Disk for NIM-SSD | |
| SM-X-NIM-ADPTR | 3.14 | SM-X Adaptor for one NIM module |
Bạn đang cần tư vấn về sản phẩm: #ISR4331/K9 ?
Có 4 bình luận:
Chào bạn,
iWAN (Intelligent WAN) là SD-WAN do Cisco phát triển. Bạn có thể tham khảo về ý tưởng của IWAN tại Blog của Cisco:
https://blogs.cisco.com/perspectives/ciscos-iwan-intelligent-wan-for-your-sd-wan
Chào anh,
Cảm ơn anh đã liên hệ với CNTTShop!
Router ISR4331/K9 với base performance là 100 Mbps, chưa bao gồm license upgrade lên 300 Mbps. Để nâng cấp performance lên 300 Mbps anh phải mua thêm license FL-4330-PERF-K9.
Thông tin đến anh!
