Interface Specification

Service Port

1*10/100/1000M Base-T adaptive Ethernet Port, 802.3af PoE (LAN1)

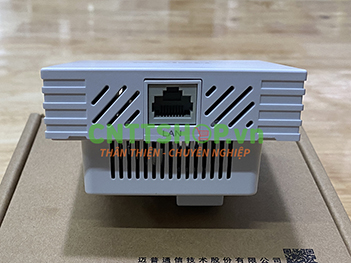

1*10/100/1000M Base-T adaptive Ethernet Port (LAN0)

Power Interface

N/A

Indicators

1* Green LED (For System and Radio status)

Reset Button

1* Reset Button (Factory reset)

Environment Specification

Working Temperature

0℃ to +45℃

Working Humidity

10% to 90% non-condensing

Storage Temperature

-40℃ to +70℃

Storage Humidity

5% to 95% non-condensing

IP Rating

IP40

Weight

0.24kg

Dimension (W*D*H) mm

86*86*54

Hardware Specification

Installation Mode

Wall Mounting

Power Supply

PoE Standard: IEEE 802.3af / 802.3at

Power Consumption

9W

Radio Specification

RF Design

Dual-radio design, one 2.4 GHz radio and one 5 GHz radio

- Radio1: 2.4 GHz, 2 streams: 2*2

- Radio2: 5 GHz, 2 streams: 2*2

Operating Bands

- Radio1: 2.400 to 2.4835GHz

- Radio2: 5.150–5.350GHz, 5.47–5.725GHz, 5.725–5.850GHz

Transmission Rate

- 802.11b: 1Mbps, 2Mbps, 5.5Mbps, 11Mbps

- 802.11a/g: 6Mbps, 9Mbps, 12Mbps, 18Mbps, 24Mbps, 36Mbps, 48Mbps, 54Mbps

- 802.11n: 6.5Mbps-300Mbps (MCS0-MCS31, HT20-HT40), 400Mbps with 256-QAM

- 802.11ac: 6.5Mbps-866Mbps (MCS0-MCS9, NSS=1-2, VHT20-VHT80)

Antenna

Internal 4 Antennas

Antenna Gain

2.4 GHz: 4.0dBi
5 GHz: 4.0dBi

Transmit Power

2.4 GHz: +20 dBm
5 GHz: +20 dBm

Transmit Power Adjustment

1 dBm

Modulation Mode

- 802.11b: BPSK, QPSK, CCK
- 802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM
- 802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM

Modulation and Encoding

- Low Density Parity Check (LDPC)
- Maximum Likelihood Detection (MLD)
- Beamforming

Advanced RF Features

- Channel Rate Adjustment, include TPC (Transmit Power Control)
- ACS (Automatic Channel Scanning)

WIFI Specification

WIFI Standards

- IEEE 802.11a/b/g/n/ac

SSID Numbers

16*SSIDs (2.4GHZ+5GHZ)

Channelization

20, 40, 80 MHz

STA Capacity

256

Working Mode

FIT/FAT Mode

Network Features

PPPoE Client, DHCP Server/Client, Static IP, DNS Proxy, Bridge, NAT

(Note: FAT Working Mode)

Security Type

Open, PSK, WPA-Personal, WPA-Enterprise, WPA2-Personal, WPA2-Enterprise, WPA3-Personal, WPA3-Enterprise, Portal, 802.1X, Radius

Working Bandwidth

- 802.11ac: VHT80, VHT40, VHT20
- 802.11n: HT40, HT20

Data Rate

- Radio1: 2.4 GHz, 300 Mbps
- Radio2: 5 GHz, 867 Mbps
- Combined: 1.2 Gbps

MIMO Technologies

- Wave2 Multi-User Multiple Input Multiple Output (MU-MIMO)
- Maximum Ratio Combining (MRC)
- Space-Time Block Coding (STBC)
- Cyclic Delay/Cyclic Shift Diversity (CDD/CSD)
- Dynamic MIMO power saving

Advanced WIFI Features

- Short GI (Short Guard Interval)
- DFS (Dynamic Frequency Selection)
- Spectrum Navigation
