| Operating System |
QTS 5.2.0 |
| Supported Client Operating Systems |
Apple Mac OS 10.10 or later
Ubuntu 14.04, CentOS 7, RHEL 6.6, SUSE 12 or later Linux
IBM AIX 7, Solaris 10 or later UNIX
Microsoft Windows 7, 8, 10 and 11 |
| Supported Browsers |
Apple Safari (latest version)
Google Chrome (latest version)
Microsoft Edge (latest version)
Mozilla Firefox (latest version) |
| Supported Languages |
Chinese (Traditional & Simplified), Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese (Brazil), Romanian, Russian, Spanish, Swedish, Thai, Turkish |
| Storage Pool |
SED Storage Pool |
| Maximum Pool size |
308 TB |
| Maximum number of storage pool |
128 |
| Volume Type |
Thick, Thin, Static |
| Maximum volume size |
250 TB |
| Note |
At least 4 GB RAM is required. |
| Maximum number of volume |
128 |
| Maximum shared folder size |
250 TB |
| Maximum number of shared folder |
512 |
| JBOD Expansion |
VJBOD / VJBOD Cloud |
| iSCSI Service |
Có |
| Fibre Channel Service |
Có |
| LUN Type |
Thick, Thin |
| File-based iSCSI LUN |
Có |
| Block-based iSCSI LUN |
Có |
| Maximum LUN size |
250 TB |
| Note |
At least 4 GB RAM is required. |
| Maximum number of targets LUN |
128 |
| LUN feature |
LUN Mapping (LUN can be moved between iSCSI and FC)
LUN Masking
WWPN Aliases Import/Export
FC Port Group |
| Auto Tiering |
Requires minimum 2GB memory. |
| RAID Type |
8-bay (and more): JBOD, Single, RAID 0, 1, 5, 6, 10, 50, 60
6-bay: JBOD, Single, RAID 0, 1, 5, 6, 10, 50
4-bay: JBOD, Single, RAID 0, 1, 5, 6, 10
2-bay: JBOD, Single, RAID 0, 1 |
| RAID Group |
To ensure data security, system stability, and storage performance, the maximum number of drives for a single RAID group is now 16. Users can combine multiple RAID groups into a large storage pool using RAID 50, RAID 60, or RAID 10 as the RAID configuration. |
| RAID Level Migration |
Có |
| RAID Expansion (by adding Disk) |
Có |
| RAID Expansion (by replacing bigger Disks) |
Có |
| Storage Pool Expansion (by adding RAID Group) |
Có |
| RAID Hot Spare |
Global, Local |
| RAID Sync/Rebuild/Scrubbing |
Có |
| Internal drive |
EXT4 |
| External drive |
EXT3, EXT4, NTFS, FAT32, HFS+, and exFAT (optional for ARM model)
Note: To use exFat in certain models you must purchase an exFAT driver license from License Center |
| Disk, Enclosure Locate |
Có |
| Disk S.M.A.R.T. Scan |
Có |
| Disk S.M.A.R.T. Data Migration |
Có |
| Ironwolf Health Management |
Có |
| Secure Erase |
Có |
| SSD Trim |
Có |
| SSD Life Estimation |
Có |
| Disk Roaming |
Có |
| Disk Standby |
Có |
| Volume Snapshot |
Có |
| LUN Snapshot |
Có |
| Maximum Snapshot (Per System) |
Check maximum number of snapshots of your NAS |
| Maximum Snapshot (Per Volume / LUN) |
Check maximum number of snapshots of your NAS |
| Minimum Snapshot Interval |
5 minutes |
| Snapshot Retention Policy |
Có |
| Self-serve Snapshot Recovery |
Có |
| Application Consisted Snapshot |
Có |
| Snapshot Full Clone |
Có |
| Snapshot Replica / Vault |
Có |
| SSD profiling tool |
Có |
| External Device Management |
Có |
| Mount Smart Phone (MTP) |
Có |
| External RAID Device (QNAP so on) Management (External Device Mode) |
Có |
| External RAID Device (QNAP so on) Management (NAS Mode) |
Có |
| File Server |
File sharing across Windows, Mac, and Linux/UNIX
Microsoft networking (CIFS/SMB)
Apple networking (AFP)
NFS version 3/4 services |
| FTP Server |
QuFTP
FTP, SFTP and TFTP protocols
FTP over SSL/TLS (explicit FTPS)
FXP support |
| Maximum FTP connection |
1024 |
| File Station (Web) |
Có |
| Object Storage |
Có |
| Local user account |
4,096 |
| Local group account |
512 |
| Domain user/group account |
200,000 |
| Domain Security |
Có |
| Domain Controller |
Có |
| Shared folder permission |
Advanced folder permission (AFP, CIFS/SMB, FTP, and File Station) |
| Windows ACL |
CIFS/SMB |
| User quota |
Có |
| Group quota |
Có |
| Folder quota |
Snapshot shared folder |
| Home folder |
Có |
| Resource Monitor |
Có |
| SNMP |
V2, V3 |
| Network recycle bin |
Recover files deleted using AFP, CIFS/SMB, and File Station
Automatic cleanup and file type filter |
| System Log & Notification Center |
Log recording: 3,000 event per second |
| Smart Fan |
Schedule on/off |
| Internet protocol |
IPv4, IPv6 |
| Virtual Switch |
Có |
| Port trunking |
7 modes |
| VLAN |
Có |
| DHCP Server |
Có |
| DDNS (Dynamic Domain Name Service) |
Có |
| Network access protection with auto-blocking |
SSH, Telnet, HTTP(S), FTP, CIFS/SMB, and AFP |
| Security Counselor |
Có |
| Malware Remover |
Có |
| AES 256-bit Volume Encryption validated by FIPS 140-2 CAVP |
Có |
| 2-step verification |
Có |
| Allow/Deny List |
Có |
| Access Protection |
Có |
| Service binding |
Có |
| Firewall |
Có |
| vSphere Web Client Plug-in |
Có |
| VMware vSphere VAAI for iSCSI |
Có |
| VMware vSphere VAAI for NAS |
Có |
| Windows ODX |
Có |
| Windows/VMware Snapshot Agent |
Có |
| HTTP/HTTPS Connections |
TLS 1.0/1.1/1.2/1.3 |
| Supports WebDAV Connection |
Có |
| Supports Virtual Hosts |
32 |
| Qsync |
Note: At least 1 GB RAM is required. |
| [Qsync] Management Mode |
User customization, Central |
| [Qsync] Qsync client supported platforms |
Windows, macOS, Ubuntu, Android, and iOS |
| [Qsync] Maximum number of version control |
64 |
| HybridMount |
Note: At least 1 |
Switch
.png){kind=icon}
.png){kind=logo}

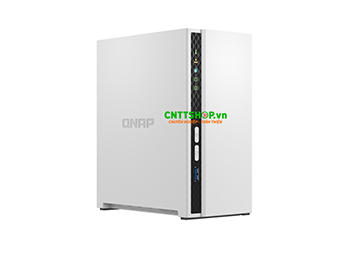

Bạn đang cần tư vấn về sản phẩm: TS-233 ?
