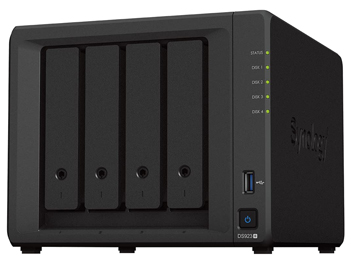

Thiết bị lưu trữ NAS Synology DiskStation DS923+ 4-Bay sequential

Hardware Specifications

CPU

AMD Ryzen R1600

1

2

64-bit

2.6 (base) / 3.1 (turbo) GHz

Memory

4 GB DDR4 ECC SODIMM

4 GB (4 GB x 1)

2

32 GB (16 GB x 2)

• Synology reserves the right to replace memory modules with the same or higher frequency based on supplier's product life cycle status. Rest assured that the compatibility and stability have been strictly verified with the same benchmark to ensure identical performance.

• Please select Synology memory modules for optimum compatibility and reliability. Synology will not provide complete product warranty or technical support if non-Synology memory modules are used for memory expansion.

• For more information about the recommended memory configurations, please check the Hardware Installation Guide of your Synology product.

Storage

4

9 (DX517 x 1)

2 (NVMe)

• 3.5" SATA HDD

• 2.5" SATA SSD

• M.2 2280 NVMe SSD

• The hot swappable drive feature is not supported by M.2 SSD slots.
• "Compatible drive type" indicates drives that have been tested to be compatible with Synology products. This term does not indicate the maximum connection speed of each drive bay.

External Ports

2

2

1

eSATA

The hot swappable drive feature is not supported by M.2 SSD slots.

"Compatible drive type" indicates drives that have been tested to be compatible with Synology products. This term does not indicate the maximum connection speed of each drive bay.

PCIe

1 x Gen3 x2 network upgrade slot

Appearance

166 mm x 199 mm x 223 mm

2.24 kg

Others

92 mm x 92 mm x 2 pcs

• Full-Speed Mode

• Cool Mode

• Quiet Mode

22.9 dB(A)

Power Supply Unit / Adapter

100 watts

100V to 240V AC

50/60 Hz, Single Phase

35.51 watts (Access)

11.52 watts (HDD Hibernation)

121.09 BTU/hr (Access)

39.28 BTU/hr (HDD Hibernation)

• For more information on how power consumption is measured, refer to this article.

• Noise testing was conducted with the Synology system fully installed with Synology SATA HDDs and in an idle state. Two GRAS 40AE microphones are placed at a 1 m distance from the front and rear of the device. Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75˚C; Humidity: 58.2-61.8%

Temperature

0°C to 40°C (32°F to 104°F)

-20°C to 60°C (-5°F to 140°F)

5% to 95% RH

Certification

• FCC

• CE

• BSMI

• VCCI

• RCM

• UKCA

• EAC

• CCC

• KC

Environment

RoHS Compliant

Packaging Content

• Main Unit X 1

• Accessory Pack X 1

• AC Power Adapter X 1

• AC Power Cord X 1

• RJ-45 LAN Cable X 2

• Quick Installation Guide X 1

Optional Accessories

• DDR4 ECC SODIMM: D4ES02-4G/D4ES02-8G/D4ES01-16G

• Expansion Units: DX517

• Enterprise Series 3.5" SATA HDD: HAT5300 Series

• Plus Series 3.5" SATA HDD: HAT3300 Series

• Enterprise Series 2.5" SATA SSD: SAT5200 Series

• Enterprise Series M.2 2280 NVMe SSD: SNV3400 Series

• 10GbE Network Upgrade Module: E10G22-T1-Mini
