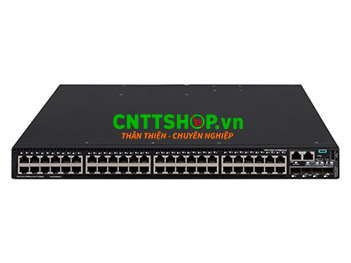

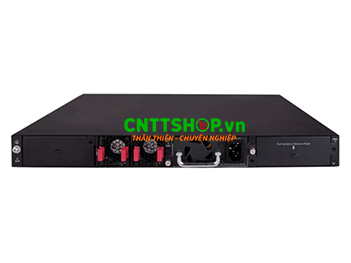

| Datasheet R8M26A |
|
Specifications
|
|
I/O ports and slots
|
48 RJ-45 autosensing 10/100/1000 ports; Duplex: ports 1-48 support 10BASE-T/100BASETX, 1000BASE-T (full only) Ports 41-48 support MACsec
4 SFP+ 1/10GbE ports
1 port expansion module slot
|
|
Additional ports and slots
|
1 dual-personality (RJ-45 or mini USB) serial console port
|
|
1 RJ-45 out-of-band management port
|
|
1 USB 2.0
|
|
Power supplies
|
2 power supply slots
1 minimum power supply required (ordered separately)
|
|
Fan tray
|
Airflow direction is Side to Back and Back to Side
|
| Physical characteristics |
|
Dimensions
|
17.32(w) x 14.17(d) x 1.72(h) in (44.0 x 36.0 x 4.36 cm) (1U height)
|
| Weight |
≤7kg
|
|
Memory and processor
|
2 GB SDRAM; Packet buffer size: 4 MB, 512 MB flash
|
|
Mounting and enclosure
|
Mounts in an EIA standard 19-inch telco rack or equipment cabinet (hardware included)
|
|
Performance
|
IPv6 Ready Certified
|
|
1000 Mb Latency
|
< 5 μs
|
|
10 Gbps Latency
|
< 3 μs
|
|
Throughput
|
up to 180 Mpps
|
|
Routing/Switching capacity
|
288 Gbps
|
|
Routing table size
|
32768 entries (IPv4), 16384 entries (IPv6)
|
|
MAC address table size
|
up to 64K, recommended 32K
|
| Environment |
|
Operating temperature
|
23°F to 113°F (-5°C to 45°C)
|
| Operating relative humidity |
5% to 95%, noncondensing
|
| Non-operating/Storage temperature |
-40°F to 158°F (-40°C to 70°C)
|
| Non-operating/Storage relative humidity |
5% to 95%, noncondensing
|
| Acoustic |
Low-speed fan: 49.2 dB, High-speed fan: 68.9 dB; ISO 7779
|
| Electrical characteristics |
|
Frequency
|
50/60 Hz
|
| Maximum heat dissipation |
Ranges from 81 BTU/hr to 327 BTU/hr depending on power supply configuration
|
| Voltage |
90 VAC to 264 VAC
-36 VDC to -72 VDC
|
|
Current
Maximum power rating
|
2A
150 W
|
| Idle power |
27W
|
| Safety |
UL 60950-1; EN 60825-1 Safety of Laser Products-Part 1; EN 60825-2 Safety of Laser Products-Part 2; IEC 60950-1; EN 60950-1; CAN/CSA-C22.2 No. 60950-1; FDA 21 CFR Subchapter J; ROHS Compliance; AS/NZS 60950-1; GB 4943; EAC (EurAsian Conformity Certification)
|
| Emissions |
EMC Directive 2004/108/EC; FCC (CFR 47, Part 15) Class A; EN 61000-4-11:2004; ANSI C63.4-2009; EN 61000-3-3:2008; VCCI V-3/2012.04; EN 61000-3- 2:2006+A1:2009+A2:2009 ; EN 61000-4-3:2006; EN 61000-4-4:2012; EN 61000-4-5:2006; EN 61000-4-6:2009; CISPR 22:2008 Class A; EN 55022:2010 Class A; EN 61000-4-29: 2000; CISPR 24:2010; EN 300 386 V1.6.1; VCCI V-3/2013.04 Class A
|
| Immunity |
| Generic |
EN 55024 |
| ESD |
EN300 386 |
| Management |
IMC - Intelligent Management Center; Command-line interface; SNMP manager |
