| WI-FI |
| Wi-Fi Standards |
IEEE 802.11a/b/g/n/ac Wave 2 |
| Supported Rates |
• 802.11ac: 6.5 to 867 (MCS0 to MCS9, NSS = 1 to 2 for VHT20/40/80)
• 802.11n: 6.5 Mbps to 450Mbps (MCS0 to MCS15)
• 802.11a/g: 54, 48, 36, 24, 18, 12, 9, 6 Mbps
• 802.11b: 11, 5.5, 2 and 1 Mbps |
| MIMO |
• 2x2 SU-MIMO
• 2x2 MU-MIMO |
| Spatial Streams |
• 2 SU-MIMO
• 2 MU-MIMO |
| Channelization |
20, 40, 80MHz |
| Security |
• WPA-PSK, WPA-TKIP, WPA2 AES, 802.11i, Dynamic PSK
• WIPS/WIDS |
| Other Wi-Fi Features |
• WMM, Power Save, TxBF, LDPC, STBC, 802.11r/k/v
• Hotspot
• Hotspot 2.0
• Captive Portal
• WISPr |
| RF |
| Antenna Type |
• BeamFlex+ adaptive antennas with polarization diversity
• Adaptive antenna that provides up to 64 antenna patterns per band |
| Antenna Gain (max) |
• 2.4GHz: 0dBi
• 5GHz: 1dBi |
| Peak Transmit Power (aggregate across MIMO chains) |
• 2.4GHz: 19dBm
• 5GHz: 22dBm |
| Minimum Receive Sensitivity |
-99dBm |
| Frequency Bands |
• ISM 2.4-2.484GHz
• U-NII-1 5.15-5.25GHz
• U-NII-2A 5.25-5.35GHz
• U-NII-2C 5.47-5.725GHz
• U-NII-3 5.725-5.85GHz |
| PERFORMANCE AND CAPACITY |
| Peak PHY Rates |
• 2.4GHz: 300Mbps
• 5GHz: 867Mbps |
| Client Capacity |
Up to 100 clients per AP |
| SSID |
Up to 32 per AP |
| RUCKUS RADIO MANAGEMENT |
| Antenna Optimization |
• BeamFlex+
• Polarization Diversity with Maximal Ratio Combining (PD-MRC) |
| Wi-Fi Channel Management |
• ChannelFly
• Background Scan Based |
| Client Density Management |
• Airtime Fairness
• Airtime-based WLAN
• Prioritization |
| SmartCast Quality of Service |
• QoS-based scheduling
• Directed Multicast
• L2/L3/L4 ACLs |
| Mobility |
SmartRoam |
| Diagnostic Tools |
• Spectrum Analysis
• SpeedFlex |
| NETWORKING |
| Controller Platform Support |
• SmartZone
• ZoneDirector
• Unleashed
• Cloud Wi-Fi
• Standalone |
| IP |
IPv4, IPv6 |
| Mesh |
SmartMesh™ wireless meshing technology. Selfhealing Mesh |
| VLAN |
• 802.1Q (1 per BSSID or dynamic per use based on RADIUS)
• VLAN Pooling
• Port-based |
| 802.1x |
Authenticator & Supplicant |
| Tunnel |
L2TP, GRE, Soft-GRE |
| Policy Management Tools |
• Application Recognition and Control
• Access Control Lists
• Device Fingerprinting
• Rate Limiting |
| PHYSICAL INTERFACES |

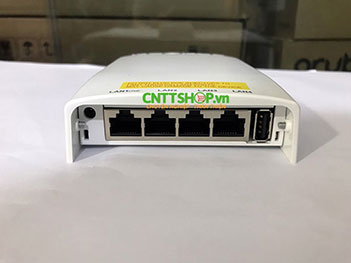

| Ethernet |
• 1 x 1GbE port, RJ-45
• 4 x 1GbE ports, one PoE-out |
| USB |
1 USB 2.0 port, Type A connector |
| PHYSICAL CHARACTERISTICS |
| Physical Size |
• 90 mm (W) x 171 mm (L), 29 mm (H)
• 3.54in (W) x 6.73in (L) x 1.14in (H) |
| Weight |
• 210g (0.46lbs) without bracket
• 282g (0.62lbs) with bracket |
| Mounting |
• Electrical wallbox; Standard US and EU single gang wall jack
• Optional bracket for offset & wall mount |
| Operating Temperature |
0°C (32°F) - 40°C (104°F) |
| Operating Humidity |
Up to 95%, non-condensing |
| Power Supply |
802.3af/802.3at 12.9W |
| CERTIFICATIONS AND COMPLIANCE |
| Wi-Fi Alliance |
• Wi-Fi CERTIFIED™ a, b, g, n, ac
• Passpoint®, Vantage, AMB, OCE |
| Standards Compliance |
• EN 60950-1 Safety
• EN 61000-4-2/3/5 Immunity
• EN 50155 Railway
• EN 50121-3-2 Railway EMC
• IEC 61373 Railway Shock & Vibration
• UL 2043 Plenum
• EN 62311 Human Safety/RF Exposure
• EN 62311
• WEEE & RoHS
• ISTA 2A Transportation
• E-Mark Automotive |
