| WI-FI |
| Wi-Fi Standards |
IEEE 802.11a/b/g/n/ac |
| Supported Rates |
• 802.11ac: 6.5 to 867Mbps (MCS0 to MCS9, NSS=1 to 2 for VHT20/40/80)
• 802.11n: 6.5Mbps to 300Mbps (MCS0 to MCS15)
• 802.11a/g: 54, 48, 36, 24, 18, 12, 9, 6Mbps
• 802.11b: 11, 5.5, 2 and 1 Mbps |
| Supported Channels |
• 2.4GHz: 1-13
• 5GHz: 36-64, 100-144, 149-165 |
| MIMO |
2x2 SU-MIMO |
| Spatial Streams |
2 SU-MIMO |
| Channelization |
20, 40, 80MHz |
| Security |
• WPA-PSK, WPA-TKIP, WPA2 AES, 802.11i, Dynamic PSK
• WIPS/WIDS |
| Other Wi-Fi Features |
• WMM, Power Save, TxBF, LDPC, STBC, 802.11r/k/v
• Hotspot
• Hotspot 2.0
• Captive Portal
• WISPr |
| RF |
| Antenna Type |
• BeamFlex+ adaptive antennas with polarization diversity
• Adaptive antenna that provides multiple unique antenna patterns per band |
| Antenna Gain (max) |
• 2.4GHz: 2dBi
• 5GHz: 3dBi |
| Peak Transmit Power (aggregate across MIMO chains) |
• 2.4GHz: 26dBm
• 5GHz: 25dBm |
| BeamFlex+ SINR Transmit Power Gain |
Up to 6 dB |
| BeamFlex+ SINR Receive Power Gain |
Up to 4 dB |
| Minimum Receive Sensitivity |
• -100dBm for 2.4GHz
• -94dBm for 5GHz |
| Frequency Bands |
• ISM 2.4-2.484GHz
• U-NII-1 5.15-5.25GHz
• U-NII-2A 5.25-5.35GHz
• U-NII-2C 5.47-5.725GHz
• U-NII-3 5.725-5.85GHz |
| PERFORMANCE AND CAPACITY |
| Peak PHY Rates |
• 2.4GHz: 300Mbps
• 5GHz: 867Mbps |
| Client Capacity |
Up to 512 clients per AP |
| SSID |
• Up to 43 per AP |
| RUCKUS RADIO MANAGEMENT |
| Antenna Optimization |
• BeamFlex+
• Polarization Diversity with Maximal Ratio Combining (PD-MRC) |
| Wi-Fi Channel Management |
• ChannelFly
• Background Scan Based |
| Client Density Management |
• Adaptive Band Balancing
• Client Load Balancing
• Airtime Fairness
• Airtime-based WLAN Prioritization |
| SmartCast Quality of Service |
• QoS-based scheduling
• Directed Multicast
• L2/L3/L4 ACLs |
| Mobility |
SmartRoam |
| Diagnostic Tools |
• Spectrum Analysis
• SpeedFlex |
| NETWORKING |
| Controller Platform Support |
• SmartZone
• ZoneDirector
• Cloud Wi-Fi
• Unleashed
• Standalone |
| IP |
IPv4, IPv6 |
| Mesh |
SmartMesh™ wireless meshing technology. Selfhealing Mesh |
| VLAN |
• 802.1Q (1 per BSSID or dynamic per use based on RADIUS)
• VLAN Pooling
• Port-based |
| 802.1x |
Authenticator & Supplicant |
| Tunnel |
L2TP, GRE, Soft-GRE |
| Policy Management Tools |
• Application Visibility and Control
• Access Control Lists
• Device Fingerprinting
• Rate Limiting |
| PHYSICAL INTERFACES |
| Ethernet |
1 x 1GbE port, RJ-45 |
| PHYSICAL CHARACTERISTICS |
| Physical Size |
• 23.9(L) x 19.5(W) x 11.0(H) cm
• 9.4(L) x 7.5(W) x 4.3(H) in |
| Weight |
• 2.1 lbs (1 kg) with bracket
• 2 lbs (0.9 kg) without bracket |
| Ingress Protection |
IP-67 |

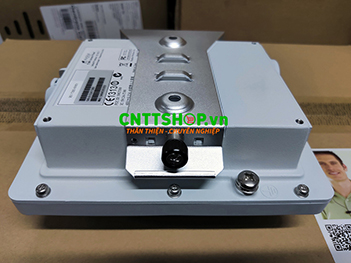

| Mounting |
• Wall
• Pole Mount Diameter 1” to 2.5”
|
| Physical Security |
• Hidden latching mechanism
• Kensington lock
• T-bar Torx
|
| Operating Temperature |
• -20°C (-40°F) to 65°C (149°F) |
| Operating Humidity |
Up to 95%, non-condensing |
| POWER |
| 802.3af PoE Input (Class 3PD) |
11W |
| CERTIFICATIONS AND COMPLIANCE |
| Wi-Fi Alliance |
• Wi-Fi CERTIFIED™ a, b, g, n, ac
• Passpoint®, Vantage |
| Standards Compliance |
• EN 60950-1 Safety
• EN 60950-22 Safety
• EN 61000-4-2/3/5 Immunity
• EN 50121-1 Railway EMC
• EN 50121-4 Railway Immunity
• IEC 61373 Railway Shock & Vibration
• EN 62311 Human Safety/RF Exposure
• WEEE & RoHS
• ISTA 2A Transportation |
