| WI-FI |
| Wi-Fi Standards |
• IEEE 802/11a/b/g/n/ac/ax |
| Supported Rates |
• 802.11ax: 4 to 1774 Mbps
• 802.11ac: 6.5 to 867Mbps (MCS0 to MCS9, NSS = 1 to 2 for VHT20/40/80)
• 802.11n: 6.5 Mbps to 300Mbps (MCS0 to MCS15)
• 802.11a/g: 6 to 54 Mbps
• 802.11b: 1 to 11 Mbps
|
| Supported Channels |
• 2.4GHz: 1-13
• 5GHz: 36-64, 100-144, 149-165 |
| MIMO |
• 2x2 SU-MIMO
• 2x2 MU-MIMO |
| Spatial Streams |
• 2 streams SU/MU MIMO 5GHz
• 2 streams SU/MU MIMO 2.4GHz |
| Radio Chains and Streams |
• 2x2:2 (5GHz)
• 2x2:2 (2.4GHz) |
| Channelization |
20, 40, 80, 160/80+80MHz |
| Security |
• WPA-PSK, WPA-TKIP, WPA2 AES, WPA3, 802.11i, Dynamic PSK, OWE
• WIPS/WIDS |
| Other Wi-Fi Features |
• WMM, Power Save, Tx Beamforming, LDPC, STBC, 802.11r/k/v
• Hotspot
• Hotspot 2.0
• Captive Portal
• WISPr |
| RF |
| Antenna Type |
• BeamFlex+ adaptive antennas with polarization diversity
• Adaptive antenna that provides unique antenna patterns per band |
| Antenna Gain (max) |
• Up to 3dBi |
| Peak Transmit Power (Tx port/chain + Combining gain) |
• 2.4GHz: 26dBm
• 5GHz: 25 dBm |
| Frequency Bands |
• ISM (2.4-2.484GHz)
• U-NII-1 (5.15-5.25GHz)
• U-NII-2A (5.25-5.35GHz)
• U-NII-2C (5.47-5.725GHz)
• U-NII-3 (5.725-5.85GHz) |
| PERFORMANCE AND CAPACITY |
| Peak PHY Rates |
• 2.4GHz: 574 Mbps
• 5GHz: 1200 Mbps |
| Client Capacity |
• Up to 512 clients per AP |
| SSID |
• Up to 31 per AP |
| RUCKUS RADIO MANAGEMENT |
| Antenna Optimization |
• BeamFlex+
• Polarization Diversity with Maximal Ratio Combining (PD-MRC) |
| Wi-Fi Channel Management |
• ChannelFly
• Background Scan Based |
| Client Density Management |
• Adaptive Band Balancing
• Client Load Balancing
• Airtime Fairness
• Airtime-based WLAN Prioritization |
| SmartCast Quality of Service |
• QoS-based scheduling
• Directed Multicast
• L2/L3/L4 ACLs |
| Mobility |
SmartRoam |
| Diagnostic Tools |
• Spectrum Analysis
• SpeedFlex |
| NETWORKING |
| Controller Platform Support |
• SmartZone
• ZoneDirector
• Unleashed
• Standalone |
| Mesh |
SmartMesh™ wireless meshing technology. Self-healing Mesh |
| IP |
IPv4, IPv6, dual-stack |
| VLAN |
• 802.1Q (1 per BSSID or dynamic per user based on RADIUS)
• VLAN Pooling
• Port-based |
| 802.1x |
Authenticator & Supplicant |
| Tunnel |
L2TP, GRE, Soft-GRE |
| Policy Management Tools |
• Application Recognition and Control
• Access Control Lists
• Device Fingerprinting
• Rate Limiting |
| IoT Capbale |
• Yes |
| PHYSICAL INTERFACES |

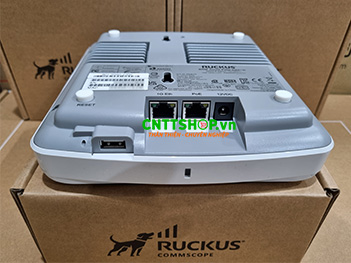

| Ethernet |
• 2 x 1GbE Ethernet ports
• Power over Ethernet (802.3af/at) with Category 5/5e/6 cable
• LLDP |
| USB |
• 1 USB 2.0 port, Type A |
| PHYSICAL CHARACTERISTICS |
| Physical Size |
• 17.60cm (L), 19.02cm (W), 4.78cm (H)
• 6.93in (L) x 7.49in (W) x 1.88in (H) |
| Weight |
• 0.562 kg
• 1.24 lbs |
| Mounting |
• Wall, Acoustic ceiling, Desk
• Secure Bracket (sold separately) |
| Physical Security |
• Hidden latching mechanism
• T-bar Torx
• Bracket (902-0120-0000) |
| Operating Temperature |
• 0ºC (32ºF) - 40ºC (104ºF) |
| Operating Humidity |
Up to 95%, non-condensing |
| POWER |
| 802.3af PoE |
- Operating Characteristics
- 2.4GHz radio: 2x2, 19dBm per chain
- 5GHz radio: 2x2, 18dBm per chain
- 2nd Ethernet port & USB disabled
- Max Power Consumption: 12.71W
|
| 802.3at PoE+ |
- Operating Characteristics
- Max Power Consumption: PoE+ : 18.71W
|
| DC Input 48VDC |
- Operating Characteristics
- Max Power Consumption: PoE+ : 16.58W
|
| CERTIFICATIONS AND COMPLIANCE |
| Wi-Fi Alliance |
• Wi-Fi CERTIFIED™ a, b, g, n, ac, ax
• Passpoint®, Vantage |
| Standards Compliance |
• EN 60950-1 Safety
• EN 60601-1-2 Medical
• EN 61000-4-2/3/5 Immunity
• EN 50121-1 Railway EMC
• EN 50121-4 Railway Immunity
• IEC 61373 Railway Shock & Vibration
• UL 2043 Plenum
• EN 62311 Human Safety/RF Exposure
• WEEE & RoHS
• ISTA 2A Transportation |
