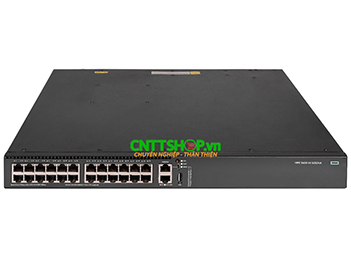

Switch HPE FlexNetwork 5600 HI S0S34A
| Part Number |
:
|
| List Price |
: $
|
| Giá bán |
:
|
| Bảo hành |
:
|
| Made In |
:
|
| Stock |
:
|
Thiết bị chuyển mạch HPE 5600 HI series S0S34A với 24x 100M/1G/2.5G/5G/10G MGig hỗ trợ UPoE+ (90W per port), 1x expansion slot, 2x power supply slots. Tốc độ chuyển mạch lên đến 640 Gbps.
Thông số kỹ thuật HPE S0S34A
| Datasheet HPE S0S34A | |
| Specifications | HPE 5600 HI 24P PoE8 MGig 1 Slot Sw (S0S34A) |
| I/O ports and slots | 24 x 100M/1G/2.5G/5G/10GBASE-T (PoE8) + 1 expansion slot |
| Power supplies | 2 power supply slots (1+1 dual hot pluggable) |
| Physical characteristics | |
| Dimensions | 440 x 460 x 43.6 mm (H x W x D) |
| Weight | 5.50kg (bare weight) |
| Memory and processor | 2 GB SDRAM; packet buffer size: 3 MB, 1G flash |
| Mounting and enclosure | Mounts in an EIA standard 19-inch telco rack or equipment cabinet (hardware included) |
| 1000 Mb Latency | < 5 μs |
| 10 Gbps Latency | < 3 μs |
| 40 Gbps Latency | < 1.2 μs |
| Throughput | 240 Mpps |
| Routing/Switching capacity | 640 Gbps |
| Static MAC table | 1K |
| VLAN table | 4K |
| MAC address table size | Max. 32K recommend 16K |
| Environment | |
| Operating temperature | 23°F to 113°F (–5°C to 45°C) |
| Operating relative humidity | 5% to 95%, noncondensing |
| Non-operating/storage temperature | –40°F to 158°F (–40°C to 70°C) |
| Non-operating/storage relative humidity |
5% to 95%, noncondensing |
| Acoustic | Low: 48.1 dB; High: 60.7 dB |
| Electrical characteristics | |
| Frequency | 50/60 Hz |
| Maximum heat dissipation | Ranges from 134 BTU/hour to 8137 BTU/hour depending on power supply configuration |
| Voltage | AC: 90 VAC to 264 VAC, DC: –36 VDC to 72 VDC |
| Maximum power rating | Dual AC 2385W |
| Idle power | 39.3W |
| PoE power per port | 90W |
