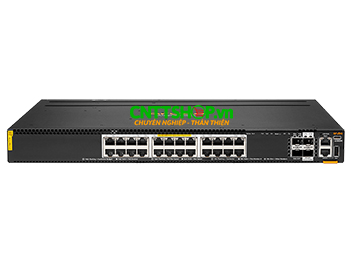

| Datasheet Aruba R8S89A |
| Description |
24x ports SmartRate 100M/1G/2.5G/5G/10G BaseT Class 6 PoE ports supporting up to 60W per port
2x 10G/25G/50G1 SFP ports 2x 10G/25G SFP ports (MACsec)
Supports PoE Standards IEEE 802.3af, 802.3at and 802.3bt (up to 60W) 1x USB-C Console Port
1x RJ Console Port 1x OOBM port
1x USB Type A Host port
1x Bluetooth dongle to be used with CX Mobile App |
| Power supplies |
2x field-replaceable, hotswappable power supply slots 1 minimum power supply required (ordered separately)
Supported PSUs JL086A JL087A JL670A JL758A Max PoE Power: 2880W |
| Fans |
Switch has two fan tray slots and comes with two fan trays installed.
Min 2 fan trays required.
Fan trays are field replaceable and hotswappable.
Each fan tray contains two fans. |
| Physical characteristics |
| Dimensions |
(H) 4.4 cm x (W) 44.2 cm x (D) 38.5 cm (1.73” x 17.4” x 15.2”) |
| Configuration Weight |
5.26 kg (11.60 lbs) |
| Additional Specifications |
| CPU |
Quad Core ARM Cortex™ A72 @ 1.8GHz |
| Memory and Flash |
8 GB DDR4 32 GB eMMC |
| Additional Specifications (continued) |
| Packet Buffer |
16 MB |
| Performance |
| System Switching Capacity |
880 Gbps |
| System Throughput Capacity |
660 Mpps |
| Model Switching Capacity |
880 Gbps |
| Model Throughput Capacity |
Model Throughput Capacity |
| Average Latency (LIFO-64bytes packets) |
1Gbps: 4.24μSec
10Gbps: 1.50μSec
25Gbps: 2.91μSec
50Gbps1: 3.49μSec |
| Stack Size |
10 members |
| Max Stacking Distance |
Up to 10 kms with long range transceivers |
| Stacking Bandwidth |
200 Gbps |
| Switched Virtual Interfaces (dual stack) |
1,024 |
| IPv4 Host Table (ARP) |
49,152 |
| IPv6 Host Table (ND) |
49,152 |
| IPv4 Unicast Routes |
61,000 |
| IPv6 Unicast Routes |
61,000 |
| IPv4 Multicast Routes |
8,192 |
| IPv6 Multicast Routes |
8,192 |
| MAC Table Capacity |
32,768 |
| IGMP Groups |
8,192 |
| MLD Groups |
8,192 |
| IPv4/IPv6/MAC ACL Entries (ingress |
20,480/5,120/20,480 |
| IPv4/IPv6/MAC ACL Entries (egress) |
8,192/2,048/8,192 |
| VRF |
256 |
| Operating Temperature |
32°F to 113°F (0°C to 45°C) up to 5,000 ft. Derate -1 degree C for every 1,000 ft from 5,000 ft to 10,000 ft. Can support excursion to 131°F (55°C) for short periods1 of time. |
| Operating Relative Humidity |
Operating Relative Humidity |
| Non-Operating |
40°F to 158°F (-40°C to 70°C) up to 15,000 ft |
| Non-Operating Storage Relative Humidity |
Non-Operating Storage Relative Humidity |
| Non-Operating Storage Relative Humidity |
Non-Operating Storage Relative Humidity |
| Max Non-Operating Altitude |
Max Non-Operating Altitude |
| Max Non-Operating Altitude |
Max Non-Operating Altitude |
| Max Non-Operating Altitude |
Max Non-Operating Altitude |
| Electrical Characteristics |
| Frequency |
Frequency |
| AC Voltage |
JL670A PSU: 110V-120V/208V-240V JL086A PSU: 100V-240V JL087A PSU: 110V-240V |
| Current (for voltages listed above) |
JL670A PSU: 11A/8A JL086A PSU: 8A/3.5A JL087A PSU: 12A/5A |
| Power Consumption (230VAC) |
With JL086A PSU: Hibernation (0 rpm fan): 37W Idle: 90W 100% Traffic Rate: 143W With JL087A PSU: Hibernation (0 rpm fan):41W Idle: 90W 100% Traffic Rate: 140W With JL670A PSU: Hibernation (0 rpm fan): 35W Idle: 101W 100% Traffic Rate: 152W |
| Safety |
| Mounting and Enclosure |
Mounts in an EIAstandard 19 in. telco rack or equipment cabinet. Horizontal surface mounting only. 2-post rack kit included. |
