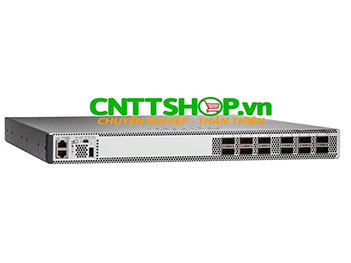

| Datasheet C9500-12Q-E |
| Performance specifications |
| ASIC |
UADP 2.0 |
| Switching capacity |
Up to 960 Gbps full duplex |
| Forwarding rate |
Up to 720 Mpps |
| Total number of MAC addresses |
Up to 64,000 |
| Total number of IPv4 routes (Address Resolution Protocol [ARP] plus learned routes) |
Up to 64,000 indirect
Up to 80,000 host
|
| Total number of IPv6 routes |
Up to 32,000 indirect
Up to 40,000 host
|
| Multicast scale |
Up to 32,000 (IPv4) Up to 16,000 (IPv6) |
| QoS ACL scale |
Up to 18000 |
| Security ACL scale |
Up to 18000 |
| FNF entries |
Up to 512,000 |
| DRAM |
16 GB |
| Flash |
16 GB |
| VLAN IDs |
4094 |
| Total Switched Virtual Interfaces (SVIs) |
1000 |
| Jumbo frame |
9198 bytes |
| Dimensions, physical specifications, weight, and MTBF |
| Dimensions (H x W x D) |
1.73 x 17.5 x 21.52 in |
| Rack Units (RU) |
1 RU |
| Chassis with 2 power supplies and built-In fan |
25.75 lb (11.68 kg) |
| Input voltage |
115 to 230 VAC |
| Operating temperature |
32° to 104°F (0° to 40°C) |
| Storage temperature |
-4° to 149°F (-20° to 65°C) |
| Relative humidity operating and nonoperating noncondensing |
Ambient (noncondensing) operating: 5% to 90%
Ambient (noncondensing) nonoperating and storage: 5% to 95%
|
| Altitude |
Operation up to 6000 feet at 55°C and 13,000 feet at 45°C |
| MTBF (hours) |
276,430 |
| Standards |
IEEE 802.1s
IEEE 802.1w
IEEE 802.1x
IEEE 802.3ae for 10G SKU
IEEE 802.3ae, IEEE 802.3ba on the 40G SKU
IEEE 802.1x-Rev
IEEE 802.3ad
IEEE 802.3x full duplex on 10BASE-T, 100BASE-TX, and 1000BASE-T ports
IEEE 802.1D Spanning Tree Protocol
IEEE 802.1p CoS prioritization
IEEE 802.1Q VLAN
IEEE 802.3 10BASE-T specification
IEEE 802.3u 100BASE-TX specification
IEEE 802.3ab 1000BASE-T specification
IEEE 802.3z 1000BASE-X specification
RMON I and II standards
SNMPv1, SNMPv2c, and SNMPv3
|
| Safety certifications |
- IEC 60950-1 plus Am1, Am2 Am9, Am10, Am11, Am12 and all deviations and differences
- AS/NZS 60950.1.2011
- CAN/CSA-C22.2 No. 60950-1-07
- GB 4943-95
- EN 60950-1; 2006 plus Am1, Am 2, Am9, Am10, Am11, Am12 and all deviations and differences
- NOM-019-SCFI-1998
- UL 60950-1, Second Edition |
| EMI and EMC compliance |
47 CFR Part 15 Class A
CNS13438: 2006 Class A
EN 300 386 V1.6.1
EN61000-3-2: 2014
EN61000-3-3: 2013
ICES-003 Issue 6: 2016 Class A
KN 32: 2015 Class A
TCVN 7189: 2009 Class A
EN 55032:2012/ AC:2013 Class A
EN 55032:2015 Class A
CISPR 32 Edition 2 Class A
V-2/2015.04 Class A
V-3/2015.04 Class A
CISPR24: 2010 + A1: 2015
EN 300 386 V1.6.1
EN55024: 2010 + A1: 2015
KN35: 2015
TCVN 7317: 2003
|
