Switch Cisco C9500-48X-A 48 Ports 10G, NW Adv. License

Switch Cisco C9500-48X-A Catalyst 9500 Series 40 Ports 10G switch, 8 x 10GE Network Module, Network Advantage License

✓ Mã sản phẩm: C9500-48X-A

✓ Tình trạng: Còn Hàng

C9500-48X-A Datasheet

Switch Cisco C9500-48X-A

Name: C9500-48X-A
Brand: CISCO
SKU: C9500-48X-A
Availability: InStock
Rating: 5 (12 reviews)

Cisco Part Number	:
List Price	: $
Giá bán	:
Bảo hành	:
Made In	:
Stock	:

Thiết bị chuyển mạch Cisco C9500-48X-A là thế hệ tiếp theo của bộ chuyển mạch lớp Core và lớp doanh nghiệp, hỗ trợ khả năng lập trình và khả năng phục vụ ưu việt. Dựa trên kiến trúc CPU x86, C9500-48X-A là nền tảng chuyển đổi doanh nghiệp cốt lõi và tổng hợp cố định được xây dựng trên nền tảng chuyên dụng của Cisco, được xây dựng để bảo mật, IoT và đám mây. Switch Cisco C9500-48X-A đi kèm với CPU 4 nhân x86, 2,4 GHz, bộ nhớ DDR4 16 GB và bộ nhớ trong 16 GB.

Switch Cisco C9500-48X-A hỗ trợ các công nghệ định tuyến và dịch vụ cơ sở hạ tầng mới nhất của Cisco (nưu Multiprotocol Label Switching [MPLS] Layer 2 và Layer 3 VPNs, Multicast VPN [MVPN], và Network Address Translation [NAT]); Cisco Software-Defined Access capabilities (như host tracking database, cross-domain connectivity, VPN Routing và Forwarding [VRF]-aware Locator/ID Separation Protocol [LISP]); hệ thống ảo hóa mạng với công nghệ ảo hóa Cisco StackWise®. Switch Cisco C9500-48X-A cũng hỗ trợ các khả năng có sẵn cao như patching, Graceful Insertion and Removal (GIR), Cisco Nonstop Forwarding with Stateful Switchover (NSF/SSO), nguồn và quạt có thể thay thế và dự phòng.

Switch Cisco C9500-48X-A 40 Ports 10G, 8 x 10GE Network Module, NW Adv. License

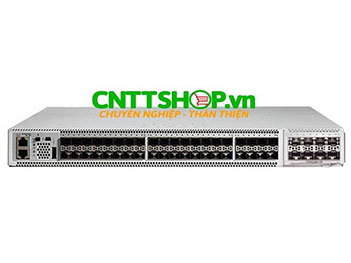

Hình ảnh: Switch Cisco C9500-48X-A

Thông số kỹ thuật Switch Cisco C9500-48X-A

Datasheet C9500-48X-A
Performance specifications
ASIC	UADP 2.0
Switching capacity	Up to 960 Gbps full duplex
Forwarding rate	Up to 720 Mpps
Total number of MAC addresses	Up to 64,000
Total number of IPv4 routes (Address Resolution Protocol [ARP] plus learned routes)	Up to 64,000 indirect Up to 80,000 host
Total number of IPv6 routes	Up to 32,000 indirect Up to 40,000 host
Multicast scale	Up to 32,000 (IPv4) Up to 16,000 (IPv6)
QoS ACL scale	Up to 18000
Security ACL scale	Up to 18000
FNF entries	Up to 512,000
DRAM	16 GB
Flash	16 GB
VLAN IDs	4094
Total Switched Virtual Interfaces (SVIs)	1000
Jumbo frame	9198 bytes
Dimensions, physical specifications, weight, and MTBF
Dimensions (H x W x D)	1.73 x 17.5 x 21.52 in
Rack Units (RU)	1 RU
Chassis with 2 power supplies and built-In fan	25.75 lb (11.68 kg)
Input voltage	115 to 230 VAC
Operating temperature	32° to 104°F (0° to 40°C)
Storage temperature	-4° to 149°F (-20° to 65°C)
Relative humidity operating and nonoperating noncondensing	Ambient (noncondensing) operating: 5% to 90% Ambient (noncondensing) nonoperating and storage: 5% to 95%
Altitude	Operation up to 6000 feet at 55°C and 13,000 feet at 45°C
MTBF (hours)	277,310
Standards	IEEE 802.1s IEEE 802.1w IEEE 802.1x IEEE 802.3ae for 10G SKU IEEE 802.3ae, IEEE 802.3ba on the 40G SKU IEEE 802.1x-Rev IEEE 802.3ad IEEE 802.3x full duplex on 10BASE-T, 100BASE-TX, and 1000BASE-T ports IEEE 802.1D Spanning Tree Protocol IEEE 802.1p CoS prioritization IEEE 802.1Q VLAN IEEE 802.3 10BASE-T specification IEEE 802.3u 100BASE-TX specification IEEE 802.3ab 1000BASE-T specification IEEE 802.3z 1000BASE-X specification RMON I and II standards SNMPv1, SNMPv2c, and SNMPv3
Safety certifications	- IEC 60950-1 plus Am1, Am2 Am9, Am10, Am11, Am12 and all deviations and differences - AS/NZS 60950.1.2011 - CAN/CSA-C22.2 No. 60950-1-07 - GB 4943-95 - EN 60950-1; 2006 plus Am1, Am 2, Am9, Am10, Am11, Am12 and all deviations and differences - NOM-019-SCFI-1998 - UL 60950-1, Second Edition
EMI and EMC compliance	47 CFR Part 15 Class A CNS13438: 2006 Class A EN 300 386 V1.6.1 EN61000-3-2: 2014 EN61000-3-3: 2013 ICES-003 Issue 6: 2016 Class A KN 32: 2015 Class A TCVN 7189: 2009 Class A EN 55032:2012/ AC:2013 Class A EN 55032:2015 Class A CISPR 32 Edition 2 Class A V-2/2015.04 Class A V-3/2015.04 Class A CISPR24: 2010 + A1: 2015 EN 300 386 V1.6.1 EN55024: 2010 + A1: 2015 KN35: 2015 TCVN 7317: 2003

Các tính năng trên Switch Cisco C9500-48X-A

Switch fundamentals	Layer 2, Routed Access (RIP, EIGRP Stub, OSPF - 1000 routes),PBR, PIM Stub Multicast (1000 routes)), PVLAN, VRRP, PBR, CDP, QoS, FHS, 802.1x, Macsec-128, CoPP, SXP, IP SLA Responder, SSO
Advanced switch capabilities and scale	BGP, EIGRP, HSRP, IS-IS, BSR, MSDP, PIM-BIDIR, IP SLA, OSPF
Network segmentation	VRF, VXLAN, LISP, SGT, MPLS, mVPN
Automation	Netconf, Restconf, gRPC, YANG, PnP Agent, ZTP/Open PnP, GuestShell (On-Box Python)
Telemetry and visibility	Model-driven telemetry, sampled NetFlow, SPAN, RSPAN
High availability and resiliency	NSF, GIR, ISSU/EFSU, StackWise Virtual
IOT integration	AVB, PTP, CoAP
Security	MACsec-256
Optimized network deployments	DNA Service for Bonjour
Advanced telemetry and visibility	Full Flexible NetFlow, EEM
Optimized telemetry a visibility	ERSPAN, AVC (NBAR2), App Hosting (in Containers/VMs), Wireshark
Advanced security	Encrypted Traffic Analytics (ETA)
Element management	Patch Management
SD-Access	Policy-based Automation & Assurance for Wired & Wireless
Day 0 network bring-up automation	Cisco Network Plug-n-Play application, network settings, device credentials, LAN Automation, Host onboarding
Element management	Discovery, inventory, topology, software image, licensing, and configuration management
Basic Assurance	Health Dashboards – Network, Client, Application; Switch & Wired Client Health Monitoring
Network assurance and analytics	Global Insights, Trends, Compliance, Custom Reports; Switch 360, Wired Client 360; Fabric and Non-Fabric Insights; App Health, App 360, App Performance (Loss, Latency, Jitter)
