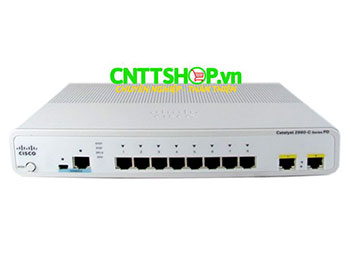

Switch Cisco WS-C2960CPD-8TT-L 2960CPD 8 Port FE, 2 x 1G, PoE+ LAN Base

Performance

Forwarding Bandwidth

10 Gbps

Flash memory

64 MB

Memory DRAM

128 MB

Max VLANs

255^*

VLAN IDs

4000

Maximum transmission unit (MTU)

Up to 9000 bytes

Jumbo frames

9018 bytes

Forwarding rate 64 Byte Packet Cisco Catalyst

WS-C2960CPD-8TT-L

4.2 mpps

Connectors and cabling

Cisco Catalyst 3560-C and 2960-C with SFP-based ports:

- 10BASE-T ports: RJ-45 connectors, 2-pair Category 3, 4, or 5 unshielded twisted-pair (UTP) cabling

- 100BASE-TX ports: RJ-45 connectors, 2-pair Category 5 UTP cabling

- 1000BASE-T ports: RJ-45 connectors, 4-pair Category 5 UTP cabling

- 1000BASE-T SFP-based ports: RJ-45 connectors, 4-pair Category 5 UTP cabling

- 1000BASE-SX -LX/LH, -ZX, -BX, -T^*, -FX^*, and CWDM SFP-based ports: LC fiber connectors (single/multimode fiber)

- 100BASE-LX, -BX, -FX: SFP-based ports: LC fiber connectors (single/multimode fiber)

^*GLC-T and GLC-GE-100FX are not supported

Power connectors

N/A

- Per-port status: Link integrity, disabled, activity, speed, full-duplex

- System status: System, RPS, link status, link duplex, link speed

Dimensions
(H x W x D)

C2960C

Inches

Centimeters

WS-C2960CPD-8TT-L

1.75x10.6x6.8

4.44x26.9x17.2

Weight

Cisco Catalyst

Pounds

Kilograms

WS-C2960CPD-8TT-L

2.4

1.08

Environmental ranges

Cisco Catalyst C2960C

Operating^* temperature up to 5000 ft (1524 m)

-5°C to +45°C^**

+23°F to +113°F

Operating^* temperature up to 10,000 ft (3048 m)

-5°C to +45°C

+23°F to +113°F

Storage temperature up to 15,000 ft (4572 m)

-25°C to +70°C

-13°F to +158°F

Operating altitude

Up to 3048 m

Up to 10,000 ft

Storage altitude

Up to 4000 m

Up to 15,000 ft

Operating relative humidity

5% to 95% noncondensing

Storage relative humidity

5% to 95% noncondensing

Mean time between failure (MTBF)

Cisco Catalyst C2960C

MTBF

WS-C2960CPD-8TT-L

471,888

Part Number

Description

CMP-CBLE-GRD=

Cable guard for the 3560-C and 2960-C compact switches

CMP-MGNT-TRAY =

Magnet and Mounting Tray for 3560-C and 2960-C compact switches

PWR-ADPT=

Power Adapter for the 3560-C and 2960-C compact switches

PWR-CLP

Power Clip for the 3560-C and 2960-C compact switches

CMP-DIN-MNT=

DIN Rail Mount for 3560-C and 2960-C compact switches

RCKMNT-19-CMPCT=

19-Inch Rack Mounting Brackets

RCKMNT-23-CMPCT=

23- and 24-Inch Rack Mounting Brackets
