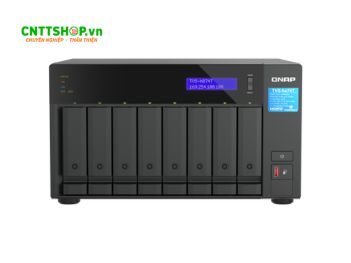

TVS-h874T-i7-32G Datasheet
|
|
CPU
|
Intel® Core™ i7 12-core (8P+4E) /20-thread Processor
|
|
CPU Architecture
|
64-bit x86
|
|
Graphic Processors
|
Intel® UHD Graphics 770
|
|
Floating Point Unit
|
Yes
|
|
Encryption Engine
|
Yes (AES-NI)
|
|
Hardware-accelerated Transcoding
|
Yes
|
|
System Memory
|
32GB SODIMM DDR4 (2 x 16GB)
|
|
Maximum Memory
|
64 GB (2 x 32 GB)
|
|
Memory Slot
|
2 x SODIMM DDR4
|
|
Flash Memory
|
5GB (Dual boot OS protection)
|
|
Drive Bay
|
8 x 3.5-inch SATA 6Gb/s, 3Gb/s
|
|
Drive Compatibility
|
3.5-inch bays:
- 3.5-inch SATA hard disk drives
- 2.5-inch SATA solid state drives
|
|
Hot-swappable
|
Yes
|
|
M.2 Slot
|
2 x M.2 2280 PCIe Gen 4 x4 slots
|
|
SSD Cache Acceleration Support
|
Yes
|
|
GPU pass-through
|
Yes
|
|
2.5 Gigabit Ethernet Port (2.5G/1G/100M)
|
2 (2.5G/1G/100M/10M)
|
|
5 Gigabit Ethernet Port (5G/2.5G/1G/100M)
|
Optional via PCIe expansion card
|
|
10 Gigabit Ethernet Port
|
|
Wake on LAN (WOL)
|
Yes
|
|
Jumbo Frame
|
Yes
|
|
Thunderbolt Port
|
2 (Thunderbolt™ 4)
Supports only Thunderbolt connections for Windows & Mac hosts and USB storage devices. Third-party Thunderbolt external storage devices are not supported.
|
|
PCIe Slot
|
2 (Slot 1: PCIe Gen 4 x16, Slot 2: PCIe Gen 4 x4)
|
|
USB 3.2 Gen 2 (10Gbps) Port
|
1 x Type-C USB 3.2 Gen 2 10Gbps
2 x Type-A USB 3.2 Gen 2 10Gbps
|
|
HDMI™ Output
|
1, HDMI™ 1.4b (up to 4096 x 2160 @ 30Hz)
|
|
Form Factor
|
Tower
|
|
LED Indicators
|
HDD 1-8, Status, LAN, USB port, M.2 port
|
|
LCD Display/ Button
|
Yes
|
|
Buttons
|
Power, Reset, USB Copy
|
|
Dimensions (HxWxD)
|
180.2 × 329.3 × 279.6 mm
Dimensions do not include foot pad (foot pad may be up to 30mm / 1.18 inches high depending on model)
|
|
Weight (Net)
|
7.34 kg
|
|
Weight (Gross)
|
8.99 kg
|
|
Operating Temperature
|
0 - 40 °C (32°F - 104°F)
|
|
Storage Temperature
|
-20 - 70°C (-4°F - 158°F)
|
|
Relative Humidity
|
5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F)
|
|
Power Supply Unit
|
350W (PWR-PSU-350W-DT01), 100-240V
|
|
Power Consumption: HDD Sleep Mode
|
62.668 W
|
|
Power Consumption: Operating Mode, Typical
|
104.35 W
Tested fully populated with WD10EFRX hard drives.
|
|
Fan
|
System fan: 2 x 120mm, 12VDC
|
| |
CPU fan: 1 x 60mm, 12VDC
|
|
System Warning
|
Buzzer
|
|
Kensington Security Slot
|
Yes
|
|
Max. Number of Concurrent Connections (CIFS) - with Max. Memory
|
3500
|
