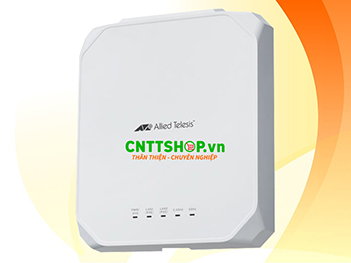

| Datasheet AT-TQ6702 GEN2 |
| Specifications |
| 10/100/1000T (RJ-45) copper ports |
2 (1 PoE-in port) |
| Embedded Antennas |
Omni-directional:
Frequency band: 2.4 GHz
Max. peak gain: TBD dBi
Supports Channel Blanket2
Frequency band: 5GHz
Max. peak gain: TBD dBi
Supports Channel Blanket2 |
| MIMO, Streams |
2.4GHz: 4x4 MU-MIMO
5GHz: 8x8 MU-MIMO |
| Performance |
| Speed |
Up to 3.55 Gigabits |
| Feature |
| Wireless |
- Multi-channel, single-channel, or hybrid operation
- OFDMA
- Bi-directional Multi-user MIMO
- Spatial Reuse
- Airtime fairness
- Automatic channel selection
- Automatic control of transmission power
- Band Steering
- Fast roaming
- RF load balancing
- Wireless Distribution System (WDS)
- Wi-Fi Multimedia (WMM) for traffic prioritization
- Deploy with no data cables using AWC-SC |
| Operational Modes |
- Centrally managed in multi-channel mode by Vista Manager EX (up to 3,000 APs)
- Centrally managed in single-channel2 or hybrid mode (multi-channel and single-channel) by Vista Manager EX
- Centrally managed in multi-channel mode by Vista Manager Network Appliance (VST-APL) (up to 500 APs)
- Centrally managed in single-channel2 or hybrid mode (multi-channel and single-channel) by Vista Manager Network Appliance (VST-APL)
- Centrally managed in multi-channel mode by Vista Manager mini (up to 305 APs)
- Centrally managed in single-channel2 or hybrid mode (multi-channel and single-channel) by Vista Manager mini
- Standalone (up to 500 clients) |
| Management |
- Graphical User Interface (HTTP/HTTPS)
- Simple Network Management Protocol (SNMPv1, v2c, v3)
- Firmware upgrade
- Backup/restore settings
- Syslog notification
- DHCP client
- NTP client |
| Security |
Authentication and Accounting
- IEEE 802.1X Authentication and Accounting
- IEEE 802.1X RADIUS support
- Shared Key Authentication
- WPA (Enterprise, Personal)
- WPA2 (Enterprise, Personal)
- WPA3 (Enterprise, Personal)
- Captive Portal (External RADIUS, Click-Through
Encryption
- WEP: 64/128 bit (IEEE 802.11a/b/g only)
- WPA/WPA2: CCMP (AES), TKIP
- WPA3: CCMP (AES/CNSA)
- MAC address filtering (Up to 1024 MAC address)
- SSID hiding/ignoring
- Client isolation
- Neighbor AP detection
- Kensington lock
|
| Power Characteristics |
| Power Supply |
100-240VAC
Support PoE-In |
| Average Power Consumption |
19W |
| Maximum Power Consumption |
24W |
| Max Heat Dissipation |
81.84 BTHu |
| Environmental Specifications |
| Operating temperature range |
0°C to 50°C (32°F to 122°F) |
| Storage temperature range |
-25°C to 70°C (-13°F to 158°F) |
| Operating relative humidity range |
5% to 90% non-condensing |
| Storage relative humidity range |
5% to 95% non-condensing |
| Radio Characteristics |
| Supported Frequencies |
- 2.412 ~ 2.472 GHz
- 5.150 ~ 5.250 GHz
- 5.250 ~ 5.350 GHz
- 5.500 ~ 5.720 GHz
- 5.745 ~ 5.825 GHz |
| Modulation Technique |
- 802.11a/g/n/ac: OFDM
- 802.11 ax: OFDMA
- 802.11b: DSSS, CCK, DQPSK, DBPSK
- 802.11ac: BPSK, QPSK, 16QAM, 64QAM, 256QAM
- 802.11a/g/n: BPSK, QPSK, 16QAM, 64QAM, 256QAM
- 802.11 ax: BPSK, QPSK, 16QAM, 64QAM,256QAM,1024QAM |
| Data Rate |
- IEEE802.11b 11/5.5/2./1Mbps
- IEEE802.11a/g 54/48/36/24/18/12/9/6Mbps
- IEEE802.11g/n 6.5-600Mbps (MCS0-31)
- IEEE802.11g/n 6.5-800Mbps (MCS0-31)
- IEEE802.11a/ac 6.5-1733.3Mbps (MCS0-9)
- IEEE802.11a/ax 6.5-2401.9Mbps (MCS0-11) |
| Media Access |
- CSMA/CA + Ack with RTS/CTS |
| Diversity |
- Spatial diversity |
| Physical Specifications |
| Dimensions (W x D x H) |
200 x 240 x 45 mm (7.88 x 9.45 x 1.78 in) |
| Weight |
1.2 kg (2.64 lb) |
