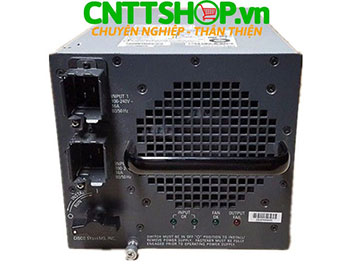

Cisco WS-CAC-6000W= Catalyst 6500 Series 6000W AC Power Supply Spare
Cisco Part Number : WS-CAC-6000W
Cisco Spare Part Number : WS-CAC-6000W=
Bảo hành : 12 tháng
List Price : $5,000
Giá Bán : Liên hệ
Made In : Asia
Stock : Liên hệ
| View Datasheet WS-CAC-6000W= |
Thông số kỹ thuật
|
Product Specifications |
|
|
Input-voltage range and frequency |
100-240 VAC, 47-63 Hz
|
|
Input current (each input) |
16A
|
|
Input-frequency range, output power |
6000W if both inputs are 220 VAC
2900W if both inputs are active but at least 1 is at 110 VAC or a single input is active and at 220 VAC
|
|
Output holdup time |
20 ms minimum
|
|
Power-supply input receptacles |
IEC 320-C19
|
|
Power cord rating |
16A
|
|
Chassis Compatibility |
Cisco Catalyst 6506, Catalyst 6506-E, Catalyst 6509, Catalyst 6509-E, Catalyst 6509-NEB, Catalyst 6509-NEB-A, Catalyst 6513, Cisco OSR-7609, 7609, and 7613 chassis
|
|
Fan Tray Required |
High-speed fan
|
|
Software Compatibility |
Cisco IOS ® Software Release:
• 12.2(18)SXD and later • 12.1E: not supported Cisco Catalyst OS:
• 8.4(1) |
|
Physical Specifications |
(H x W x D): 7 x 8 x 13.5 (in.)
Weight: 29 lb (13 kg)
|
|
BTU |
~ 24,000 BTUs per hour (at 6 kW)
~ 11,600 BTUs per hour (at 2.9 kW)
|
|
Environmental Conditions |
Operating temperature: 32 to 104°F (0 to 40°C)
Storage temperature: -40 to 158 °F (-40C to 70°C)
Relative humidity operating, non condensing: 10% to 95%
Relative humidity nonoperating, noncondensing: 10% to 95%
MTBF: calculated 150,000 hr (MIL-217 and Bellcore TR-NWT-000332), demonstrated 300,000 hr
|
|
EMI and EMC Compliance |
FCC Part 15 (CFR 47) Class A
ICES-003 Class A
EN 55022 Class A
CISPR 22 Class A
AS/NZS 3548 Class A
VCCI Class A
EN 55024
EN300 386
EN 50082-1
EN 61000-3-2
EN 61000-3-3
EN 61000-6-1
|
|
Safety Compliance |
UL 60950
CAN/CSA-C22.2 NO. 60950
EN 60950
IEC 60950
|
|
LED Indicators |
2 green "INPUT OK," illuminate when input voltage is 85 VAC or greater
1 green "FAN OK," illuminates when the power supply fan is operating
1 red "OUTPUT FAIL," normally is off but illuminates when power supply outputs are out of regulation limits
|
