| Datasheet Cambium X7-35X |
| Models |
X7-35X |
| Mã sản phẩm |
X7-35X-0A00-RW |
| X7-35X |

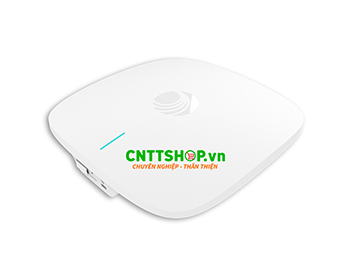

Wi-Fi 7 Indoor Access Point 802.11be Tri-Radio 2+2+2 Access Point with BLE/Zigbee |
| Access Point Specifications |
| Radios |
2.4 GHz 2x2:2 with 802.11 b/g/n/ax/be
5 GHz 2x2:2 with 802.11 a/n/ac/ax/be
6 GHz 2x2:2 with 802.11 ax/be |
| BLE and Zigbee |
Built-in BLE or 802.15.4 radio
Max Transmit power 20 dBm with the integrated 5 dBi omnidirectional antenna gain
*Matter and Thread support (*Will be supported in future releases) |
| Supported data rates |
802.11be: 7.3 to 5765 Mbps
802.11ax: 7.3 to 2402 Mbps
802.11ac: 6.5 to 1733 Mbps
802.11n: 6.5 to 300 Mbps
802.11a/g and a: 6 to 54 Mbps
802.11b: 1 to 11 Mbps |
| Max PHY Rate |
2.4 GHz: 574 Mbps
5 GHz: 2882 Mbps
6 GHz: 5765 Mbps |
| Antenna |
Omnidirectional internal antennas (Peak gain)
2.4 GHz: 5 dBi
5 GHz: 6 dBi
6 GHz: 6 dBi
BLE and Zigbee: 5 dBi |
| Maximum Radio Tx Power* (combined Tx power across all Tx chains) |
2.4 GHz: 24 dBm, max EIRP: 29 dBm
5 GHz: 25 dBm, max EIRP: 31 dBm
6 GHz: 25 dBm, max EIRP: 31 dBm |
| MIMO Support |
2x2 (2.4 GHz, 5 GHz, and 6 GHz) SU-MIMO
2x2 (2.4 GHz, 5 GHz, and 6 GHz) MU-MIMO both in UL and DL direction |
| USB Interface |
1x USB 2.0 type A port, max 1.5 W power supply |
| Ethernet Interface |
1x 100 Mbps/ 1 Gbps / 2.5 Gbps PoE port |
| Power |
Max power consumption 25.5W (802.3at)
Typical power consumption with BLE / 802.15.4 radio enabled: 10.6W
LLDP power negotiation support |
| Dimensions |
209.6 mm x 209.6 mm x 45 mm
8.25 in x 8.25 in x 1.77 in |
| Weight |
Weight: 935 gm (2.06 lb) |
| Mount Options |
Drop ceiling T-bar, ceiling tile, 4" square electrical box, 4" round box, NA single gang box, EU single gang box, wall
mount |
| Physical Security |
Kensington lock slot |
| LEDs |
Multicolor status LED
Blue: Managed from cnMaestro
Green: Up and running, not managed from cnMaestro
Amber: Booting |
| Ambient Operation Temperature |
0ºC - + 50ºC |
| Storage Temperature |
95% RH non-condensing |
| Reliability |
MTBF 8,29,316 hours at +25ºC operating temperature |
| Device Management |
cnMaestro Cloud / On-Premises management (version 5.1 and above)
Standalone operation mode
Web access with HTTPs / HTTP protocol
CLI access with SSH / telnet protocols |
| Certifications (Compliance) |
FCC, IC, CE
E 60601-1-2
EN 60950-1
IEC 62368-1 Safety
EN 60601-1-2 Medical
EMC
EN 61000-4-2/3/5 Immunity
UL 2043 Plenum
EN 62311 Human Safety/RF Exposure
WEEE
REACH and RoHS
*Wi-Fi certified a, b, g, n, ac, ax, be; WMM; spectrum and
regulatory; Wi-Fi agile multiband; PMF; WAP2 and
WPA3 PSK personal and enterprise |
| Network Specifications |
| Security & Authentication |
Open, WPA, WPA2-PSK AES WPA2-ePSK / WPA2-Enterprise
WPA3-PSK (WPA3-SAE) / WPA3-ePSK / Enterprise / Enterprise-CNSA / OWE (Enhanced Open)
OSEN and PMF (802.11 W)
MAC authentication with local database or external database using RADIUS protocol
EAP-TLS / TTLS / PEAP / SIM / AKA
Hotspot WEB authentication |
| Fast Roaming Support |
PMK, OKC, and 802.11r for fast layer 2 roaming
Seamless L2 roaming for wireless and guest clients across APs in the same L2 network
cnMaestro-assisted roaming for the guest clients |
| Wi-Fi Quality of Service |
WMM (packet marking either with 802.1p or IP DSCP), WMM-PS, U-APSD
Multicast to unicast conversion |
| MESH Support |
Auto-discovery and self-healing Wireless MESH support on 2.4 GHz, 5 GHz, and 6 GHz band
MESH and Client SSIDs can co-exist on the same radio interface |
| SSID |
16 SSIDs per radio, 48 SSIDs per AP
SSID scheduling |
| Client Capacity |
256 clients per radio, 768 clients per AP
Max client connections limit per SSID / radio / device |
| Band Steering |
Yes |
| Sticky Client Management |
Option to disconnect the client on minimum SNR threshold |
| Rate Limit |
Per SSID / MAC |
| Dynamic RF Channel and Power Management |
Auto-Channel selection
Auto-RF dynamic channel switch based on channel utilization and Wi-Fi / non-Wi-Fi interferences
Auto-RF dynamic power adjustment with the neighboring APs transmit power |
| WIDS and WIPS |
Wireless packets flood (excessive association, authentication, de-authentication, disassociation, and EAP) detection
Rogue AP, Honeypot AP detection and termination |
| Wireless Users Policy Management |
Standard Radius, Accounting, WISPr, and Cambium VSA attributes support
COA Messages (disconnect, VLAN ID, session, etc.) support
User groups with RADIUS assigned filter rules |
| Wireless Devices Policy Management |
Device grouping based on device fingerprinting with L2, L3, L4, and L7 access control rules |
| Radius and Accounting Support |
Per SSID based RADIUS and accounting server
Accounting interval with start, stop, and interim messages with standard / Cambium VSA accounting attributes
Up to 3 RADIUS and accounting server with failover and load balancing option
Dynamic authorization and disconnect using COA messages |
| VLAN Assignment |
Per SSID based 802.1q VLAN tagging
Dynamic VLAN assignment from external RADIUS server
Local VLAN pool
Radius assigned VLAN pool
ePSK assigned VLAN ID |
| ACL and Application Control Rules |
Per SSID or device level, layer 2, 3 (IPv4 and IPv6), 4 and 7 access control rules with packet marking option
Application recognition, packet marking, rate limiting, and option to drop and deny application / application category
Per SSID DNS ACL option
Define custom application based on IP address and monitor/control custom application traffic |
| Connection Logging |
Per SSID basis option to log TCP, UDP and IP connection, and DNS query
NAT logging to external syslog servers |
| IP Support |
IPv4 and IPv6 |
| Tunneling Protocols |
WWAN, PPPoE, L2TPv2, L2GRE, & *VXLAN (*Will be supported in future releases) |
| SNMP and Syslogs Support |
SNMP v2 and v3 get operational mode
Syslog messages to external syslog server |
| DHCP Client and Server |
Option to enable DHCP client on L3 VLAN interface
On-board DHCP server with multiple DHCP pool options |
| Analytics and location Service |
Option to integrate Wi-Fi and BLE radios scan results with an external location analytics server through HTTP/HTTPs post |
| Client Connection and Life Cycle Analytics (available with cnMaestro X Cloud) |
Exhaustive client life cycle analytics with root cause analysis Connection success and failure analytics
Disconnection analytics Client dashboard with roaming history
|
| Guest Access Service (EasyPass) (X Features are available on cnMaestro X) |
cnMaestro hosted captive portal service Multiple authentication methods supported to on board guest user
• Radius based authentication
• Click through with simple terms and conditions
acceptance
• Social login using Google®, Facebook®,
Twitter® (aka, X), and Office 365®
• SMS based authentication (X)
• Voucher based access
• Microsoft® Azure AD and Google
Workspace® (X)
• Sponsored guest access (X)
• Self-registration access (X)
Guest access on-boarding using payment gateway vendors (X)
• PayPal®
• IPpay
• Quickpay
• Orange
• Orange MoneySM
• mPesa
Integration with the third-party captive portal vendors
appliance
On-board captive portal service
IP whitelist or walled garden list support
Option to limit guest users’ session, data quota limit,
speed limits supported using Radius, WISPr, Cambium
VSA and cnMaestro-hosted guest portal policy
|
| Services |
L2–L7 application visibility & control, Wi-Fi calling control, WIDS/WIPS, NTP, Syslog, SNMP traps, DNS proxy, auto-off
on WAN failure, Open roaming (Will be supported in future releases) |
| API |
RESTful management and statistics API presence location APIs |
| Standards |
| Wi-Fi Protocols |
802.11 b: BPSK, QPSK, CCK
802.11 a/g/n: BPSK, QPSK, 16-QAM, 64-QAM
802.11 ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM
802.11 ax: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM and 1024-QAM
802.11be: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM, 4096-QAM
20/40/80/160/320 MHz, DSSS, OFDM, OFDMA, MIMO, MU-MIMO
Multi-link operation (MLO), Multi Resource Units
Target Wait Time (TWT), BSS Coloring,
Transmit beamforming (TxBF)
802.11n/ac packet aggregation: A-MPDU, A-MSDU
Maximum ratio combining (MRC), Cyclic delay/shift diversity (CDD/CSD),
Space-time block coding (STBC), Low-density parity check (LDPC)
Passpoint 3.0
IEEE 802.11 b/g/n/ac/ax/be/d/h/i/k/r/u/w |
| Regulatory Information |
| Frequency Bands |
2.412 to 2.484 GHz ISM
5.150 to 5.250 GHz U-NII-1
5.250 to 5.350 GHz U-NII-2A
5.470 to 5.725 GHz U-NII-2C
5.725 to 5.850 GHz U-NII-3
5.925 to 6.425 GHz U-NII-5
6.425 to 6.525 GHz U-NII-6
6.525 to 6.875 GHz U-NII-7
6.875 to 7.125 GHz U-NII-8 |
| Channels List |
2.4 GHz channels: 1 to 13
5 GHz channels: 36 to 64, 100 to 144 and 149 to 165
6 GHz channels: 1 to 233 |
