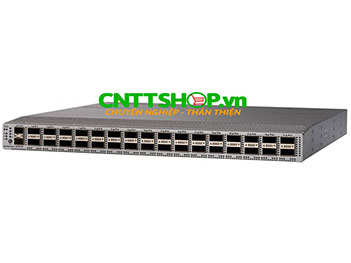

N3K-C3132C-Z Cisco Nexus 3132C-Z switch with 32 QSFP28

Cisco Nexus N3K-C3132C-Z 3132C-Z switch with 32 Ports QSFP28
Mã sản phẩm: N3K-C3132C-Z
Tình trạng: Còn hàng
Check Giá List

Cisco Nexus N3K-C3132C-Z 3132C-Z switch with 32 Ports QSFP28

Cisco Part Number        : N3K-C3132C-Z
List Price                       : $

Bảo hành                       : 12 tháng
Made In                         : Asia
Stock                             : Liên hệ

Thiết bị chuyển mạch Cisco Nexus N3K-C3132C-Z là danh mục đầu tư toàn diện gồm các bộ chuyển mạch Ethernet 1G, 10G, 40G và 100 Gigabit được xây dựng từ kiến ​​trúc Switch-on-a-Chip (SoC). Được giới thiệu vào tháng 4 năm 2011, Cisco Nexus N3K-C3132C-Z cung cấp hiệu suất Lớp 2 và 3 tốc độ dòng và phù hợp với kiến ​​trúc Top-of-Rack (ToR).

View Datasheet N3K-C3132C-Z

Switch Cisco Nexus N3K-C3132C-Z được thiết kế với các cổng Quad Small Form-Factor Pluggable (QSFP), với 32 cổng QSFP28, mỗi cổng QSFP28 có thể hoạt động 10G, 25G, 40G, 50G, và 100 Gbps, tối đa 128 x 25-Gbps ports.

Cisco Nexus N3K-C3132C-Z 3132C-Z switch with 32 Ports QSFP28

Thông số kỹ thuật Switch Cisco Nexus N3K-C3132C-Z

Product specifications
Physical
-  32 fixed 100 Gigabit Ethernet QSFP28 ports
-  Beacon LED
-  Environment LED
-  Status LED
-  Lane-selected LED
-  Dual redundant power supplies
-  Redundant (3+1) fans
-  Two 10-Gbps SFP ports (port 33 and port 34 in front)
-  One RJ-45 console port
-  One RJ45 and one SFP management port
-  One USB port
Performance 6.4Tbps switching capacity
Typical operating power 312W
Maximum power 493W
Typical heat dissipation 1064 BTUs/hr
Maximum heat dissipation 1682 BTUs/hr
Hardware tables and scalability
Number of MAC addresses 32,000 min 288,000 max
Number of IPv4/IPv6 unicast routes 24,000
Number of IPv4/IPv6 hosts 16K min/168K max
Number of IPv4 multicast routes 8000
Number of VLANS 4096
Number of ACL entries 4096
Number of spanning-tree instances

Rapid Spanning Tree Protocol (RSTP): 512

Multiple Spanning Tree (MST) Protocol: 64

Number of EtherChannels

24

Number of ports per EtherChannel

24

Buffer size

32 MB

Boot flash memory

128 GB

Power
Number of power supplies 2 (redundant)
Power supply types AC (forward and reversed airflow)
Input voltage 100 to 240 VAC
Frequency 50 to 60 Hz
Power supply efficiency 89 to 91% at 220V
Cooling

Forward and reversed airflow schemes

-  Forward airflow: port-side exhaust (air enters through fan tray and power supplies and exits through ports)
-  Reversed airflow: port-side intake (air enters through ports and exits through fan tray and power supplies)

Four individual, hot-swappable fans (3+1 redundant)

Environment
Dimensions (height x width x depth) 17.3W x 1.72H x 18.5D” (43.9 x 4.36 x 46.99cm)
Weight

19.2 lb. with PSU and fan

13.8 lb. without PSU and fan

Operating temperature

32 to 104° F (0 to 40°C)

Storage temperature

-40 to 158° F (-40 to 70°C)

Relative humidity: storage

5 to 95% non-condensing

Relative humidity: operating
-  10 to 85% noncondensing
-  Up to 5 days at maximum (85%) humidity
-  Recommend ASHRAE data center environment
Altitude (operating and nonoperating)

0 ft. to 10,000 ft.

Safety and EMC
Regulatory compliance Products should comply with CE Markings per directives 2004/108/EC and 2006/95/EC
Safety
-  UL 60950-1 Second Edition
-  CAN/CSA-C22.2 No. 60950-1 Second Edition
-  EN 60950-1 Second Edition
-  IEC 60950-1 Second Edition
-  AS/NZS 60950-1
-  GB4943
EMC: Emissions
-  47CFR Part 15 (CFR 47) Class A
-  AS/NZS CISPR22 Class A
-  CISPR22 Class A
-  EN55022 Class A
-  ICES003 Class A
-  VCCI Class A
-  EN61000-3-2
-  EN61000-3-3
-  KN22 Class A
-  CNS13438 Class A
EMC: Immunity
-  EN55024
-  CISPR24
-  EN300386
-  KN24
RoHS
RoHS 5 compliant except for lead press-fit connectors

Các tính năng trên Switch Cisco N3K-C3132C-Z

Description

Specifications

Layer 2

-  Layer 2 switch ports and VLAN trunks
-  IEEE 802.1Q VLAN encapsulation
-  Support for up to 4096 VLANs
-  Rapid Per-VLAN Spanning Tree Plus (PVRST+) (IEEE 802.1w compatible)
-  MSTP (IEEE 802.1s): 64 instances
-  Spanning Tree PortFast
-  Spanning Tree Root Guard
-  Spanning Tree Bridge Assurance
-  Cisco EtherChannel technology (up to 24 ports per EtherChannel)
-  LACP: IEEE 802.3ad, IEEE 802.1ax
-  Advanced port-channel hashing based on Layer 2, 3, and 4 information
-  Jumbo frames on all ports (up to 9216 bytes)
-  Link-level flow control (IEEE 802.3x)
-  vPC1

Layer 3

-  Layer 3 interfaces: routed ports on interfaces, switch virtual interfaces (SVIs), port channels, and subinterfaces (total: 1024)
-  24-way ECMP
-  4096 ACL entries
-  Routing protocols: static, RIPv2, EIGRP, OSPF, and BGP
-  HSRP and VRRP
-  ACL: routed ACL with Layer 3 and 4 options to match ingress and egress ACLs
-  VRF: VRF-Lite (IP VPN), VRF-aware unicast (BGP, OSPF, and RIP), and VRF-aware multicast
-  VRF route leaking
-  Jumbo frame support (up to 9216 bytes)

Multicast

-  Multicast: PIMv2, PIM-SM, SSM, and BiDir
-  Bootstrap router (BSR), Auto-RP, and Static RP
-  Internet Group Management Protocol (IGMP) Versions 2 and 3

Security

-  Ingress ACLs (standard and extended) on Ethernet
-  Standard and extended Layer 3 to 4 ACLs include IPv4, Internet Control Message Protocol (ICMP), TCP, and User Datagram Protocol (UDP)
-  VLAN-based ACLs (VACLs)
-  Port-based ACLs (PACLs)
-  ACLs on virtual terminals (VTYs)
-  Dynamic Host Configuration Protocol (DHCP) relay
-  CoPP

Cisco Nexus Data Broker

-  Topology support for tap and SPAN aggregation
-  Traffic load balancing to multiple monitoring tools
-  Packet truncation
-  Traffic filtering based on Layer 1 through Layer 4 header information
-  Traffic replication and forwarding to multiple monitoring tools
-  Robust RBAC
-  Northbound Representational State Transfer (REST) API for all programmability support

Management

-  POAP
-  Python scripting
-  Switch management using 10/100/1000-Mbps management or console ports
-  CLI-based console to provide detailed out-of-band management
-  In-band switch management
-  Locator and beacon LEDs
-  Configuration rollback
-  SSHv2
-  Telnet
-  AAA
-  AAA with RBAC
-  RADIUS
-  TACACS+
-  Syslog
-  Embedded packet analyzer
-  SNMP v1, v2, and v3
-  Enhanced SNMP MIB support
-  XML (NETCONF) support
-  Remote monitoring (RMON)
-  Advanced Encryption Standard (AES) for management traffic
-  Unified username and passwords across CLI and SNMP
-  Microsoft Challenge Handshake Authentication Protocol (MS-CHAP)
-  Digital certificates for management between switch and RADIUS server
-  Cisco Discovery Protocol Versions 1 and 2
-  RBAC
-  SPAN on physical, port channel, and VLAN
-  ERSPAN Versions 2 and 3
-  Ingress and egress packet counters per interface
-  Network Time Protocol (NTP)
-  Cisco OHMS
-  Comprehensive bootup diagnostic tests
-  Cisco Call Home
-  Cisco DCNM
-  Active buffer monitoring

Switch Cisco Nexus N3K-C3132C-Z Option

Part number

Description

Chassis

NXA-FAN-30CFM-F

Cisco Nexus fan, forward airflow (port-side exhaust)

NXA-FAN-30CFM-B

Cisco Nexus fan, reversed airflow (port-side intake)

NXA-PAC-650W-PE

Cisco Nexus 650W AC power supply, forward airflow (port-side exhaust)

NXA-PAC-650W-PI

Cisco Nexus 650W AC power supply, reversed airflow (port-side intake)

N9K-PUV-1200W

Cisco Nexus 1200W DC power supply

Software licenses

N3K-LAN1K9

Cisco Nexus 3264 Layer 3 LAN Enterprise license
