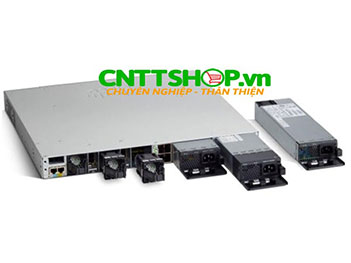

Cisco PWR-C1-715WDC 715W DC Catalyst 3650 3850 9300 Series Spare Platinum-rated Power Supply
Cisco Part Number: PWR-C1-715WDC
Stock: Liên hệ
Tình trạng : Mới
Bảo hành: 12 tháng 1 đổi 1
Mô tả về bộ nguồn switch cisco PWR-C1-715WDC:
Bộ nguồn switch cisco PWR-C1-715WDC được thiết kế để cung cấp nguồn ổn định và hiệu quả cho các dòng switch Cisco catalyst 3650 3850 9300 series. Bộ nguồn switch cisco PWR-C1-715WDC có khả năng hoạt động ổn định 24/7 cung cấp tổng công suất 715W với điệp áp -36V to -72 VDC cho toàn bộ yêu cầu hoạt động của switch Cisco catalyst 3650 3850 9300 series.
Bộ nguồn switch cisco PWR-C1-715WDC được trang bị các tính năng cao cấp như voltage-sensing, auto restart, và Bộ nguồn switch cisco PWR-C1-715WDC được switch Cisco cung cấp thêm các tính năng như: Power supply monitoring, Temperature monitoring, Voltage monitoring, Power on/off, reset sequencing. Điều này giúp cho Bộ nguồn switch cisco PWR-C1-715WDC hoạt động tin cậy và ổn định hơn.
Thông số kỹ thuật Cisco PWR-C1-715WDC Power Supply
| General Information | |
| Power supply rated maximum | 715W |
| Total output BTU (note: 1000 BTU/hr = 293W) |
2440 BTU/hr, 715W |
| Input-voltage range and frequency |
-36V to -72 VDC |
| Input current | 24-12A |
| Output ratings | -56V at 12.8A |
| Output holdup time |
2 ms minimum at -48Vdc |
| Power-supply input receptacles |
Terminal strip |
| Power cord rating | 25A@100VDC |
| Physical specifications |
(H x W x D): 1.58 x 3.25 x 12.20 in Weight: 2.2 lb (1kg) |
| Operating temperature |
Normal operating temperature* and altitudes: - -5°C to +45°C, up to 5000 feet (1500m)
- -5°C to +40°C, up to 10,000 feet (3000m)
* Minimum ambient temperature for cold start is 32°F (0°C) Short-term* exceptional conditions: - -5°C to +50°C, up to 5000 feet (1500m)
- -5°C to +45°C, up to 10,000 feet (3000m)
- -5°C to +45°C, at sea level with single fan failure
* Not more than following in one-year period: 96 consecutive hours, or 360 hours total, or 15 occurrences |
| Storage temperature | -40° to 158°F (-40° to 70°C) |
| Relative humidity operating and nonoperating noncondensing | 5% to 90% noncondensing |
| Altitude | 10,000 ft. (3000 meters), up to 45°C |
| EMI and EMC compliance |
FCC Part 15 (CFR 47) Class A ICES-003 Class A EN 55032 Class A CISPR 32 Class A AS/NZS 3548 Class A BSMI Class A (AC input models only) VCCI Class A EN 55024, EN300386, EN 61000-3-2, EN 61000-3-3 EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6, EN 61000-6-1 |
| LED indicators |
“AC OK”: Input power to the power supply is OK “PS OK”: Output power from the power supply is OK |
Bộ nguồn switch cisco PWR-C1-715WDC được dùng để thay thế nâng cấp cho các loại switch sau của CISCO:
|
Product number |
Description |
| Cisco Catalyst 3650 Series | |
|
24 (16 10/100/1000 and 8 100Mbps/1/2.5/5/10 Gbps) Ethernet and 2x10G Uplink ports, with 715WAC power supply, 1 RU, LAN Base |
|
|
24 (16 10/100/1000 and 8 100Mbps/1/2.5/5/10 Gbps) Ethernet and 2x10G Uplink ports, with 715WAC power supply, 1 RU, IP Base |
|
|
24 (16 10/100/1000 and 8 100Mbps/1/2.5/5/10 Gbps) Ethernet and 2x10G Uplink ports, with 715WAC power supply, 1 RU, IP Services |
|
|
Cisco Catalyst 3850 Series |
|
|
Stackable 24 10/100/1000 Ethernet PoE+ ports, with 715WAC power supply, 1 RU, LAN Base feature set (StackPower cables need to be purchased separately) |
|
|
Stackable 48 10/100/1000 Ethernet PoE+ ports, with 715WAC power supply, 1 RU, LAN Base feature set (StackPower cables need to be purchased separately) |
|
|
Stackable 24 10/100/1000 Ethernet PoE+ ports, with 715WAC power supply 1 RU, IP Base feature set |
|
|
Stackable 48 10/100/1000 Ethernet PoE+ ports, with 715WAC power supply 1 RU, IP Base feature set |
|
|
Stackable 24 10/100/1000 Ethernet PoE+ ports, with 715WAC power supply 1 RU, IP Services feature set |
|
|
Stackable 48 10/100/1000 Ethernet PoE+ ports, with 715WAC power supply 1 RU, IP Services feature set |
|
|
Stackable 24 SFP+ Ethernet ports, with 715WAC power supply 1 RU, IP Base feature set |
|
|
Stackable 24 SFP+ Ethernet ports, with 715WAC power supply 1 RU, IP Services feature set |
|
|
Cisco Catalyst 9300 Series |
|
|
Catalyst 9300 24-port PoE+, Network Essentials |
|
|
Catalyst 9300 24-port PoE+, Network Advantage |
|
|
Catalyst 9300 48-port PoE+, Network Essentials |
|
|
Catalyst 9300 48-port PoE+, Network Advantage |
|
