| Product |
Description |

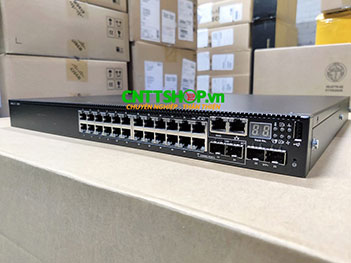

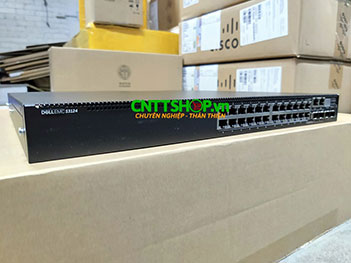

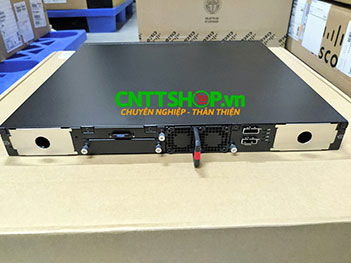

| S3124 |
- 24x RJ45 10/100/1000Mb auto-sensing ports, 2x SFP+ ports, 2x GbE combo media ports, 1x hot swap expansion module bay, 1x 200W PSU included
|
| Performance |
|
MAC addresses
|
56K (80K in L2 scaled mode)
|
|
Static routes
|
16K (IPv4)/8K (IPv6)
|
|
Dynamic routes
|
16K (IPv4)/8K (IPv6)
|
|
Switch fabric capacity
|
212Gbps
|
|
Forwarding rate
|
158Mpps
|
|
Link aggregation
|
16 links per group, 128 groups
|
|
Priority queues per port
|
8
|
|
Line-rate Layer 2 switching
|
All (non-blocking)
|
|
Line-rate Layer 3 routing
|
All (non-blocking)
|
|
Flash memory
|
1G
|
|
Packet buffer memory
|
4MB
|
| CPU memory |
2GB DDR3 |
| Layer 2 VLANs |
4K |
| MSTP |
64 instances |
| VRF-lite |
511 instances |
| Line-rate Layer 2 switching |
All protocols, including IPv4 and IPv6 |
| Line-rate Layer 3 routing |
IPv4 and IPv6 |
| IPv4 host table size |
22K (42K in L3 scaled hosts mode) |
| IPv6 host table size |
16K (both global + Link Local) (32K in L3 scaled hosts mode) |
| IPv4 Multicast table size |
8K |
| LAG load balancing |
Based on Layer 2, IPv4 or IPv6 headers |
| Chassis |
| Modules (optional) |
- 2-port 10GBASE-T RJ-45 hot swappable uplink module
- 2-port 10GbE SFP+ hot swappable uplink module
|
| Power supplies |
200W AC hot swappable with V-Lock, adds redundancy to non-PoE switches |
| Optics (optional) |
- Transceiver, SFP, 100BASE-FX, 1310nm wavelength, up to 2km reach
- Transceiver, SFP, 1000BASE-T
- Transceiver, SFP, 1000BASE-SX, 850nm wavelength, up to 550m reach
- Transceiver, SFP, 1000BASE-LX, 1310nm wavelength, up to 10km reach
- Transceiver, SFP, 1000BASE-ZX, 1550nm wavelength, up to 80km reach
- Transceiver, SFP+, 10GbE, LRM, 1310nm wavelength, up to 220m reach
- Transceiver, SFP+, 10GbE, SR, 850nm wavelength, up to 300m reach
- Transceiver, SFP+, 10GbE, LR, 1310nm wavelength, up to 10km reach
- Transceiver, SFP+, 10GbE, ER, 1550nm wavelength, up to 40km reach
|
| Cables (optional) |
- Stacking cable 0.25m, 1m and 3m
- Dell Networking cable, SFP+ to SFP+, 10GbE, copper twinax direct attach cable, 0.5m, 1m, 3m, 5m and 7m
|
| Size (1RU) |
1.7126in x 17.0866in x 16.0236in (43.5mm x 434.0mm x 407.0mm) (H x W x D) |
| Weight |
6kg |
