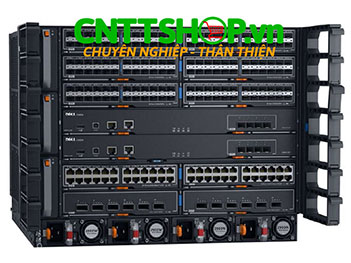

C9010 Dell Networking C9000 Series

Hardware

• Up to 240 line-rate1 1/10GBASE-T ports
• Up to 248 line-rate1 1/10GbE SFP+ ports
• Up to 60 line-rate1 40GbE QSFP+ ports
• 3 fan modules
• 4 2,900W power supplies
• Up to 2 RPMs
• 1 RJ45 console/management port with RS232 signaling and 1 USB-B port (per RPM)
• Size: 8 RU, 13.9”h x 17.4” w x 18.0” d (35.26 cm h x 44.20 cm w x 45.70 cm d)
• Weight: 55.4 lbs (25.2 kg) empty, 151.3 to 165.3 lbs (68.8 to 75.1 kg) fully loaded, depending on line cards installed

Environmental Operating Conditions

• Max. operating specifications:
  • Operating temperature: 32° to 113°F (0° to 45°C)
  • Operating humidity: 5 to 85% (RH), noncondensing
  • Operating altitude: 0ft to 10,000ft above sea level
• Max. non-operating specifications:
  • Storage temperature: –40° to 158°F (–40° to 70°C)
  • Storage humidity: 5 to 95% (RH), non-condensing

Performance

• MAC addresses: 160K
• IPv4 routes: 128K in scaled mode (16K in default mode)
• IPv6 routes: 32K (shared CAM space with IPv4)
• RPM switch fabric capacity: 2.56Tbps (full-duplex), 1.28Tbps (half-duplex)
• RPM throughput: 1,462 Mpps
• Line Card switch fabric capacity: 1.44Tbps (fullduplex), 720Gbps (half-duplex)
• Line Card throughput: 714 Mpps
• Link aggregation: 16 links per group, 128 groups per stack
• Queues per port: 8 queues
• Layer 2 VLANs: 4K
• MSTP : 64 instances
• VRF-lite: 32 instances (64 in future release)
• Line-rate Layer 2 switching: all protocols, including IPv4 and IPv6
• Line-rate Layer 3 routing: IPv4 and IPv6
• IPv4 host table size 32K
• IPv6 host table size 16K
• IPv4 Multicast table size 4K
• LAG load balancing: based on Layer 2, IPv4 or IPv6 headers

Redundant RPM

• C9000 RPM 2.56T, Redundant RP

Line cards

• C9000 24-port 10GbE 10GBASE-T Line Card
• C9000 24-port 10GbE SFP+ Line Card
• C9000 6-port 40GbE QSFP+ Line Card

Redundant power supplies

• C9000 2,900W Power Supply

Fans

Power

• Nominal Input Voltage: 100/120 VAC 50/60 Hz and 200/240 VAC 50/60 Hz
• Max input current per power supply @ 1,450W (100/120V): 16A at 100V, 14A at 120V
• Max input current per power supply @ 2,900W (200/240V): 16A at 200V, 14A at 240V
• Max system power input (using 4 power supplies): 2,950 VA
• Max. power consumption: 2,950W
• Max. thermal output: 10,066 BTU/hr
• Typ. power consumption: 1410-2400 Watts fully loaded, depending on line cards installed

Regulatory

• Safety
  • UL/CSA 60950-1, Second Edition
  • EN 60950-1, Second Edition
  • IEC 60950-1, Second Edition Including All
  • National Deviations and Group Differences
  • EN 60825-1 Safety of Laser Products
  • Part 1: Equipment Classification Requirements and User’s Guide
  • EN 60825-2 Safety of Laser Products
  • Part 2: Safety of Optical Fibre Communication Systems
  • FDA Regulation 21 CFR 1040.10 and 1040.11
• Emissions
  • Australia/New Zealand: AS/NZS CISPR 22: Class A
  • Canada: ICES-003, Issue-4, Class A
  • Europe: EN 55022: (CISPR 22:), Class A
  • Japan: VCCI Class A
  • USA: FCC CFR 47 Part 15, Subpart B: Class A
• Immunity
  • EN 300 386 EMC for Network Equipment
  • EN 55024
  • EN 61000-3-2: Harmonic Current Emissions
  • EN 61000-3-3: Voltage Fluctuations and Flicker
  • EN 61000-4-2: ESD
  • EN 61000-4-3: Radiated Immunity
  • EN 61000-4-4: EFT
  • EN 61000-4-5: Surge
  • EN 61000-4-6: Low Frequency Conducted Immunity
