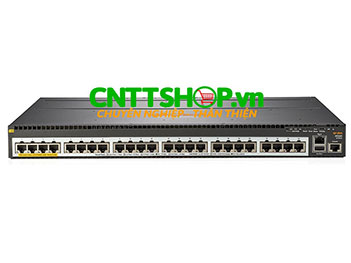

Switch Aruba R0M68A 2930M 24 HPE Smart Rate PoE Class 6 1-slot

• 24 Autosensing 1/2.5/5GBaseT PoE Class 6 ports

• 1 Dual Personality (RJ-45 or USB Micro-B) serial console port

• 1 USB B port for uploading/ downloading files

• 1 100BASE-T Out of Band Management Port

• 1 Uplink Slot

• 1 Stacking Module Slot

• 2 Power Supply Slots (power supplies not included)

Dimensions: 1.73” (Height) x 17.42” (Width) x 12.77” (Depth) (4.39cm x 44.25cm x 32.43cm)

Weight: 9.96 lbs 4.52 kg

Dual Core ARM Cortex A9 @ 1016 MHz

1 GB DDR3 SDRAM

Packet Buffer Size: 12.38MB and 4.5MB Ingress/7.875MB Egress

4GB eMMC

• 1000 Mbps Latency < 6.5 µs (FIFO 64-byte packets)
• 10Gbps Latency < 4.2 µs (FIFO 64-byte packets)
• Throughput < 3.4 µs (FIFO 64-byte packets)
• Stacking Performance: 112 Mpps
• Switching Capacity: 100 Gbps
• Switching Capacity (including Stacking): 320 Gbps
• Routing table Size: 2,000 IPv4, 1,000 IPv6 in hardware, 200 OSPF, 256 Static, 10,000 RIP
• Mac Address Table Size: 32,768

• Operating temperature: 32°F to 113°F (0°C to 45°C) up to 5000ft, 32°F to 104°F (0°C to 40°C). Derate -1 degree C for every 1000 ft from 5000 ft to 10000 ft
• Operating relative humidity: 15% to 95% (Non-condensing) 10,000 ft
• Nonoperating/Storage temperature: -40°C to +70°C up to 15000 ft
• Nonoperating/Storage relative humidity: 90% at 65C (non-condensing); 15,000 ft
• Acoustic (power and pressure) in decibals: Sound Power LWaD=4.9 Bel, Sound Pressure LpAm, Bystander = 31.6 dB
• Airflow direction: Port to Power

• Frequency: 50/60 Hz
• Maximum Heat Dissipation: 522 BTU/hr, 551 kJ/hr
• Voltage
  • JL086A PSU: 100-127/200-240 VAC
  • JL087A PSU: 110-127/200-240 VAC
• Current
  • JL086A PSU (each): 5.4A/2.7A
  • JL087A PSU (each):  9.2A/4.6A
• Maximum power rating
  • JL086A PSU (each): 513W
  • JL087A PSU (each): 873W
• Idle Power: 101W
• PoE Power (Max Possible): 1440W
• Hibernate Power: 27W
• Notes
  • Heat dissipation does not include heat dissipated by the PoE-powered devices themselves.
  • Idle power is the actual power consumption of the device with no ports connected.
  • Maximum power rating and maximum heat dissipation are the worst case theoretical maximum numbers provide for planning the infrastructure with
  • 100% traffic, all ports plugged in, and all modules populated

• UL 60950-1, 2nd Edition
• EN 60950-1:2006 +A11:2009 : A1:2010 +A12:2011 +A2:2013
• IEC60950-1:2005 +A1:2009 +A2:2013
• IEC62368-1:2014, 2nd Edition
• CSA 22.2 No. 60950-1-07, 2nd Edition
• EN60825-1:2007/IEC 60825-1:2007 Class 1

• EN 55032:2015/CISPR32:2015 Class A
• CNS 13438: 2006 Class A
• VCCI Class A
• FCC Title 47 CFR, Part 15, Class A
• ICES-003 Class A

• Aruba Central
• Aruba AirWave Network Management
• IMC-Intelligent Management Center
• Command-line interface
• Web browser
• Configuration menu
• REST interface
• SNMP manager
• Telnet
• RMON1
• FTP
• Out-of-band management
• Serial RS-232C
• Micro USB Serial
