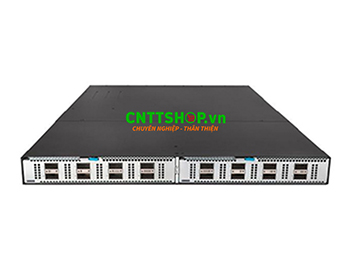

| Datasheet LS-6850-2C |
| Hardware Specification |
| Dimensions (H × W × D) |
44.2 × 440 × 660 mm (1.74 × 17.32 × 18.11 in) |
| Weight |
≤ 16 kg (35.27 lb) |
| Serial console port |
1 |
| Out-of-band management port |
One GE copper port and one GE fiber port |
| Mini USB console port |
1 |
| USB port |
1 |
| QSFP28 port |
2 |
| SFP28 port |
- |
| SFP port |
- |
| Expansion slot |
2 |
| CPU |
2.2GHz@4Core |
| Flash/SDRAM |
4GB/8GB |
| Latency |
<1μs |
| Switching capacity |
3.6 Tbps |
| Forwarding capacity |
2024 Mpps |
| Buffer(Byte) |
32M |
| AC-input voltage |
90v AC to 290v AC |
| DC-input voltage |
–36v DC to –72v DC |
| Power module slot |
2 |
| Fan tray slot |
5 Hot-swappable fan, fan speed adjustable and wind invertible |
| Air flow direction |
Front to rear or rear to front |
| Static power consumption |
Single AC: 136 W
Dual AC: 148 W
Single DC: 132 W
Dual DC: 146 W
|
| Typical power consumption |
Single AC: 273 W ( with LSWM18CQ)
Dual AC: 282 W( with LSWM18CQ)
Single DC: 268 W( with LSWM18CQ)
Dual DC: 275 W( with LSWM18CQ) |
|
Maximum heat consumption (BTU/hour)
|
Single AC:932 ( with LSWM18CQ)
Dual AC:963( with LSWM18CQ)
Single DC:915( with LSWM18CQ)
Dual DC: 939( with LSWM18CQ)
|
| MTBF(years) |
34 |
| MTTR(hour) |
1 |
| Operating temperature |
0°C to 45°C (32°F to 113°F) |
| Operating humidity |
5% to 95%, noncondensing |
| Software Specification |
| Device Virtualization |
IRF2.0, M-LAG(DRNI), S-MLAG |
| Network Virtualization |
BGP-EVPN, VxLAN, EVPN ES |
| VxLAN |
L2 VxLAN gateway
L3 VxLAN gateway
Distributed VxLAN gateway
Centralized VxLAN gateway
EVPN VxLAN
manual configured VxLAN
IPv4 VxLAN tunnel
IPv6 VxLAN tunnel
QinQ VxLAN access
|
| SDN |
H3C SeerEngine-DC |
| Lossless network |
PFC and ECN
DCBX
RDMA and ROCE
PFC deadlock watchdog
ECN overlay
ROCE stream analysis
|
| Programmability |
Openflow1.3
Netconf
Ansible
Python//TCL/Restful API to realize DevOps automated operation and maintenance
|
| Traffic analysis |
Sflow |
| VLAN |
Port-based VLANs
Mac-based VLAN ,Subnet-based VLAN and Protocol VLAN
VLAN mapping
QinQ
MVRP(Multiple VLAN Registration Protocol)
Super VLAN
PVLAN
|
| MAC address |
Dynamic learning and aging of mac address entries
Dynamic,static and blackhole entries
Mac address limiting on ports
|
| IPv4 routing |
RIP(Routing Information Protocol) v1/2
OSPF (Open Shortest Path First) v1/v2
ISIS(Intermediate System to Intermediate system)
BGP (Border Gateway Protocol)
Routing policy
VRRP
PBR
|
| IPv6 routing |
RIPng
OSPFv3
IPv6 ISIS
BGP4+
Routing policy
VRRP
PBR
|
| MPLS/VPLS |
Support L3 MPLS VPN
Support L2 VPN: VLL (Martini, Kompella)
Support VPLS, VLL
Support hierarchical VPLS and QinQ+VPLS access
Support P/PE function
Support LDP protocol
Support MCE
Support MPLS OAM
|
| Multicast |
IGMP snooping
MLD snooping
IPv4 and IPv6 multicast VLAN
IPv4 and IPv6 PIM snooping
IGMP and MLD
PIM and IPv6 PIM
MSDP
Multicast VPN
|
| Reliability |
LACP
STP/RSTP/MSTP protocol, PVST compatible
STP Root Guard and BPDU Guard
RRPP and ERPS
Ethernet OAM
|
| Reliability |
Smartlink
DLDP
BFD for OSPF/OSPFv3, BGP/BGP4, IS-IS/IS-ISv6, PIM/IPM for IPv6 and Static route
VRRP and VRRPE
|
| QOS |
Weighted Random Early Detection (WRED) and tail drop
Flexible queue scheduling algorithms based on port and queue, including strict priority (SP), Weighted Deficit Round Robin (WDRR), Weighted Fair Queuing (WFQ), SP + WDRR, and SP + WFQ.
Traffic shaping
Packet filtering at L2 (Layer 2) through L4 (Layer 4); flow classification based on source MAC address, destination MAC address, source IP (IPv4/IPv6) address, destination IP (IPv4/IPv6) address, port, protocol, and VLAN to apply qos policy,including mirroring,redirection,priority remark etc.
Committed access rate (CAR)
Account by packet and byte
COPP
|
| FCOE |
FCOE |
| Telemetry |
gRPC
ERSPAN
Mirror on drop
Telemetry Stream
INT
iNQA
Packet trace, Packet capture
|
| Configuration and maintenance |
Console telnet and SSH terminals
SNMPv1/v2/v3
ZTP
System log
File upload and download via FTP/TFTP, BootRom update and remote update
NQA
ping,tracert
VxLAN ping and VxLAN tracert
NTP
PTP(1588v2)
GIR Graceful Insertion and Removal
|
| Security and management |
Micro-Segmentation
Hierarchical management and password protection of users
Authentication methods, including AAA,RADIUS and HWTACACS
Support DDos, ARP attack and ICMP attack function
IP-MAC-port binding and IP Source Guard
SSH 2.0
HTTPS
SSL
PKI
Boot ROM access control (password recovery)
RMON
|
| EMC |
FCC Part 15 Subpart B CLASS A
ICES-003 CLASS A
VCCI CLASS A
CISPR 32 CLASS A
EN 55032 CLASS A
AS/NZS CISPR32 CLASS A
CISPR 24
EN 55024
EN 61000-3-2
EN 61000-3-3
ETSI EN 300 386
GB/T 9254
YD/T 993
|
| IEEE Standard |
802.3x/802.3ad/802.3AH/802.1P/802.1Q/802.1X/802.1D/802.1w/802.1s/802.1AG
802.1x/802.1Qbb/802.1az/802.1Qaz
|
| Safety |
UL 60950-1
CAN/CSA C22.2 No 60950-1
IEC 60950-1
EN 60950-1
AS/NZS 60950-1
FDA 21 CFR Subchapter J
GB 4943.1
|
| Performance and scalability |
| Virtualization |
- IRF2.0 stack (9)
- M-LAG device number (2)
- ED group (8)
|
| ACL |
- max number of ingress ACL(18K/pipe, total 2 pipes)
- max number of ingress Car (2304/pipe, total 2 pipes)
- max number of ingress Counter (10752/pipe, total 2 pipes)
- max number of egress ACL (2048)
- max number of egress Car (1k)
- max number of egress Counter (1k)
|
| Forwarding table |
- Jumbo frame length(byte) (9416)
- Mirroring group (4)
- PBR policy (1000)
- PBR node (256)
- max number of MAC per switch (288k max)
- max number of ARP entries IPv4 (272k max)
- max ND table size for IPv6 (136k max)
- IPv4 FIB (324k max)
- IPv6 FIB (162k max)
- IPv4 l2 multicast group (4000)
- IPv4 l3 multicast group (4000)
- IPv4 multicast routing (16k)
- IPv6 l2 multicast group (4000)
- IPv6 l3 multicast group (4000)
- IPv6 multicast routing (8k)
- LAG group (1024)
- LAG member per group (256)
- ECMP group (max 4k)
- ECMP member per group (2-128)
- VRF (4095)
|
| Interface |
- Loopback interface number (1k)
- L3 sub interface number (2500)
- SVI interface number (2k)
- VxLAN AC number (16k)
- VxLAN VSI number (16k)
- VxLAN tunnel number (2k)
- VSI interface number (8k)
- IPv4 tunnel number (2k)
- IPv6 tunnel number (2k)
- VLAN number (4094)
|
| Performance |
- RIB (1M)
- MSTP instance (64)
- PVST instance (510)
- PVST logical port number (2000)
- VRRP VRID (255)
- VRRP group (256)
- NQA group (32)
|
| Static table |
- static mac-address (4000)
- static multicast mac-address (1k)
- static ARP (1k)
- static ND (4k)
- static IPv4 routing table (2k)
- static IPv6 routing table (4000)
|
