| Description |
Specification |
| Configurations |
| Ports |
4x Fast Ethernet Copper Downlink
1x Fast Ethernet Copper Uplink
|
| Performance |
| Maximum Switching Bandwidth |
5.6Gbps |
| Maximum Forwarding Bandwidth |
2.8Gbps |
| Hardware |
DRAM: 128 MB DDR2 without ECC
Onboard flash memory: 160 MB
|
| Alarm |
Alarm I/O: output connector on top panel of 4P2S and 8P2S, 1.0A@24VDC or 0.5A@48VDC |
| Software features |
LLDP, Cisco CDP aware, MSTP, STP Portfast, ICMP Vlans, static IP, Trust Ingress DSCP, COS, Priority Port, port - security, IGMP querier, DHCP server SNMP v2/v3, SNMP traps, syslog, IGMP snooping, DHCP snooping, BPDU guard, Etherchannel, Alarms, PoE capability, Smartport Macro, SPAN/Port Mirroring, Strom Control, EtherNet/IP (EDS) |
| Safety Certifications |
UL/CSA 60950-1
EN 60950-1
CB to IEC 60950-1 (with country deviations)
NOM to NOM-019-SCF1 (through partners and distributors)
UL/CSA/IEC/EN 61010-2-201
CE Marking
|
| Hazardous Locations |
ANSI/ISA 12.12.01 (Class1, Div2 A-D)*
EN 60079-0, -15 ATEX certificate (Class 1, Zone2 A-D)*
IEC 60079-0, 15 (report only)*
UL 60079-0, 15*
CAN/CSA C22.2 No. 60079-0, -15*
* Cabinet enclosure required
|
| EMC Emissions and Immunity Compliance |
FCC 47 CFR Part 15 Class A
EN 55022/CISPR 22 Class A
EN 55016-1-1, -1-4, -2-3 Class AVCCI Class A
RoHS compliance
AS/NZS CISPR 22 Class A, AS/NZS CISPR 24
CISPR11 Class A, CISPR22 Class A
ICES 003 Class A
KCC Marking (Korea)
CE Marking
RCM Marking (Australia/New Zealand)
EAC Marking (Eurasian Conformity)
Anatel (Brazil)
China NAL
IEC/EN/EN61000-4-2 (Electro Static Discharge), 8kV air/6kV contact
IEC/EN 61000-4-3 (Radiated Immunity, 10 V/m 80-2000MHz, 3V/m 2000-2700MHz)
IEC/EN 61000-4-4 (Fast Transients - 2kV DC power, 2kV data line, 4kv earth)
IEC/EN 61000-4-5 (Surge 2 kV/1 kV DC power, 2 kV shielded and unshielded data line)
IEC/EN 61000-4-6 (Conducted Immunity, 10 V/emf 0.15-80MHz)
IEC/EN 61000-4-8 (Power Frequency Magnetic Field Immunity 30A/m 60 sec, 300A/m 3 sec)
IEC/EN 61000-4-9 (Pulse Magnetic Field Immunity 300A/m)
IEC/EN 61000-4-29 (Voltage Dips Immunity)
|
| Industry Standard |
IEC/EN 61000-6-1 (Immunity for Light Industrial Environments)
IEC/EN 61000-6-2 (Immunity for Industrial Environments)
IEC/EN 61000-6-4 (Emissions for Industrial Environments)
EN 61131-2 (PLC Zone A & B, EMC/EMI, environmental, mechanical)
EN61326-1 (Industrial Controls)
Marine –TAC (Temp-A, Humid-B, Vib-A, EMC-A, Enc-A)
EN 50581 (RoHS)
China RoHS
EU WEEE
NEMA TS-2 (EMC, environmental, mechanical)
IP30
|
| Humidity |
IEC 60068 -2-3
IEC 60068-2-30 (Test Db)
Relative humidity: 5% to 95% non-condensing
|
| Operating Temperature |
-20 C to 70 C (vented enclosure operating)
-20 C to 60 C (sealed enclosure operating)
-16 C to 75 C (fan or blower-equipped enclosure operating)
Operational altitude: Up to 13.8k ft
IEC 60068-2-1IEC
60068-2-2 © 2020
IEC 60068-2-56
-40 C to +85 C (storage temperat
IEC 60068-2-56
-40 C to +85 C (storage temperature)
IEC 60068-2-14 (Test Nb)
Storage altitude: Up to 15,000 ft
|
| Mean Time Between Failure (MTBF) |
Meantime between failure: 374,052 hours (42.7 years) |
| Power consumption |
4.2W |
| Connectors and cabling |
100BASE-FX MMF (2 km)—TBD with engineer input
10/100/1000BASE-T ports: RJ-45 connectors, 4-pair Category 5 UTP cabling
|
| Dimensions (H x W x D) including DIN rail |
5.0” H x 1.50” W x 4.5” D (127mm H x 38mm W x 115mm D) |
| Weight |
1.10 lb (0.50 kg) |
Switch
.png){kind=icon}
.png){kind=logo}
.jpg)
.png){kind=logo}

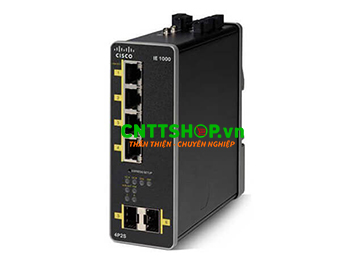

Bạn đang cần tư vấn về sản phẩm: IE-1000-4T1T-LM ?
Siwtch có bộ nhớ DRAM là 128 MB DDR2 không có ECC và flash memory là 160 MB ạ
Mã switch công nghiệp Cisco này có không hỗ trợ PoE, Anh vui lòng để lại liên hệ để được tư vấn tốt nhất ạ
Báo giá switch công nghiệp Cisco đã được gửi vào mail, anh vui lòng check mail ạ
Switch công nghiệp Cisco này có hỗ trợ nguồn DC ạ, anh vui long để lại liên hệ để được tư vấn tốt nhất ạ
Anh có thể cấu hình và quản trị mã switch công nghiệp của Cisco này bằng giao diện Web GUI hoặc dòng lệnh CLI ạ
